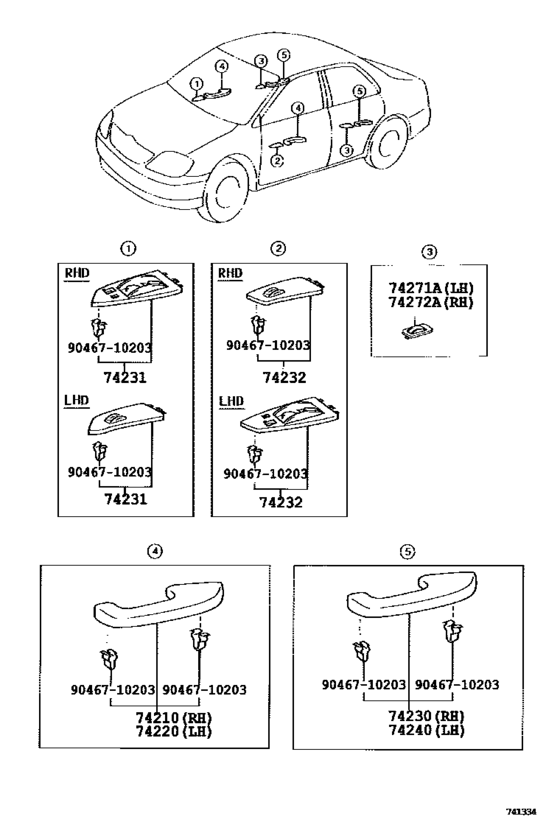

Armrest & Visor ([05.2004 - ] ARMREST W(POWER WINDOW) (0405- )JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74210
|
74210
74210-12251-B1
Armrest Assy, Front, Rh
[09.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
74210-12251-B1 |
— | ||
|
74220
|
74220
74220-12191-B1
Armrest Assy, Front, Lh
[09.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
74220-12191-B1 |
— | ||
|
74230
|
74230
74210-12251-B1
Armrest Assy, Front, Rh
[09.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
74210-12251-B1 |
— | ||
|
74231
|
74231
74231-02300-B0
Panel, Front Armrest Base, Upper Rh
[05.2004 -] NDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY);W(POWER WINDOW = FRONT & REAR),DK.GRAY,TRIM1# |
74231-02300-B0 |
— | ||
|
74231
|
74231
74231-02310-B0
Panel, Front Armrest Base, Upper Rh
[05.2004 -] NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
74231-02310-B0 |
— | ||
|
74232
|
74232
74232-02290-B0
Panel, Front Armrest Base, Upper Lh
[05.2004 -] NDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
74232-02290-B0 |
— | ||
|
74232
|
74232
74232-02310-B0
Panel, Front Armrest Base, Upper Lh
[05.2004 -] NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
74232-02310-B0 |
— | ||
|
74232
|
74232
74232-02480-B0
Panel, Front Armrest Base, Upper Lh
[05.2004 -] NDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT & REAR),DK.GRAY,TRIM1# |
74232-02480-B0 |
— | ||
|
74240
|
74240
74220-12191-B1
Armrest Assy, Front, Lh
[09.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
74220-12191-B1 |
— | ||
|
74271A
|
74271A
84656-02130-B1
Panel, Rear Door Armrest Base, Upper Rh
[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
84656-02130-B1 |
— | ||
|
74272A
|
74272A
84656-02130-B1
Panel, Rear Door Armrest Base, Upper Rh
[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
84656-02130-B1 |
— | ||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
