Component List COROLLA
Floor Pan & Lower Back Panel ([10.2001 - ] (0110- )JPP..SED)

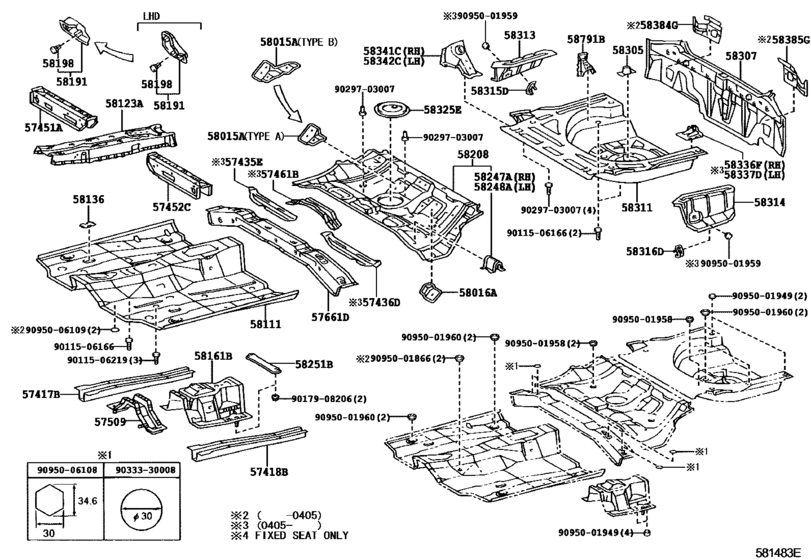

Floor Pan & Lower Back Panel ([10.2001 - ] (0110- )JPP..SED) Diagram Toyota COROLLA

Year: 2004 - 2006

Sales region: Europe
Frame: NDE120
grade: TERRA
body: SED
ENGINE: 1NDTV
TRANSMISSION: MTM
PRODUCT: JPP
Model: COROLLA(NAP/SED/CP/HB/LB/WG)
From: 08.2004
To: 10.2006
Gear Shift Type: 5F
Vehicle Model: Corolla SED/WG
Driver's Position: LHD
Fuel Induction: DCR

Difficulties in parts search?

Parts list Diagram

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
57417B	57417B 57417-13020 Reinforcement, Front Floor Under [05.2004 -] NDE120,ZZE12#..JPP	57417-13020	US $47.76
57418B	57418B 57418-13020 Reinforcement, Front Floor Under [05.2004 -] NDE120,ZZE12#..JPP	57418-13020	US $47.76
57435E	57435E 57435-12010 Member, Center Floor Side, Rh [05.2004 -] NDE120,ZZE12#..JPP	57435-12010	US $30.28
57436D	57436D 57436-12010 Member, Center Floor Side, Lh [05.2004 -] NDE120,ZZE12#..JPP	57436-12010	US $30.28
57451A	57451A 57051-12020 Member, Front Floor Cross, Rh [05.2004 -] NDE120,ZZE12#..JPP	57051-12020	US $65.81
57452C	57452C 57452-13070 Member, Front Floor Cross, Lh FRONT FLOOR CROSS, LH [05.2004 -] NDE120,ZZE12#..JPP	57452-13070	US $64.65
57461B	57461B 57461-12130 Member Sub-Assy, Center Floor Cross, No.1 [05.2004 -] NDE120,ZZE12#..JPP	57461-12130	US $17.76
57509	57509 57509-12050 Reinforcement Sub-Assy, Front Floor, Center FRONT FLOOR, CENTER [05.2004 -] NDE120,ZZE12#..JPP	57509-12050	US $80.08
57661D	57661D 57661-12010 Member, Rear Floor Cross, Front [05.2004 -] NDE120,ZZE12#..JPP	57661-12010	US $180.54
58015A	58015A 58015-12060 Reinforce Sub-Assy, Belt Anchor, No.3 Rh [05.2004 -] NDE120,ZZE12#..JPP..TERRA TYPE A:REFER TO ILLUSTRATION	58015-12060	US $28.39
58015A	58015A 58015-12070 Reinforce Sub-Assy, Belt Anchor, No.3 Rh [05.2004 -] NDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION	58015-12070	US $23.30
58016A	58016A 58016-32050 Reinforce Sub-Assy, Belt Anchor, No.3 Lh [05.2004 -] NDE120,ZZE12#..JPP	58016-32050	US $28.39
58111	58111 58111-13902 Pan, Front Floor FRONT FLOOR [05.2004 -] NDE120,ZZE12#..JPP	58111-13902	US $559.10
58123A	58123A 58013-12040 Support, Shift & Select Lever [05.2004 -] NDE120,ZZE12#..JPP	58013-12040	US $116.48
58136	58136 58136-33010 Cover, Front Floor Hole [05.2004 -] NDE120,ZZE12#..JPP	58136-33010	US $3.06
58161B	58161B 57805-13060 Reinforcement, Belt Anchor To Floor Pan BELT ANCHOR TO FLOOR PAN [05.2004 -] NDE120,ZZE12#..JPP..LHD	57805-13060	US $144.14
58191	58191 58192-12070 Footrest, Front Floor FRONT FLOOR [05.2004 -] NDE120,ZZE12#..JPP..LHD	58192-12070	US $40.81
58198	58198 90467-09220 Clip, Footrest [06.2004 -] NDE120,ZZE12#..JPP	90467-09220	US $1.92
58208	58208 58211-12920 Pan, Center Floor CENTER FLOOR [05.2004 -] NDE120,ZZE12#..JPP..TERRA W(FIXED TYPE REAR SEAT )	58211-12920	US $314.50
58208	58208 58211-12921 Pan, Center Floor CENTER FLOOR [05.2004 -] NDE120,ZZE12#..JPP W(6:4 SPRIT REAR SEAT)	58211-12921	US $314.50
58247A	58247A 58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh [05.2004 -] NDE120,ZZE12#..JPP	58247-12070	US $10.92
58248A	58248A 58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh [05.2004 -] NDE120,ZZE12#..JPP	58247-12070	US $10.92
58251B	58251B 58251-12030 Brace, Floor Panel, Front [05.2004 -] NDE120,ZZE12#..JPP	58251-12030	US $11.65
58305	58305 58351-33010 Bracket Sub-Assy, Spare Wheel Clamp [05.2004 -] NDE120,ZZE12#..JPP	58351-33010	US $6.56
58307	58307 58307-12A00 Panel Sub-Assy, Body Lower Back BODY LOWER BACK [05.2004 -] NDE120,ZZE12#..JPP	58307-12A00	US $267.90
58311	58311 58311-12270 Pan, Rear Floor [05.2004 -] NDE120,ZZE12#..JPP	58311-12270	from US $360.32
58313	58313 58313-12290 Panel, Rear Floor Side, Rh [05.2004 -] NDE120,ZZE12#..JPP	58313-12290	US $40.19
58314	58314 58314-12290 Panel, Rear Floor Side, Lh [05.2004 -] NDE120,ZZE12#..JPP	58314-12290	—
58315D	58315D 58315-12080 Extension, Rear Floor Pan, Rh REAR FLOOR PAN, RH [05.2004 -] NDE120,ZZE12#..JPP	58315-12080	US $6.26
58316D	58316D 58316-12080 Extension, Rear Floor Pan, Lh REAR FLOOR PAN, LH [05.2004 -] NDE120,ZZE12#..JPP	58316-12080	US $8.59
58325E	58325E 58325-12110 Cover, Rear Floor Service Hole [05.2004 -] NDE120,ZZE12#..JPP	58325-12110	US $16.07
58336F	58336F 58336-12080 Reinforcement, Rear Floor Pan, Rh REAR FLOOR PAN, RH [05.2004 -] NDE120,ZZE12#..JPP	58336-12080	US $22.42
58337D	58337D 58337-12030 Reinforcement, Rear Floor Pan, Lh REAR FLOOR PAN, LH [05.2004 -] NDE120,ZZE12#..JPP	58337-12030	US $22.42
58341C	58341C 58341-12020 Bracket, Rear Absorber Mounting, No.1 Rh [05.2004 -] NDE120,ZZE12#..JPP	58341-12020	US $47.17
58342C	58342C 58342-12020 Bracket, Rear Absorber Mounting, No.1 Lh [05.2004 -] NDE120,ZZE12#..JPP	58342-12020	US $47.17
58791B	58791B 58791-12200 Carrier, Jack [05.2004 -] NDE120,ZZE12#..JPP	58791-12200	from US $13.25
9011506166	9011506166 90115-06166 Bolt, Weld(For Front Floor Pan)	90115-06166	from US $0.98
9011506219	9011506219 90115-06219 Bolt, Weld(For Front Floor Pan, Lh)	90115-06219	US $1.28
9017908206	9017908206 90179-08206 Nut(For Front Suspension Support)	90179-08206	from US $0.86
9029703007	9029703007 90297-03007 Retainer, Rear Heater Mounting	90297-03007	US $0.73
9033330008	9033330008 90333-30008 PLUG PLATE	90333-30008	from US $1.12
9095001866	9095001866 90950-01866 Plug, Hole(For Front Door Panel)	90950-01866	from US $1.92
9095001949	9095001949 90950-01949 PLUG HOLE	90950-01949	US $1.60
9095001958	9095001958 90950-01958 Plug, Hole(For Back Door Panel)	90950-01958	from US $1.92
9095001959	9095001959 90950-01959 Cover, Console Box Hole	90950-01959	from US $1.92
9095001960	9095001960 90950-01960 Plug, Hole(For Floor Panel)	90950-01960	from US $1.92
9095006108	9095006108 90950-06108 COVER HOLE	90950-06108	from US $0.80
9095006109	9095006109 90950-06109 New Genuine Part	90950-06109	US $1.60

Floor Pan & Lower Back Panel ([10.2001 - ] (0110- )JPP..SED) Diagram Toyota COROLLA Europe 17882210-922264

Floor Pan & Lower Back Panel ([10.2001 - ] (0110- )JPP..SED) Diagram Toyota COROLLA Europe 17882210-922264
