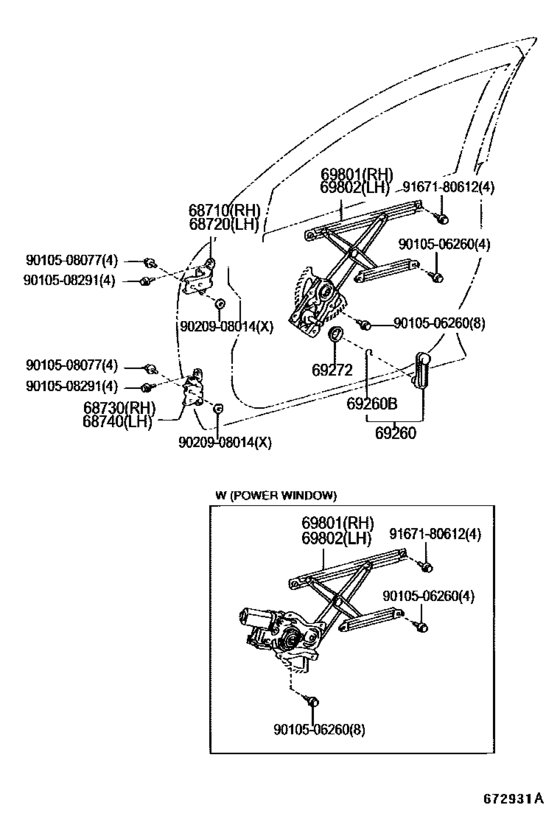

Front Door Window Regulator & Hinge ([05.2004 - ] (0405- )JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12150
Hinge Assy, Front Door, Upper Rh
[05.2004 - 09.2006] NDE120,ZZE12#..JPP |
68710-12150 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[05.2004 - 09.2006] NDE120,ZZE12#..JPP |
68710-12151 |
from US $31.16 |
||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[10.2006 -] NDE120,ZZE12#..JPP |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12150
Hinge Assy, Front Door, Upper Lh
[05.2004 - 09.2006] NDE120,ZZE12#..JPP |
68720-12150 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[05.2004 - 09.2006] NDE120,ZZE12#..JPP |
68720-12151 |
US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[10.2006 -] NDE120,ZZE12#..JPP |
68720-12151 |
US $31.16 |
||
|
68730
|
68730
68730-52010 Hinge Assy, Front Door, Lower Rh[05.2004 -] NDE120,ZZE12#..JPP |
68730-52010 |
from US $31.16 |
||
|
68740
|
68740
68740-52010 Hinge Assy, Front Door, Lower Lh[05.2004 -] NDE120,ZZE12#..JPP |
68740-52010 |
from US $28.72 |
||
|
69260
|
69260
69260-02020-B2 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [05.2004 -] NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
69260-02020-B2 |
US $15 |
||
|
69260B
|
69260B
90080-52100
Ring, Shaft Snap(For Front Door Window Regulator Handle)
[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
90080-52100 |
— | ||
|
69272
|
69272
69268-02022 Plate, Front Door Regulator Inside HandleFRONT DOOR REGULATOR INSIDE HANDLE [05.2004 -] NDE120,ZZE12#..JPP..TERRA |
69268-02022 |
US $1.31 |
||
|
69801
|
69801
69810-02120
Regulator Sub-Assy, Front Door Window, Rh
[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
69810-02120 |
— | ||
|
69801
|
69801
69810-02130
Regulator Sub-Assy, Front Door Window, Rh
[05.2004 -] NDE120,ZZE12#..JPP W(POWER WINDOW) |
69810-02130 |
— | ||
|
69802
|
69802
69820-02120
Regulator Sub-Assy, Front Door Window, Lh
[05.2004 -] NDE120,ZZE12#..JPP..TERRA |
69820-02120 |
— | ||
|
69802
|
69802
69820-02130
Regulator Sub-Assy, Front Door Window, Lh
[05.2004 -] NDE120,ZZE12#..JPP W(POWER WINDOW) |
69820-02130 |
— | ||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.88 |
||
|
9020908014
|
9020908014
90209-08014 WASHER |
90209-08014 |
US $1.92 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
