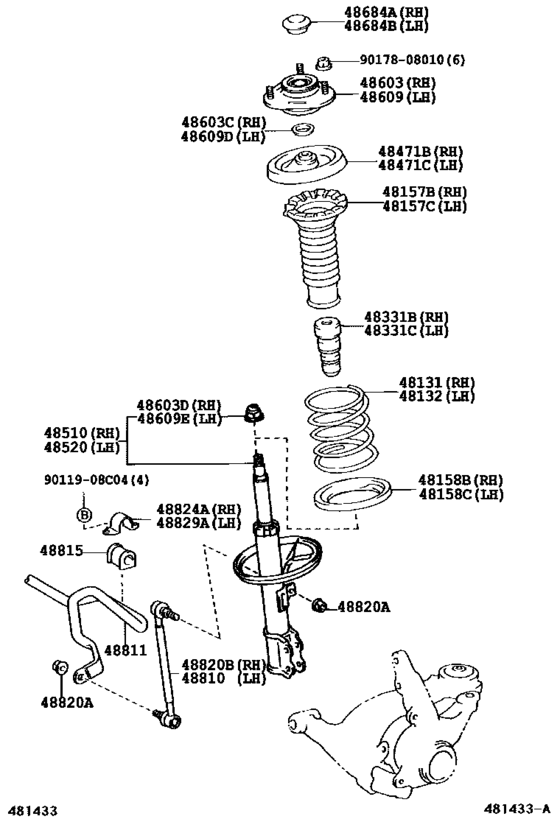

Front Spring & Shock Absorber ([10.2001 - ] (0110- )JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-1N550 Spring, Front Coil, Rh[05.2004 -] NDE120..JPP;ZZE121..JPP..4FC |
48131-1N550 |
US $94.64 |
||
|
48132
|
48132
48131-1N550 Spring, Front Coil, Rh[05.2004 -] NDE120..JPP;ZZE121..JPP..4FC |
48131-1N550 |
US $94.64 |
||
|
48157B
|
48157B
48157-12080 Insulator, Front Coil Spring, Upper[05.2004 -] NDE120,ZZE12#..JPP |
48157-12080 |
from US $16.22 |
||
|
48157C
|
48157C
48157-12080 Insulator, Front Coil Spring, Upper[05.2004 -] NDE120,ZZE12#..JPP |
48157-12080 |
from US $16.22 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2004 -] NDE120,ZZE12#..JPP |
48158-47010 |
from US $10.55 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2004 -] NDE120,ZZE12#..JPP |
48158-47010 |
from US $10.55 |
||
|
48331B
|
48331B
48331-02050 Bumper, Front Spring, Rh[05.2004 -] NDE120,ZZE12#..JPP |
48331-02050 |
from US $11.56 |
||
|
48331C
|
48331C
48331-02050 Bumper, Front Spring, Rh[05.2004 -] NDE120,ZZE12#..JPP |
48331-02050 |
from US $11.56 |
||
|
48471B
|
48471B
48044-12100 Seat, Front Coil Spring, Upper[05.2004 -] NDE120,ZZE12#..JPP |
48044-12100 |
from US $10.74 |
||
|
48471C
|
48471C
48044-12100 Seat, Front Coil Spring, Upper[05.2004 -] NDE120,ZZE12#..JPP |
48044-12100 |
from US $10.74 |
||
|
48510
|
48510
48510-80103
Absorber Assy, Shock, Front Rh
[05.2004 -] NDE120,ZZE12#..JPP MARK 48510-1A530 |
48510-80103 |
— | ||
|
48520
|
48520
48520-80003
Absorber Assy, Shock, Front Lh
[05.2004 -] NDE120,ZZE12#..JPP MARK 48520-1A530 |
48520-80003 |
— | ||
|
48603
|
48603
48609-02130
Support Sub-Assy, Front Suspension, Rh
[05.2004 -] NDE120,ZZE12#..JPP |
48609-02130 |
— | ||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[05.2004 -] NDE120,ZZE12#..JPP |
90303-22002 |
from US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2004 -] NDE120,ZZE12#..JPP |
90179-14015 |
from US $1.09 |
||
|
48609
|
48609
48609-02130
Support Sub-Assy, Front Suspension, Rh
[05.2004 -] NDE120,ZZE12#..JPP |
48609-02130 |
— | ||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[05.2004 -] NDE120,ZZE12#..JPP |
90303-22002 |
from US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2004 -] NDE120,ZZE12#..JPP |
90179-14015 |
from US $1.09 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[05.2004 -] NDE120,ZZE12#..JPP |
48684-52010 |
from US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[05.2004 -] NDE120,ZZE12#..JPP |
48684-52010 |
from US $9.60 |
||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[05.2004 -] NDE120,ZZE12#..JPP |
48820-47010 |
from US $75.74 |
||
|
48811
|
48811
48811-13050 Bar, Stabilizer, Front[05.2004 -] NDE120,ZZE12#..JPP |
48811-13050 |
US $160.16 |
||
|
48815
|
48815
48815-13040 Bush, Front Stabilizer Bar, No.1[05.2004 -] NDE120,ZZE12#..JPP |
48815-13040 |
from US $10.57 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[05.2004 -] NDE120,ZZE12#..JPP |
90179-12151 |
from US $0.94 |
||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[05.2004 -] NDE120,ZZE12#..JPP |
48820-47010 |
from US $75.74 |
||
|
48824A
|
48824A
48824-26210 Bracket, Front Stabilizer, No.1[05.2004 -] NDE120,ZZE12#..JPP |
48824-26210 |
from US $11.76 |
||
|
48829A
|
48829A
48824-26210 Bracket, Front Stabilizer, No.1[05.2004 -] NDE120,ZZE12#..JPP |
48824-26210 |
from US $11.76 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
US $2.24 |
