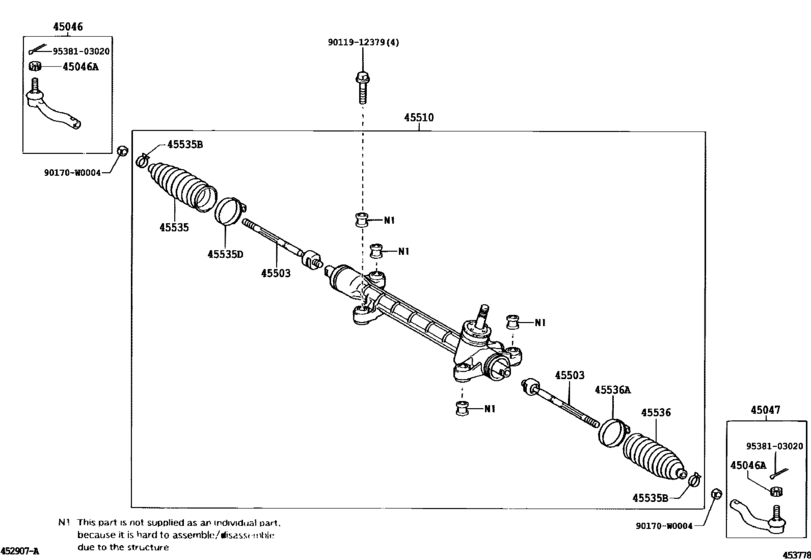

Front Steering Gear & Link ([05.2004 - ] (0405- )JPP..LHD) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09360
End Sub-Assy, Tie Rod, Rh
[05.2004 -] NDE120,ZZE12#..JPP |
45046-09360 |
— | ||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[05.2004 -] NDE120,ZZE12#..JPP |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-09150
End Sub-Assy, Tie Rod, Lh
[05.2004 -] NDE120,ZZE12#..JPP |
45047-09150 |
— | ||
|
45503
|
45503
45503-02080
End Sub-Assy, Steering Rack
[05.2004 -] NDE120,ZZE12#..JPP |
45503-02080 |
— | ||
|
45510
|
45510
45510-02070
Gear Assy, Steering
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
45510-02070 |
— | ||
|
45535
|
45535
45535-02050
Boot, Steering Rack, No.1
[05.2004 -] NDE120,ZZE12#..JPP |
45535-02050 |
— | ||
|
45535B
|
45535B
90466-22003
Clip(For Steering Rack Boot)
[05.2004 -] NDE120,ZZE12#..JPP |
90466-22003 |
— | ||
|
45535D
|
45535D
90460-57006
Clamp(For Steering Rack Boot No.1)
[05.2004 -] NDE120,ZZE12#..JPP |
90460-57006 |
— | ||
|
45536
|
45536
45535-02050
Boot, Steering Rack, No.1
[05.2004 -] NDE120,ZZE12#..JPP |
45535-02050 |
— | ||
|
45536A
|
45536A
90460-57006
Clamp(For Steering Rack Boot No.1)
[05.2004 -] NDE120,ZZE12#..JPP |
90460-57006 |
— | ||
|
90170W0004
|
90170W0004
90170-W0004
New Genuine Part
|
90170-W0004 |
— | ||
|
9011912379
|
9011912379
90119-12379 New Genuine Part |
90119-12379 |
US $3.20 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.84 |
