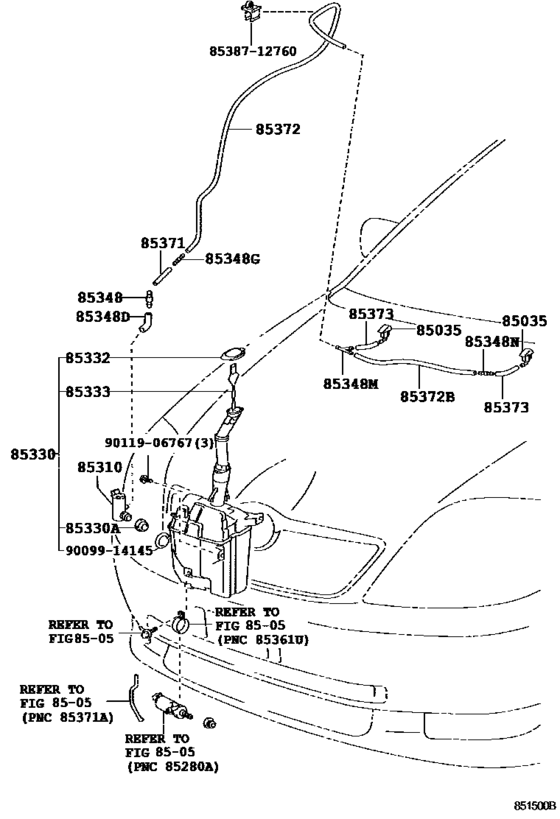

Windshield Washer ([05.2004 - ] W(HEADLAMP CLEANER) (0405- )JPP..LHD) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12210
Nozzle Sub-Assy, Washer
[05.2004 -] NDE120,ZZE12#..JPP |
85381-12210 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-44010 Nozzle Sub-Assy, Washer[05.2004 -] NDE120,ZZE12#..JPP |
85381-44010 |
from US $11.27 |
||
|
85310
|
85310
85330-33020 Motor And Pump Assy, Windshield Washer[05.2004 - 10.2004] NDE120,ZZE12#..JPP |
85330-33020 |
US $102.16 |
||
|
85330
|
85330
85315-02070
Jar Assy, Windshield Washer
[05.2004 - 10.2004] NDE120,ZZE12#..JPP TYPE A:REFER ILLUST. |
85315-02070 |
— | ||
|
85330
|
85330
85315-12500 Jar Assy, Windshield WasherWINDSHIELD WASHER [11.2004 -] NDE120,ZZE12#..JPP TYPE B:REFER ILLUST. |
85315-12500 |
US $10.30 |
||
|
85330
|
85330
85355-12100
Jar Assy, Windshield Washer
[05.2004 -] NDE120,ZZE12#..JPP..LHD W(HEADLAMP CLEANER) |
85355-12100 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.2004 - 10.2004] NDE120,ZZE12#..JPP |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.2004 - 10.2004] NDE120,ZZE12#..JPP |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.2004 - 10.2004] NDE120,ZZE12#..JPP |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-02070
Cap Assy, Windshield Washer
[05.2004 - 10.2004] NDE120,ZZE12#..JPP TYPE A:REFER ILLUST. |
85316-02070 |
— | ||
|
85332
|
85332
85316-42011 Cap, Washer, Inlet[11.2004 -] NDE120,ZZE12#..JPP TYPE B:REFER ILLUST. |
85316-42011 |
from US $2.10 |
||
|
85333
|
85333
85312-21020 Filter, Windshield Washer Jar[11.2004 -] NDE120,ZZE12#..JPP |
85312-21020 |
US $2.10 |
||
|
85333
|
85333
85312-48010 Filter, Windshield Washer Jar[05.2004 -] NDE120,ZZE12#..JPP..LHD W(HEADLAMP CLEANER) |
85312-48010 |
from US $2.10 |
||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[11.2004 -] NDE120,ZZE12#..JPP |
85375-10260 |
from US $1.62 |
||
|
85348D
|
85348D
85355-16192
Joint, Windshield Washer Elbow, No.1
[11.2004 -] NDE120,ZZE12#..JPP |
85355-16192 |
— | ||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[05.2004 -] NDE120,ZZE12#..JPP |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85348-14390 Joint, Windshield Washer Hose, No.1[05.2004 -] NDE120,ZZE12#..JPP |
85348-14390 |
from US $1.40 |
||
|
85348N
|
85348N
85349-89122 Valve Sub-Assy, Washer[05.2004 -] NDE120,ZZE12#..JPP |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2004 - 10.2004] NDE120,ZZE12#..JPP *H,L=50 |
90099-33080 |
from US $8.31 |
||
|
85372
|
85372
90099-33803 Hose, Windshield Washer (From Joint To Joint), No.1[05.2004 - 10.2006] NDE120,ZZE12#..JPP *H,L=1510 |
90099-33803 |
from US $8 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2004 -] NDE120,ZZE12#..JPP *H,L=480 |
90099-33080 |
from US $8.31 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2004 - 10.2006] NDE120,ZZE12#..JPP *H,L=90 |
90099-33080 |
from US $8.31 |
||
|
8538712760
|
8538712760
85387-12760
Clamp No.1 (for Windseield Washer)
|
85387-12760 |
— | ||
|
9009914145
|
9009914145
90099-14145
Packing, Windshield Washer Jar
|
90099-14145 |
— | ||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
