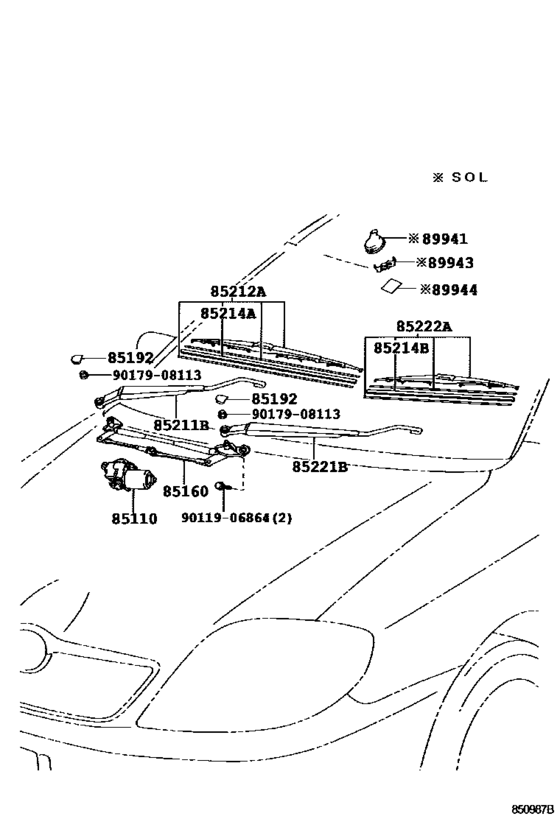

Windshield Wiper ([10.2001 - ] (0110- )JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-1A040 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.2004 -] NDE120,ZZE12#..JPP..LHD |
85110-1A040 |
US $406.22 |
||
|
85160
|
85160
85150-1A030
Link Assy, Windshield Wiper
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
85150-1A030 |
— | ||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[05.2004 -] NDE120,ZZE12#..JPP |
85292-12020 |
from US $1.52 |
||
| replacement | |||||
|
85192
|
85192
85292-01020 Cover, Windshield Wiper Arm[05.2004 -] NDE120,ZZE12#..JPP |
85292-01020 |
US $9.71 |
||
|
85211B
|
85211B
85211-12410
Arm, Front Wiper, Rh
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
85211-12410 |
— | ||
|
85212A
|
85212A
85212-12370 Blade, Fr Wiper, RhFR WIPER, RH [05.2004 - 07.2006] NDE120,ZZE12#..JPP..LHD |
85212-12370 |
US $26.35 |
||
| replacement | |||||
|
85212A
|
85212A
85212-12371 Blade, Fr Wiper, RhFR WIPER, RH [05.2004 - 07.2006] NDE120,ZZE12#..JPP..LHD |
85212-12371 |
from US $23.88 |
||
|
85212A
|
85212A
85212-12371 Blade, Fr Wiper, RhFR WIPER, RH [08.2006 -] NDE120,ZZE12#..JPP..LHD |
85212-12371 |
from US $23.88 |
||
|
85214A
|
85214A
85214-50060
Rubber, Wiper, Lh
[05.2004 - 07.2006] NDE120,ZZE12#..JPP..LHD |
85214-50060 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-50061 Rubber, Wiper, Rh[05.2004 - 07.2006] NDE120,ZZE12#..JPP..LHD |
85214-50061 |
from US $8.50 |
||
|
85214A
|
85214A
85214-50061 Rubber, Wiper, Rh[08.2006 -] NDE120,ZZE12#..JPP..LHD |
85214-50061 |
from US $8.50 |
||
|
85214B
|
85214B
85214-50100 Rubber, Wiper, Rh[05.2004 -] NDE120,ZZE12#..JPP..LHD |
85214-50100 |
from US $13.34 |
||
|
85221B
|
85221B
85221-12380 Arm, Front Wiper, LhFR WIPER, LH [05.2004 -] NDE120,ZZE12#..JPP..LHD |
85221-12380 |
from US $62.75 |
||
|
85222A
|
85222A
85222-33200 Blade, Fr Wiper, LhFR WIPER, LH [05.2004 -] NDE120,ZZE12#..JPP..LHD |
85222-33200 |
US $51.72 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $1.92 |
||
