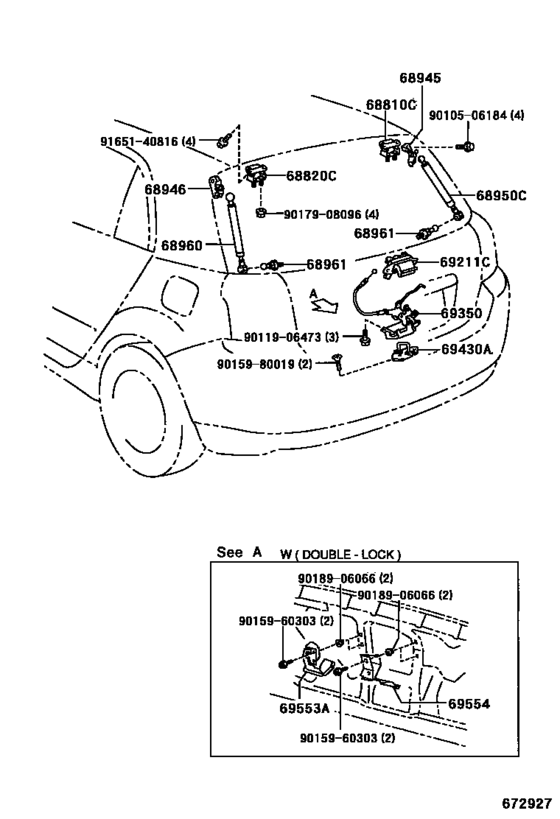

Back Door Lock & Handle ([09.2002 - ] (0209- )JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68810C
|
68810C
68810-12060 Hinge Assy, Back Door, Rh[09.2004 -] NDE120,ZZE12#..JPP PAD T=2.0 |
68810-12060 |
US $27.52 |
||
|
68810C
|
68810C
68810-21050
Hinge Assy, Back Door, Upper
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
68810-21050 |
— | ||
| replacement | |||||
|
68810C
|
68810C
68810-21051 Hinge Assy, Back Door, Rh[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
68810-21051 |
from US $20.82 |
||
|
68820C
|
68820C
68810-12060 Hinge Assy, Back Door, Rh[09.2004 -] NDE120,ZZE12#..JPP PAD T=2.0 |
68810-12060 |
US $27.52 |
||
|
68820C
|
68820C
68810-21050
Hinge Assy, Back Door, Upper
[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
68810-21050 |
— | ||
| replacement | |||||
|
68820C
|
68820C
68810-21051 Hinge Assy, Back Door, Rh[05.2004 - 09.2004] NDE120,ZZE12#..JPP |
68810-21051 |
from US $20.82 |
||
|
68945
|
68945
68945-13050 Bracket, Back Door Damper Stay, Upper Rh[05.2004 -] NDE120,ZZE12#..JPP |
68945-13050 |
US $7.71 |
||
|
68946
|
68946
68946-13050 Bracket, Back Door Damper Stay, Upper Lh[05.2004 -] NDE120,ZZE12#..JPP |
68946-13050 |
US $7.71 |
||
|
68950C
|
68950C
68950-0W170
Stay Assy, Back Door, Rh
[05.2004 - 02.2005] NDE120,ZZE12#..JPP |
68950-0W170 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-0W172
Stay Assy, Back Door, Rh
[05.2004 - 02.2005] NDE120,ZZE12#..JPP |
68950-0W172 |
— | ||
|
68950C
|
68950C
68950-0W171
Stay Assy, Back Door, Rh
[03.2005 -] NDE120,ZZE12#..JPP |
68950-0W171 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-0W172
Stay Assy, Back Door, Rh
[03.2005 -] NDE120,ZZE12#..JPP |
68950-0W172 |
— | ||
|
68960
|
68960
68960-0W170
Stay Assy, Back Door, Lh
[05.2004 - 02.2005] NDE120,ZZE12#..JPP |
68960-0W170 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-0W172
Stay Assy, Back Door, Lh
[05.2004 - 02.2005] NDE120,ZZE12#..JPP |
68960-0W172 |
— | ||
|
68960
|
68960
68960-0W171
Stay Assy, Back Door, Lh
[03.2005 -] NDE120,ZZE12#..JPP |
68960-0W171 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-0W172
Stay Assy, Back Door, Lh
[03.2005 -] NDE120,ZZE12#..JPP |
68960-0W172 |
— | ||
|
68961
|
68961
68961-10030 Bolt, Back Door Stay[05.2004 -] NDE120,ZZE12#..JPP |
68961-10030 |
US $6.88 |
||
|
69211C
|
69211C
69023-13020 Handle Sub-Assy, Back Door Outside[05.2004 -] NDE120,ZZE12#..JPP |
69023-13020 |
US $33.90 |
||
|
69350
|
69350
69350-13290
Lock Assy, Back Door
[05.2004 -] NDE120,ZZE12#..JPP..LHD..TERRA |
69350-13290 |
— | ||
|
69350
|
69350
69350-13300 Lock Assy, Back Door[08.2004 -] NDE120..JPP W(POWER DOOR LOCK) |
69350-13300 |
US $234.12 |
||
|
69430A
|
69430A
69430-52020 Striker Assy, Back Door Lower Lock[05.2004 -] NDE120,ZZE12#..JPP |
69430-52020 |
US $14.24 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.12 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.60 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
