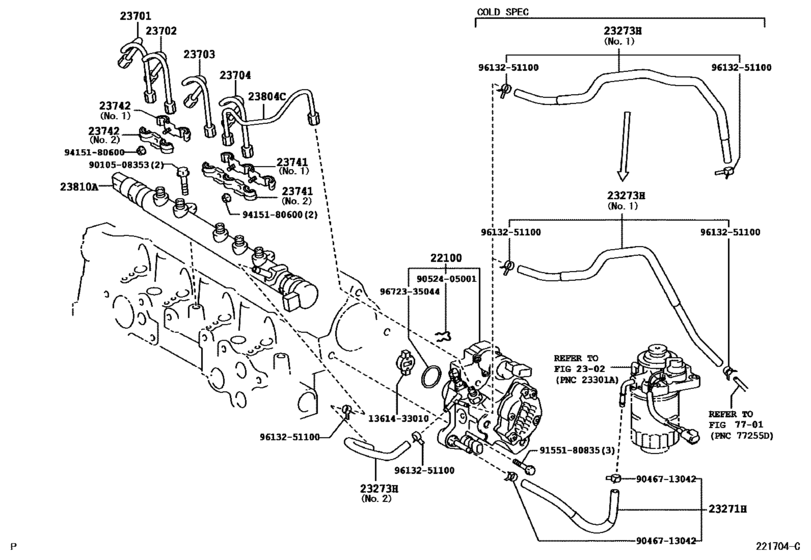

Injection Pump Assembly ([08.2004 - ] (0408- )1NDTV..JPP) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-33040 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.2004 -] 1NDTV..NDE120..JPP |
22100-33040 |
US $2,475.20 |
||
|
23271H
|
23271H
23271-33030 Hose, Fuel, No.1FUEL, NO.1 [08.2004 -] 1NDTV..NDE120..JPP |
23271-33030 |
US $28.54 |
||
|
23273H
|
23273H
23273-33040 Hose, Fuel, No.2FUEL, NO.2 [08.2004 -] 1NDTV..NDE120..JPP NO.1 |
23273-33040 |
US $33.49 |
||
|
23273H
|
23273H
23273-33050 Hose, Fuel, No.2FUEL, NO.2 [08.2004 -] 1NDTV..NDE120..JPP COLD SPEC,NO.1 |
23273-33050 |
US $33.49 |
||
|
23273H
|
23273H
23273-33060 Hose, Fuel, No.2[08.2004 -] 1NDTV..NDE120..JPP NO.2 |
23273-33060 |
US $12.67 |
||
|
23701
|
23701
23701-33010 Pipe Sub-Assy, Injection, No.1[08.2004 -] 1NDTV..NDE120..JPP |
23701-33010 |
US $23 |
||
|
23702
|
23702
23701-33020 Pipe Sub-Assy, Injection, No.2[08.2004 -] 1NDTV..NDE120..JPP |
23701-33020 |
US $23 |
||
|
23703
|
23703
23701-33020 Pipe Sub-Assy, Injection, No.2[08.2004 -] 1NDTV..NDE120..JPP |
23701-33020 |
US $23 |
||
|
23704
|
23704
23701-33020 Pipe Sub-Assy, Injection, No.2[08.2004 -] 1NDTV..NDE120..JPP |
23701-33020 |
US $23 |
||
|
23741
|
23741
23741-33010 Clamp, Injection Pipe, No.1[08.2004 -] 1NDTV..NDE120..JPP NO.1 |
23741-33010 |
US $29.12 |
||
|
23741
|
23741
23741-33020 Clamp, Injection Pipe, No.1[08.2004 -] 1NDTV..NDE120..JPP NO.2 |
23741-33020 |
US $21.40 |
||
|
23742
|
23742
23742-33010 Clamp, Injection Pipe, No.2[08.2004 -] 1NDTV..NDE120..JPP NO.1 |
23742-33010 |
US $17.76 |
||
|
23742
|
23742
23742-33020 Clamp, Injection Pipe, No.2[08.2004 -] 1NDTV..NDE120..JPP NO.2 |
23742-33020 |
US $17.76 |
||
|
23804C
|
23804C
23804-33010 Pipe Sub-Assy, Fuel Inlet[08.2004 -] 1NDTV..NDE120..JPP |
23804-33010 |
US $43.53 |
||
|
23810A
|
23810A
23810-33020 Rail Assy, CommonCOMMON [08.2004 - 03.2006] 1NDTV..NDE120..JPP |
23810-33020 |
US $930.38 |
||
| replacement | |||||
|
23810A
|
23810A
23810-33021 Rail Assy, CommonCOMMON [08.2004 - 03.2006] 1NDTV..NDE120..JPP |
23810-33021 |
US $930.38 |
||
|
23810A
|
23810A
23810-33021 Rail Assy, CommonCOMMON [03.2006 -] 1NDTV..NDE120..JPP |
23810-33021 |
US $930.38 |
||
|
1361433010
|
1361433010
13614-33010 Coupling, Supply Pump Drive |
13614-33010 |
US $18.05 |
||
|
9010508353
|
9010508353
90105-08353 Bolt(For Head To Camshaft Bearing Cap) |
90105-08353 |
from US $0.99 |
||
|
9046713042
|
9046713042
90467-13042 Clip, No.2(For Idle-Up Hose) |
90467-13042 |
US $3.04 |
||
|
9052405001
|
9052405001
90524-05001 New Genuine Part |
90524-05001 |
US $1.02 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
|
9672335044
|
9672335044
96723-35044 Ring, O(For Injection Pump) |
96723-35044 |
from US $3.02 |
||
