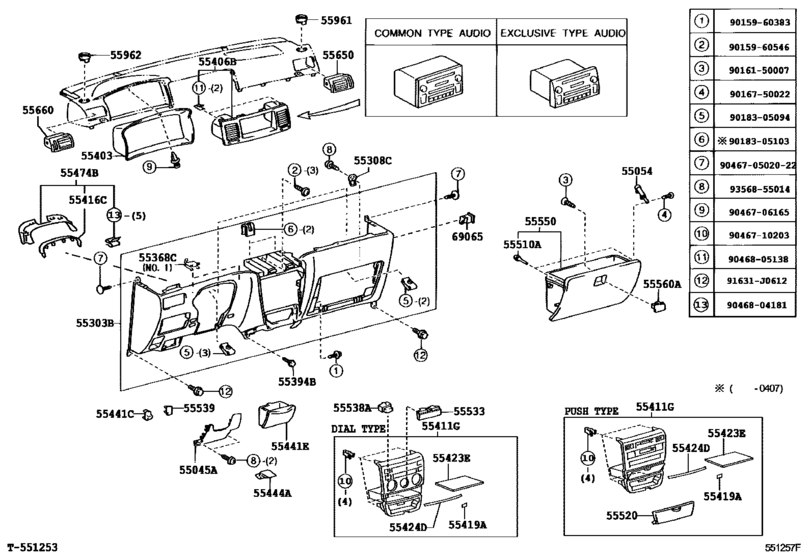

Instrument Panel & Glove Compartment ([05.2004 - ] (0405- )JPP..LHD) Diagram Toyota COROLLA
- Year
- 2004 - 2006
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55045A
|
55045A
55045-12330-B0 Panel Sub-Assy, Instrument Panel Finish, Lower RhINSTRUMENT PANEL FINISH, LOWER RH [05.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
55045-12330-B0 |
US $39.60 |
||
| replacement | |||||
|
55045A
|
55045A
55045-02120-B0
Panel Sub-Assy, Instrument Panel Finish, Lower Rh
[05.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
55045-02120-B0 |
— | ||
|
55054
|
55054
55054-12010 Stopper Sub-Assy, Glove Compartment Door[05.2004 -] NDE120,ZZE12#..JPP |
55054-12010 |
US $12.48 |
||
|
55303B
|
55303B
55303-12320-B0 Panel Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [05.2004 - 10.2004] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
55303-12320-B0 |
US $390.21 |
||
| replacements | |||||
|
55303B
|
55303B
55303-02121-B0 Panel Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [05.2004 - 10.2004] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
55303-02121-B0 |
US $390.21 |
||
|
55303B
|
55303B
90183-05103 NUT[05.2004 - 10.2004] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
90183-05103 |
US $1.44 |
||
|
55303B
|
55303B
55303-12321-B0 Panel Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [10.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
55303-12321-B0 |
US $390.21 |
||
| replacement | |||||
|
55303B
|
55303B
55303-02121-B0 Panel Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [10.2004 -] NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
55303-02121-B0 |
US $390.21 |
||
|
55308C
|
55308C
55308-12300
Bracket Sub-Assy, Instrument Panel, Center
[05.2004 -] NDE120,ZZE12#..JPP |
55308-12300 |
— | ||
|
55368C
|
55368C
55362-12050 Bracket, Meter Mounting[05.2004 - 09.2004] NDE120,ZZE12#..JPP NO.1 |
55362-12050 |
US $1.46 |
||
|
55368C
|
55368C
55368-12090 Bracket, Meter Mounting[05.2004 -] NDE120,ZZE12#..JPP NO.2 |
55368-12090 |
US $3.20 |
||
|
55394B
|
55394B
55394-12010 Bolt, Instrument Panel[05.2004 - 09.2006] NDE120,ZZE12#..JPP OD=6 |
55394-12010 |
US $1.31 |
||
|
55394B
|
55394B
55394-12020 Bolt, Instrument Panel[05.2004 -] NDE120,ZZE12#..JPP OD=7 |
55394-12020 |
US $2.04 |
||
|
55394B
|
55394B
55394-12030 Bolt, Instrument PanelINSTRUMENT PANEL [10.2006 -] NDE120,ZZE12#..JPP OD=6 |
55394-12030 |
US $2.04 |
||
| replacement | |||||
|
55394B
|
55394B
55394-12010 Bolt, Instrument Panel[10.2006 -] NDE120,ZZE12#..JPP OD=6 |
55394-12010 |
US $1.31 |
||
|
55403
|
55403
55403-12050 Hood Sub-Assy, MeterMETER [05.2004 -] NDE120,ZZE12#..JPP..LHD |
55403-12050 |
US $58.24 |
||
|
55406B
|
55406B
55406-02060-B0
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[08.2004 -] NDE120..JPP REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
55406-02060-B0 |
— | ||
|
55411G
|
55411G
55420-12300-B0 Panel, Instrument Cluster Finish, No.1INSTRUMENT CLUSTER FINISH, NO.1 [05.2004 -] NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE A-*104;DIAL TYPE,DARK GRAY,TRIM1# |
55420-12300-B0 |
US $126.67 |
||
|
55411G
|
55411G
55420-12350-B0 Panel, Instrument Cluster Finish, No.1INSTRUMENT CLUSTER FINISH, NO.1 [05.2004 - 08.2005] NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE B-*104;DIAL TYPE,DARK GRAY,TRIM1# |
55420-12350-B0 |
US $154.34 |
||
|
55416C
|
55416C
55416-02010
Retainer, Instrument Cluster Finish Panel
[05.2004 -] NDE120,ZZE12#..JPP |
55416-02010 |
— | ||
|
55419A
|
55419A
55419-32020 Cushion, Instrument Cluster Finish Panel[05.2004 -] NDE120,ZZE12#..JPP |
55419-32020 |
US $1.88 |
||
|
55423E
|
55423E
55423-12070 Cushion, Center Cluster, No.1CENTER CLUSTER, NO.1 [05.2004 -] NDE120,ZZE12#..JPP |
55423-12070 |
US $6.99 |
||
|
55424D
|
55424D
55424-12020 Cushion, Center Cluster, No.2CENTER CLUSTER, NO.2 [05.2004 -] NDE120,ZZE12#..JPP |
55424-12020 |
US $2.04 |
||
|
55441C
|
55441C
55441-20140-B7
Box, Instrument Panel
[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55441-20140-B7 |
— | ||
| replacement | |||||
|
55441C
|
55441C
55441-20140-C0 Box, Instrument Panel Coin[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55441-20140-C0 |
US $15.04 |
||
|
55441E
|
55441E
55441-12150-B1 Box, Instrument Panel[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55441-12150-B1 |
from US $34.42 |
||
|
55444A
|
55444A
55444-13040 Spring, Instrument Panel BoxINSTRUMENT PANEL BOX [05.2004 -] NDE120,ZZE12#..JPP |
55444-13040 |
US $3.32 |
||
|
55474B
|
55474B
55470-02020
Garnish, Instrument Cluster Finish Panel
[05.2004 -] NDE120,ZZE12#..JPP..LHD |
55470-02020 |
— | ||
|
55510A
|
55510A
90541-04002 Cushion(For Glove Compartment)[05.2004 -] NDE120,ZZE12#..JPP |
90541-04002 |
US $2.91 |
||
|
55533
|
55533
55533-13010 Cover, Auto Clock HoleAUTO CLOCK HOLE [05.2004 -] NDE120,ZZE12#..JPP..TERRA |
55533-13010 |
US $15.14 |
||
|
55538A
|
55538A
55538-12100 Cover, Cooler Switch HoleCOOLER SWITCH HOLE [05.2004 -] NDE120,ZZE12#..JPP..TERRA |
55538-12100 |
US $11.65 |
||
|
55539
|
55539
55539-32010-P3 Cover, Spare Switch Hole[05.2004 -] NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
55539-32010-P3 |
US $5.94 |
||
|
55550
|
55550
55550-12411-B0 Door Assy, Glove CompartmentGLOVE COMPARTMENT [05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55550-12411-B0 |
US $183.46 |
||
|
55560A
|
55560A
55506-33030-B0 Lock Assy, Glove Compartment Door[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55506-33030-B0 |
from US $14.85 |
||
|
55650
|
55650
55650-02020-B0
Register Assy, Instrument Panel, No.1
[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55650-02020-B0 |
— | ||
|
55660
|
55660
55660-02040-B0
Register Assy, Instrument Panel, No.2
[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55660-02040-B0 |
— | ||
|
55961
|
55961
55961-12220-B0 Nozzle, Side Defroster, No.1[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55961-12220-B0 |
US $7.72 |
||
|
55962
|
55962
55961-12220-B0 Nozzle, Side Defroster, No.1[05.2004 -] NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
55961-12220-B0 |
US $7.72 |
||
|
69065
|
69065
69065-12370 Cylinder Sub-Assy, Air Bag Cut Off SwAIR BAG CUT OFF SW [05.2004 -] NDE120,ZZE12#..JPP |
69065-12370 |
US $61.88 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9016750022
|
9016750022
90167-50022 SCREW |
90167-50022 |
US $1.12 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046706165
|
9046706165
90467-06165
Clip, Instrument Panel
|
90467-06165 |
— | ||
| replacement | |||||
|
9046706165
|
9046706165
90467-06165-C0 Clip, Instrument PanelINSTRUMENT PANEL |
90467-06165-C0 |
from US $0.86 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804181
|
9046804181
90468-04181 Clip(For Door Trim) |
90468-04181 |
from US $1.15 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.07 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
904670502022
|
904670502022
90467-05020-22 Clip, Instrument Panel (Black) |
90467-05020-22 |
US $0.96 |
||
