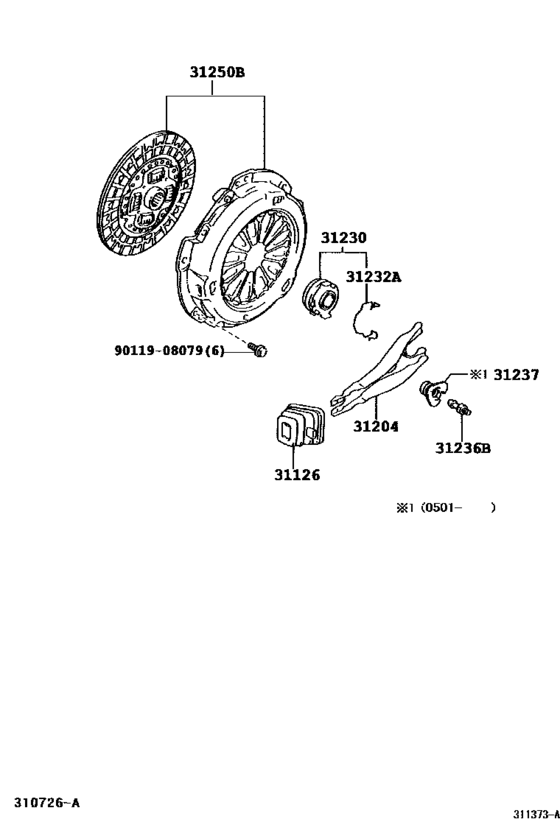

Clutch & Release Fork ([08.2004 - ] (0408- )UKP..5FS) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- SED
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5FS
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-64010 Boot, Clutch Release ForkCLUTCH RELEASE FORK [08.2004 -] NDE120..UKP..5FS |
31126-64010 |
US $11.36 |
||
|
31204
|
31204
31204-64010 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [08.2004 -] NDE120..UKP..5FS |
31204-64010 |
from US $42.82 |
||
|
31230
|
31230
31230-17010
Bearing Assy, Clutch Release
[08.2004 - 05.2005] NDE120..UKP..5FS |
31230-17010 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-17012 Bearing Assy, Clutch Release[08.2004 - 05.2005] NDE120..UKP..5FS |
31230-17012 |
from US $66.50 |
||
|
31230
|
31230
31230-17011
Bearing Assy, Clutch Release
[05.2005 -] NDE120..UKP..5FS |
31230-17011 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-17012 Bearing Assy, Clutch Release[05.2005 -] NDE120..UKP..5FS |
31230-17012 |
from US $66.50 |
||
|
31232A
|
31232A
31232-17010 Clip, Release Bearing Hub[08.2004 -] NDE120..UKP..5FS |
31232-17010 |
US $1.92 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[06.2004 -] NDE120,ZZE121..UKP..MTM |
31236-12020 |
US $8.16 |
||
|
31237
|
31237
31237-12010 Boot, Clutch Release Fork SupportCLUTCH RELEASE FORK SUPPORT [01.2005 -] NDE120..UKP..5FS |
31237-12010 |
US $8.30 |
||
| replacement | |||||
|
31237
|
31237
31237-12011 Boot, Clutch Release Fork Support[01.2005 -] NDE120..UKP..5FS |
31237-12011 |
US $9.92 |
||
|
31250B
|
31250B
31250-19035
Disc Set, Adjustable Clutch
[08.2004 - 09.2004] NDE120..UKP..5FS |
31250-19035 |
— | ||
| replacement | |||||
|
31250B
|
31250B
31250-19085 Disc Set, Adjustable Clutch[08.2004 - 09.2004] NDE120..UKP..5FS |
31250-19085 |
US $702.35 |
||
|
31250B
|
31250B
31250-69035
Disc Set, Adjustable Clutch
[09.2004 - 08.2006] NDE120..UKP..5FS |
31250-69035 |
— | ||
| replacement | |||||
|
31250B
|
31250B
31250-19085 Disc Set, Adjustable Clutch[09.2004 - 08.2006] NDE120..UKP..5FS |
31250-19085 |
US $702.35 |
||
|
31250B
|
31250B
31250-69055
Disc Set, Adjustable Clutch
[08.2006 - 12.2006] NDE120..UKP..5FS |
31250-69055 |
— | ||
| replacement | |||||
|
31250B
|
31250B
31250-19085 Disc Set, Adjustable Clutch[08.2006 - 12.2006] NDE120..UKP..5FS |
31250-19085 |
US $702.35 |
||
|
31250B
|
31250B
31250-69056
Disc Set, Adjustable Clutch
[01.2007 -] NDE120..UKP..5FS |
31250-69056 |
— | ||
| replacement | |||||
|
31250B
|
31250B
31250-19085 Disc Set, Adjustable Clutch[01.2007 -] NDE120..UKP..5FS |
31250-19085 |
US $702.35 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.82 |
||
