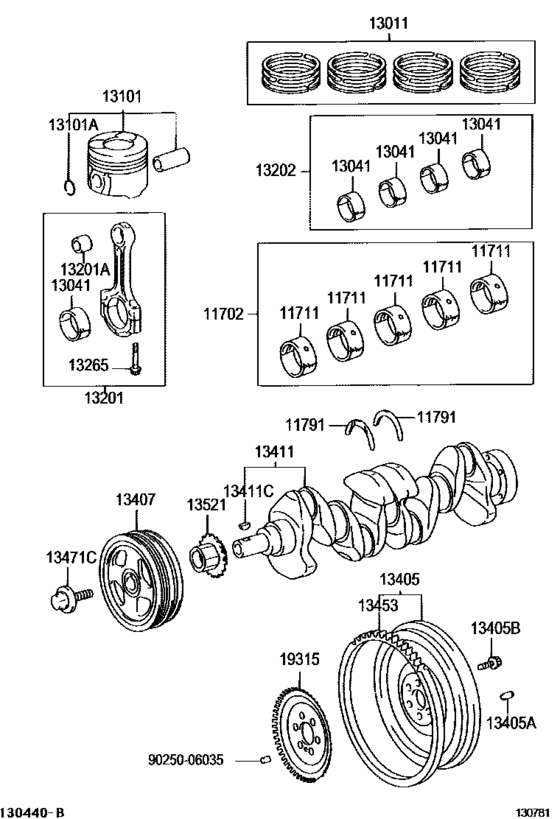

Crankshaft & Piston ([08.2004 - ] (0408- )1NDTV..UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TSP
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21010
Bearing Set, Crankshaft
[08.2004 - 03.2005] 1NDTV..NDE120..UKP U/S 0.25 |
11704-21010 |
— | ||
| replacements | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[08.2004 - 03.2005] 1NDTV..NDE120..UKP U/S 0.25 |
11704-21032 |
from US $104.77 |
||
|
11702
|
11702
11704-21020 Bearing Set, Crankshaft[08.2004 - 03.2005] 1NDTV..NDE120..UKP U/S 0.25 |
11704-21020 |
from US $91.67 |
||
|
11702
|
11702
11704-21020 Bearing Set, Crankshaft[03.2005 -] 1NDTV..NDE120..UKP U/S 0.25 |
11704-21020 |
from US $91.67 |
||
|
11711
|
11711
11701-21010-01
Bearing, Crankshaft
[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 1,REFER REPAIR MANUAL |
11701-21010-01 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 1,REFER REPAIR MANUAL |
11701-21032-01 |
from US $17.22 |
||
|
11711
|
11711
11701-21020-01 Bearing, CrankshaftCRANKSHAFT [08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 1,REFER REPAIR MANUAL |
11701-21020-01 |
from US $16.44 |
||
|
11711
|
11711
11701-21010-02
Bearing, Crankshaft
[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 2,REFER REPAIR MANUAL |
11701-21010-02 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 2,REFER REPAIR MANUAL |
11701-21032-02 |
from US $15.83 |
||
|
11711
|
11711
11701-21020-02 Bearing, CrankshaftCRANKSHAFT [08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 2,REFER REPAIR MANUAL |
11701-21020-02 |
from US $16.77 |
||
|
11711
|
11711
11701-21010-03
Bearing, Crankshaft
[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 3,REFER REPAIR MANUAL |
11701-21010-03 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 3,REFER REPAIR MANUAL |
11701-21032-03 |
from US $17.36 |
||
|
11711
|
11711
11701-21020-03 Bearing, CrankshaftCRANKSHAFT [08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 3,REFER REPAIR MANUAL |
11701-21020-03 |
US $41.93 |
||
|
11711
|
11711
11701-21010-04
Bearing, Crankshaft
[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 4,REFER REPAIR MANUAL |
11701-21010-04 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 4,REFER REPAIR MANUAL |
11701-21032-04 |
US $47.27 |
||
|
11711
|
11711
11701-21020-04 Bearing, CrankshaftCRANKSHAFT [08.2004 - 03.2005] 1NDTV..NDE120..UKP MARK 4,REFER REPAIR MANUAL |
11701-21020-04 |
US $41.93 |
||
|
11711
|
11711
11701-21020-01 Bearing, CrankshaftCRANKSHAFT [03.2005 -] 1NDTV..NDE120..UKP MARK 1,REFER REPAIR MANUAL |
11701-21020-01 |
from US $16.44 |
||
|
11711
|
11711
11701-21020-02 Bearing, CrankshaftCRANKSHAFT [03.2005 -] 1NDTV..NDE120..UKP MARK 2,REFER REPAIR MANUAL |
11701-21020-02 |
from US $16.77 |
||
|
11711
|
11711
11701-21020-03 Bearing, CrankshaftCRANKSHAFT [03.2005 -] 1NDTV..NDE120..UKP MARK 3,REFER REPAIR MANUAL |
11701-21020-03 |
US $41.93 |
||
|
11711
|
11711
11701-21020-04 Bearing, CrankshaftCRANKSHAFT [03.2005 -] 1NDTV..NDE120..UKP MARK 4,REFER REPAIR MANUAL |
11701-21020-04 |
US $41.93 |
||
|
11791
|
11791
11791-33030 Washer, Crankshaft Thrust, Upper[08.2004 -] 1NDTV..NDE120..UKP STD |
11791-33030 |
from US $17.94 |
||
|
11791
|
11791
11792-33030 Washer, Crankshaft Thrust, Upper[08.2004 -] 1NDTV..NDE120..UKP O/S 0.125 |
11792-33030 |
US $23.44 |
||
|
11791
|
11791
11793-33030 Washer, Crankshaft Thrust, Upper[08.2004 -] 1NDTV..NDE120..UKP O/S 0.25 |
11793-33030 |
US $23.44 |
||
|
13011
|
13011
13011-33060
Ring Set, Piston
[08.2004 - 12.2005] 1NDTV..NDE120..UKP STD |
13011-33060 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-33070 Ring Set, PistonPISTON [08.2004 - 12.2005] 1NDTV..NDE120..UKP STD |
13011-33070 |
US $181.64 |
||
|
13011
|
13011
13011-33070 Ring Set, PistonPISTON [12.2005 -] 1NDTV..NDE120..UKP STD |
13011-33070 |
US $181.64 |
||
|
13041
|
13041
13041-33041-01 Bearing, Connecting Rod[08.2004 -] 1NDTV..NDE120..UKP MARK1,REFER REPAIR MANUAL |
13041-33041-01 |
US $17.47 |
||
|
13041
|
13041
13041-33041-02 Bearing, Connecting Rod[08.2004 -] 1NDTV..NDE120..UKP MARK2,REFER REPAIR MANUAL |
13041-33041-02 |
from US $10.34 |
||
|
13041
|
13041
13041-33041-03 Bearing, Connecting Rod[08.2004 -] 1NDTV..NDE120..UKP MARK3,REFER REPAIR MANUAL |
13041-33041-03 |
US $16.16 |
||
|
13101
|
13101
13101-0N030
Piston Sub-Assy, W/pin
[08.2004 - 10.2005] 1NDTV..NDE120..UKP STD,REFER REPAIR MANUAL |
13101-0N030 |
— | ||
| replacements | |||||
|
13101
|
13101
13101-0N051-01
Piston Sub-Assy, W/pin
[08.2004 - 10.2005] 1NDTV..NDE120..UKP STD,REFER REPAIR MANUAL |
13101-0N051-01 |
— | ||
|
13101
|
13101
13101-0N051-02
Piston Sub-Assy, W/pin
[08.2004 - 10.2005] 1NDTV..NDE120..UKP STD,REFER REPAIR MANUAL |
13101-0N051-02 |
— | ||
|
13101
|
13101
13101-0N051-03
Piston Sub-Assy, W/pin
[08.2004 - 10.2005] 1NDTV..NDE120..UKP STD,REFER REPAIR MANUAL |
13101-0N051-03 |
— | ||
|
13101
|
13101
13101-0N031-01
Piston Sub-Assy, W/pin
[10.2005 - 07.2006] 1NDTV..NDE120..UKP STD,MARKA,REFER REPAIR MANUAL |
13101-0N031-01 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-0N051-01
Piston Sub-Assy, W/pin
[10.2005 - 07.2006] 1NDTV..NDE120..UKP STD,MARKA,REFER REPAIR MANUAL |
13101-0N051-01 |
— | ||
|
13101
|
13101
13101-0N031-02
Piston Sub-Assy, W/pin
[10.2005 - 07.2006] 1NDTV..NDE120..UKP STD,MARKB,REFER REPAIR MANUAL |
13101-0N031-02 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-0N051-02
Piston Sub-Assy, W/pin
[10.2005 - 07.2006] 1NDTV..NDE120..UKP STD,MARKB,REFER REPAIR MANUAL |
13101-0N051-02 |
— | ||
|
13101
|
13101
13101-0N031-03
Piston Sub-Assy, W/pin
[10.2005 - 07.2006] 1NDTV..NDE120..UKP STD,MARKC,REFER REPAIR MANUAL |
13101-0N031-03 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-0N051-03
Piston Sub-Assy, W/pin
[10.2005 - 07.2006] 1NDTV..NDE120..UKP STD,MARKC,REFER REPAIR MANUAL |
13101-0N051-03 |
— | ||
|
13101
|
13101
13101-0N050-01
Piston Sub-Assy, W/pin
[07.2006 - 01.2007] 1NDTV..NDE120..UKP STD,MARKA,REFER REPAIR MANUAL |
13101-0N050-01 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-0N051-01
Piston Sub-Assy, W/pin
[07.2006 - 01.2007] 1NDTV..NDE120..UKP STD,MARKA,REFER REPAIR MANUAL |
13101-0N051-01 |
— | ||
|
13101
|
13101
13101-0N050-02
Piston Sub-Assy, W/pin
[07.2006 - 01.2007] 1NDTV..NDE120..UKP STD,MARKB,REFER REPAIR MANUAL |
13101-0N050-02 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-0N051-02
Piston Sub-Assy, W/pin
[07.2006 - 01.2007] 1NDTV..NDE120..UKP STD,MARKB,REFER REPAIR MANUAL |
13101-0N051-02 |
— | ||
|
13101
|
13101
13101-0N050-03
Piston Sub-Assy, W/pin
[07.2006 - 01.2007] 1NDTV..NDE120..UKP STD,MARKC,REFER REPAIR MANUAL |
13101-0N050-03 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-0N051-03
Piston Sub-Assy, W/pin
[07.2006 - 01.2007] 1NDTV..NDE120..UKP STD,MARKC,REFER REPAIR MANUAL |
13101-0N051-03 |
— | ||
|
13101
|
13101
13101-0N051-01
Piston Sub-Assy, W/pin
[01.2007 -] 1NDTV..NDE120..UKP STD,MARKA,REFER REPAIR MANUAL |
13101-0N051-01 |
— | ||
|
13101
|
13101
13101-0N051-02
Piston Sub-Assy, W/pin
[01.2007 -] 1NDTV..NDE120..UKP STD,MARKB,REFER REPAIR MANUAL |
13101-0N051-02 |
— | ||
|
13101
|
13101
13101-0N051-03
Piston Sub-Assy, W/pin
[01.2007 -] 1NDTV..NDE120..UKP STD,MARKC,REFER REPAIR MANUAL |
13101-0N051-03 |
— | ||
|
13101A
|
13101A
90080-52139 Ring, Hole Snap(For Piston Pin)[08.2004 -] 1NDTV..NDE120..UKP |
90080-52139 |
US $1.16 |
||
|
13201
|
13201
13201-39055 Rod Sub-Assy, Connecting[08.2004 -] 1NDTV..NDE120..UKP |
13201-39055 |
US $117.94 |
||
|
13201A
|
13201A
90999-73147 Bush(For Connecting Rod Small End)[08.2004 -] 1NDTV..NDE120..UKP |
90999-73147 |
US $2.62 |
||
|
13202
|
13202
13204-33041 Bearing Set, Connecting Rod[08.2004 -] 1NDTV..NDE120..UKP U/S 0.25 |
13204-33041 |
from US $51.40 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[08.2004 -] 1NDTV..NDE120..UKP |
13265-21020 |
from US $3.35 |
||
|
13405
|
13405
13405-33020 Flywheel Sub-Assy[08.2004 -] 1NDTV..NDE120..UKP |
13405-33020 |
US $512.51 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[08.2004 -] 1NDTV..NDE120..UKP L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90913-01024 Bolt, Flywheel Setting[08.2004 -] 1NDTV..NDE120..UKP |
90913-01024 |
US $1.76 |
||
|
13407
|
13407
13407-33030 Damper Sub-Assy, CrankshaftCRANKSHAFT [08.2004 -] 1NDTV..NDE120..UKP |
13407-33030 |
US $248.98 |
||
|
13411
|
13411
13401-33011 Crankshaft[08.2004 -] 1NDTV..NDE120..UKP |
13401-33011 |
US $1,437.07 |
||
|
13411C
|
13411C
95161-30416 Pin, Straight(For Crankshaft)[08.2004 -] 1NDTV..NDE120..UKP |
95161-30416 |
from US $1.54 |
||
|
13453
|
13453
13453-55010
Gear, Flywheel Ring
[08.2004 -] 1NDTV..NDE120..UKP |
13453-55010 |
— | ||
|
13471C
|
13471C
90119-14106 Bolt(For Crankshaft Pulley Set)[08.2004 -] 1NDTV..NDE120..UKP |
90119-14106 |
US $5.76 |
||
|
13521
|
13521
13521-33020 Gear Or Sprocket, Crankshaft Timing[08.2004 -] 1NDTV..NDE120..UKP |
13521-33020 |
US $36.34 |
||
|
19315
|
19315
19315-33010 Plate, Crank Angle Sensor, No.1[08.2004 -] 1NDTV..NDE120..UKP |
19315-33010 |
US $47.03 |
||
|
9025006035
|
9025006035
90250-06035 Pin, Straight(For Crankshaft) |
90250-06035 |
US $0.87 |
||
