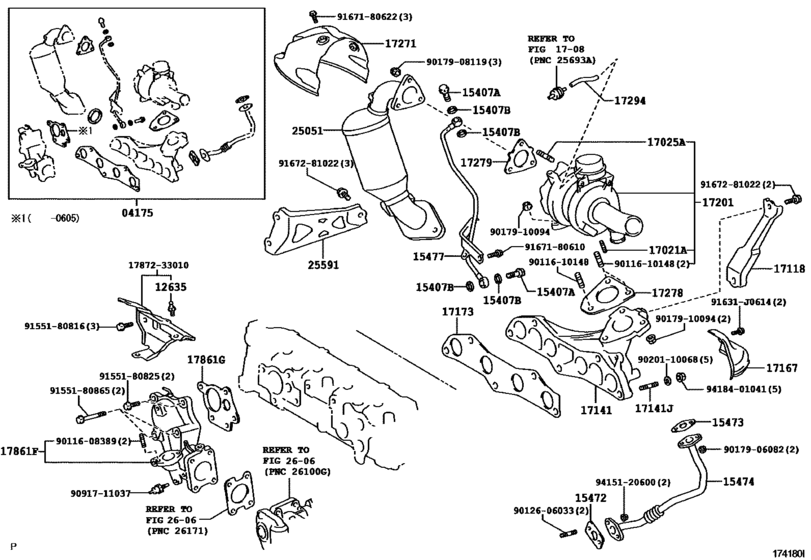

Manifold ([08.2004 - ] (0408- )1NDTV..UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TSP
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-0N030
Gasket Kit, Turbocharger
[08.2004 - 05.2006] 1NDTV..NDE120..UKP |
04175-0N030 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-0N031
Gasket Kit, Turbocharger
[08.2004 - 05.2006] 1NDTV..NDE120..UKP |
04175-0N031 |
— | ||
|
04175
|
04175
04175-0N031
Gasket Kit, Turbocharger
[05.2006 -] 1NDTV..NDE120..UKP |
04175-0N031 |
— | ||
|
12635
|
12635
12635-33010 Bracket, V-Bank Cover, No.1ENGINE COVER [08.2004 -] 1NDTV..NDE120..UKP |
12635-33010 |
US $2.91 |
||
| replacement | |||||
|
12635
|
12635
90109-06385 Bolt , V-Bank Cover, No.1[08.2004 -] 1NDTV..NDE120..UKP |
90109-06385 |
from US $1.28 |
||
|
15407A
|
15407A
90401-10065 Bolt, Union(For Turbo Oil Inlet Pipe)[08.2004 -] 1NDTV..NDE120..UKP |
90401-10065 |
from US $2.34 |
||
|
15407B
|
15407B
90430-10027 Gasket, W/head Straight Screw Plug[08.2004 -] 1NDTV..NDE120..UKP |
90430-10027 |
from US $0.74 |
||
|
15472
|
15472
15472-33010 Gasket, Turbo Oil Outlet, No.1[08.2004 -] 1NDTV..NDE120..UKP |
15472-33010 |
US $5.64 |
||
|
15473
|
15473
15473-33010 Gasket, Turbo Oil Outlet, No.2TURBO OIL OUTLET, NO.2 [08.2004 -] 1NDTV..NDE120..UKP |
15473-33010 |
US $7.20 |
||
|
15474
|
15474
15474-33010 Pipe, Turbo Oil OutletTURBO OIL OUTLET [08.2004 - 01.2007] 1NDTV..NDE120..UKP |
15474-33010 |
US $99.01 |
||
| replacement | |||||
|
15474
|
15474
15474-33020
Pipe, Turbo Oil Outlet
[08.2004 - 01.2007] 1NDTV..NDE120..UKP |
15474-33020 |
— | ||
|
15474
|
15474
15474-33020
Pipe, Turbo Oil Outlet
[01.2007 -] 1NDTV..NDE120..UKP |
15474-33020 |
— | ||
|
15477
|
15477
15477-33010 Pipe, Turbo Oil InletTURBO OIL INLET [08.2004 -] 1NDTV..NDE120..UKP |
15477-33010 |
US $29.27 |
||
|
17021A
|
17021A
90116-06048 Bolt, Stud(For Oil Pan)[08.2004 -] 1NDTV..NDE120..UKP |
90116-06048 |
from US $0.72 |
||
|
17025A
|
17025A
90116-08260 Bolt, Stud(For Turbine Housing)[08.2004 -] 1NDTV..NDE120..UKP |
90116-08260 |
US $1.60 |
||
|
17118
|
17118
17118-33030 Stay, ManifoldMANIFOLD [08.2004 -] 1NDTV..NDE120..UKP |
17118-33030 |
US $34.36 |
||
|
17141
|
17141
17141-33040 Manifold, ExhaustEXHAUST [08.2004 -] 1NDTV..NDE120..UKP |
17141-33040 |
US $331.97 |
||
|
17141J
|
17141J
90126-10018 Bolt, Stud(For Exhaust Manifold, Rh)[08.2004 -] 1NDTV..NDE120..UKP |
90126-10018 |
US $5.92 |
||
|
17167
|
17167
17167-33010 Insulator, Exhaust Manifold Heat, No.1[08.2004 -] 1NDTV..NDE120..UKP |
17167-33010 |
US $21.69 |
||
|
17173
|
17173
17173-33010 Gasket, Exhaust Manifold To Head[08.2004 -] 1NDTV..NDE120..UKP |
17173-33010 |
US $37.42 |
||
|
17201
|
17201
17201-0N010
Turbocharger Sub-Assy
[08.2004 -] 1NDTV..NDE120..UKP |
17201-0N010 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0N030
Turbocharger Sub-Assy
[08.2004 -] 1NDTV..NDE120..UKP |
17201-0N030 |
— | ||
|
17271
|
17271
17271-33030 Insulator, Turbo, No.1TURBO, NO.1 [08.2004 -] 1NDTV..NDE120..UKP |
17271-33030 |
US $154.34 |
||
|
17278
|
17278
17278-27010 Gasket, Turbo To Exhaust ManifoldTURBO TO EXHAUST MANIFOLD [08.2004 -] 1NDTV..NDE120..UKP |
17278-27010 |
from US $7.66 |
||
|
17279
|
17279
17279-27020 Gasket, Turbine Outlet ElbowTURBINE OUTLET ELBOW [08.2004 -] 1NDTV..NDE120..UKP |
17279-27020 |
US $5.36 |
||
|
17294
|
17294
17294-33010 Hose, ActuatorACTUATOR [08.2004 -] 1NDTV..NDE120..UKP |
17294-33010 |
US $13.54 |
||
|
17861F
|
17861F
17861-33020 Connector, Intake AirINTAKE AIR [08.2004 -] 1NDTV..NDE120..UKP |
17861-33020 |
US $174.72 |
||
|
17861G
|
17861G
26171-33011 Gasket, Venturi[08.2004 -] 1NDTV..NDE120..UKP |
26171-33011 |
US $7.36 |
||
|
25051
|
25051
25051-33040 Converter Sub-Assy, Exhaust ManifoldEXHAUST MANIFOLD [08.2004 -] 1NDTV..NDE120..UKP *114=TOYOTA/33040/Y |
25051-33040 |
US $1,349.71 |
||
|
25591
|
25591
25591-33020 Bracket, Manifold SupportMANIFOLD SUPPORT [08.2004 -] 1NDTV..NDE120..UKP |
25591-33020 |
US $36.25 |
||
|
91631J0614
|
91631J0614
91631-J0614 New Genuine Part |
91631-J0614 |
US $1.46 |
||
|
1787233010
|
1787233010
17872-33010 Bracket, Intake Air Connector |
17872-33010 |
US $47.03 |
||
|
9011608389
|
9011608389
90116-08389 Bolt, Stud(For Oil Strainer) |
90116-08389 |
US $1.22 |
||
|
9011610148
|
9011610148
90116-10148 Bolt, Stud(For Turbocharger) |
90116-10148 |
US $1.31 |
||
|
9012606033
|
9012606033
90126-06033 New Genuine Part |
90126-06033 |
US $0.73 |
||
|
9017906082
|
9017906082
90179-06082 New Genuine Part |
90179-06082 |
US $4.22 |
||
|
9017908119
|
9017908119
90179-08119 NUT |
90179-08119 |
US $1.44 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.73 |
||
|
9020110068
|
9020110068
90201-10068 New Genuine Part |
90201-10068 |
US $1.44 |
||
|
9091711037
|
9091711037
90917-11037 Filter, Gas, No.1 |
90917-11037 |
from US $18.39 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.80 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155180865
|
9155180865
91551-80865 Shaft, Clutch Pedal |
91551-80865 |
US $1.60 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $0.96 |
||
|
9167180622
|
9167180622
91671-80622 Bolt |
91671-80622 |
US $1.44 |
||
|
9167281022
|
9167281022
91672-81022 New Genuine Part |
91672-81022 |
US $1.31 |
||
|
9415120600
|
9415120600
94151-20600 New Genuine Part |
94151-20600 |
US $1.44 |
||
|
9418401041
|
9418401041
94184-01041 Nut |
94184-01041 |
from US $0.82 |
||
