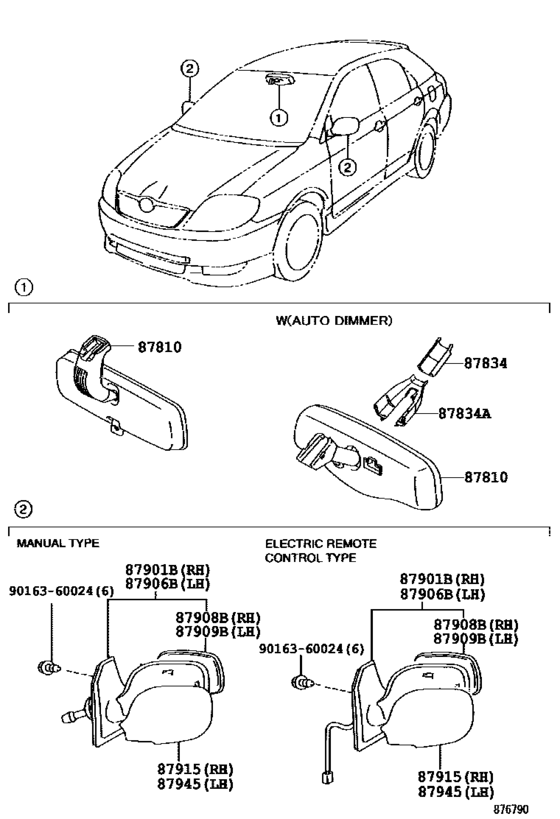

Mirror ([05.2004 - ] (0405- )UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TSP
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-05040
Mirror Assy, Inner Rear View
[05.2004 - 10.2006] CDE120,NDE120,ZZE12#..UKP..(SOL,TSP) W(AUTO DIMMER) |
87810-05040 |
— | ||
| replacement | |||||
|
87810
|
87810
87810-05042 Mirror Assy, Inner Rear View[05.2004 - 10.2006] CDE120,NDE120,ZZE12#..UKP..(SOL,TSP) W(AUTO DIMMER) |
87810-05042 |
US $482.23 |
||
|
87810
|
87810
87810-05041
Mirror Assy, Inner Rear View
[11.2006 - 12.2006] CDE120,NDE120,ZZE12#..UKP..(SOL,TSP) W(AUTO DIMMER) |
87810-05041 |
— | ||
| replacement | |||||
|
87810
|
87810
87810-05042 Mirror Assy, Inner Rear View[11.2006 - 12.2006] CDE120,NDE120,ZZE12#..UKP..(SOL,TSP) W(AUTO DIMMER) |
87810-05042 |
US $482.23 |
||
|
87810
|
87810
87810-05042 Mirror Assy, Inner Rear View[12.2006 -] CDE120,NDE120,ZZE12#..UKP..(SOL,TSP) W(AUTO DIMMER) |
87810-05042 |
US $482.23 |
||
|
87810
|
87810
87810-0D011 Mirror Assy, Inner Rear View[10.2005 -] CDE120,NDE120,ZZE120,121..UKP..(SOL,TSP) |
87810-0D011 |
from US $65.31 |
||
|
87834
|
87834
87818-02010
Cover, Inner Rear View Mirror Stay Holder
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..(SOL,TSP) |
87818-02010 |
— | ||
|
87834A
|
87834A
87834-05020
Cover, Inner Rear View Mirror Stay Holder, No.2
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..(SOL,TSP) |
87834-05020 |
— | ||
|
87901B
|
87901B
87901-02160
Mirror Sub-Assy, Outer Rear View, Rh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87901-02160 |
— | ||
|
87901B
|
87901B
87901-02170
Mirror Sub-Assy, Outer Rear View, Rh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER) |
87901-02170 |
— | ||
|
87906B
|
87906B
87906-02150
Mirror Sub-Assy, Outer Rear View, Lh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87906-02150 |
— | ||
|
87906B
|
87906B
87906-02160
Mirror Sub-Assy, Outer Rear View, Lh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER) |
87906-02160 |
— | ||
|
87908B
|
87908B
87908-02610
Mirror Sub-Assy, Rh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87908-02610 |
— | ||
| replacement | |||||
|
87908B
|
87908B
87908-05280
Mirror Sub-Assy, Rh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87908-05280 |
— | ||
|
87908B
|
87908B
87908-02620
Mirror Sub-Assy, Rh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER) |
87908-02620 |
— | ||
|
87909B
|
87909B
87909-02590
Mirror Sub-Assy, Lh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87909-02590 |
— | ||
|
87909B
|
87909B
87909-02600
Mirror Sub-Assy, Lh
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER) |
87909-02600 |
— | ||
|
87915
|
87915
87915-05901 Cover, Outer Mirror, RhOUTER MIRROR, RH [05.2004 -] CDE120,NDE120,ZZE12#..UKP W(ELECTRIC REMOTE CONTROL MIRROR) |
87915-05901 |
from US $34.96 |
||
|
87945
|
87945
87945-05901 Cover, Outer Mirror, LhOUTER MIRROR, LH [05.2004 -] CDE120,NDE120,ZZE12#..UKP W(ELECTRIC REMOTE CONTROL MIRROR) |
87945-05901 |
from US $34.96 |
||
|
9016360024
|
9016360024
90163-60024 SCREW HEXAGON |
90163-60024 |
US $0.96 |
||
