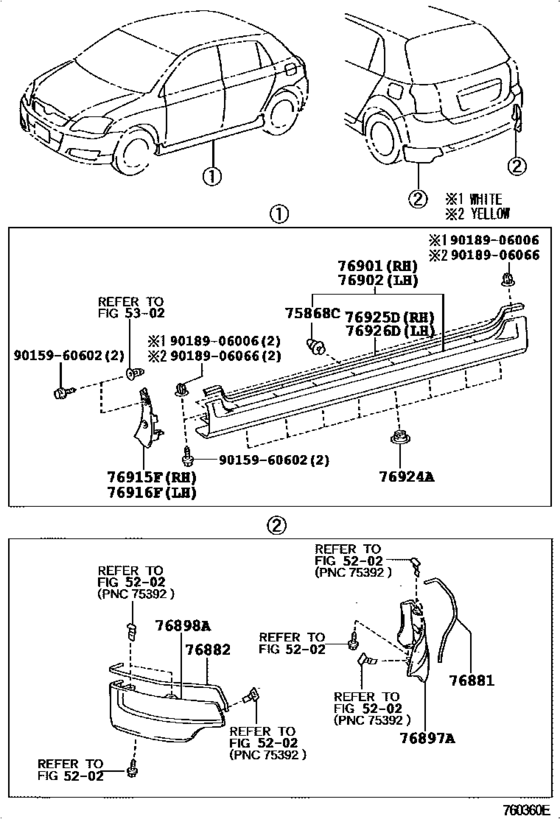

Mudguard & Spoiler ([10.2005 - ] SIDE MUD GUARD & REAR SIDE SPOILEER (0405-0510)UKP..3D..TERRA ; (0405-0511)UKP..5D.. TERRA ; (0405- )ZZE123..UKP ; (0 510- )UKP..SOL ,TSP ; (0602- )NDE120..UKP..RHD) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TSP
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75868C
|
75868C
75868-33020 Clip, Rocker Panel Moulding, No.2[11.2005 -] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) |
75868-33020 |
from US $3.36 |
||
|
76881
|
76881
76881-12060-B2 Protector, Rear Spoiler Side, No.1 RhREAR SPOILER SIDE, NO.1 RH [10.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..(SOL,TSP) LT. GRAY,040 ,1C0 ,8S1 |
76881-12060-B2 |
US $6.41 |
||
|
76881
|
76881
76881-12060-C0 Protector, Rear Spoiler Side, No.1 RhREAR SPOILER SIDE, NO.1 RH [10.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..(SOL,TSP) BLACK,1C3 ,1F6 ,209 ,3E5 ,6S3 ,8P1 ,8P4 |
76881-12060-C0 |
US $6.41 |
||
|
76882
|
76882
76881-12060-B2 Protector, Rear Spoiler Side, No.1 RhREAR SPOILER SIDE, NO.1 RH [10.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..(SOL,TSP) LT. GRAY,040 ,1C0 ,8S1 |
76881-12060-B2 |
US $6.41 |
||
|
76882
|
76882
76881-12060-C0 Protector, Rear Spoiler Side, No.1 RhREAR SPOILER SIDE, NO.1 RH [10.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..(SOL,TSP) BLACK,1C3 ,1F6 ,209 ,3E5 ,6S3 ,8P1 ,8P4 |
76881-12060-C0 |
US $6.41 |
||
|
76897A
|
76897A
76087-02901
Spoiler,rear Side Rh
[10.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..(SOL,TSP) |
76087-02901 |
— | ||
|
76898A
|
76898A
76088-02901
Spoiler,rear Side Lh
[10.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..(SOL,TSP) |
76088-02901 |
— | ||
|
76901
|
76901
76901-02903
Mudguard Sub-Assy, Side, Rh
[11.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) |
76901-02903 |
— | ||
|
76902
|
76902
76902-02903
Mudguard Sub-Assy, Side, Lh
[11.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) |
76902-02903 |
— | ||
|
76915F
|
76915F
76915-02020
Mudguard, Side, Fr Rh
[11.2005 -] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) |
76915-02020 |
— | ||
|
76916F
|
76916F
76916-02020
Mudguard, Side, Fr Lh
[11.2005 -] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) |
76916-02020 |
— | ||
|
76924A
|
76924A
76924-52021 Retainer, Side Mudguard[05.2004 -] CDE120,NDE120,ZZE120,121..UKP |
76924-52021 |
from US $1.15 |
||
|
76925D
|
76925D
76925-12080-B2
Protector, Side Mudguard, Rh
[11.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) LT. GRAY,040 ,1C0 ,8S1 |
76925-12080-B2 |
— | ||
|
76925D
|
76925D
76925-12080-C0 Protector, Side Mudguard, RhSIDE MUDGUARD, RH [11.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) BLACK,1C3 ,1F6 ,209 ,3E5 ,6S3 ,8P1 ,8P4 |
76925-12080-C0 |
US $12.08 |
||
|
76926D
|
76926D
76925-12080-B2
Protector, Side Mudguard, Rh
[11.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) LT. GRAY,040 ,1C0 ,8S1 |
76925-12080-B2 |
— | ||
|
76926D
|
76926D
76925-12080-C0 Protector, Side Mudguard, RhSIDE MUDGUARD, RH [11.2005 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP) BLACK,1C3 ,1F6 ,209 ,3E5 ,6S3 ,8P1 ,8P4 |
76925-12080-C0 |
US $12.08 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.76 |
