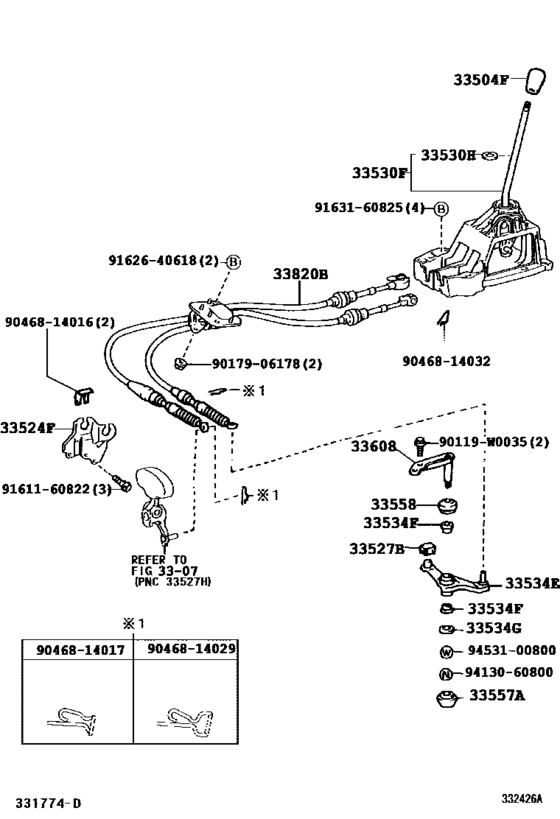

Shift Lever & Retainer ([08.2004 - ] (0408- )NDE120..UKP..5F) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TSP
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-02090-B0
Knob Sub-Assy, Shift Lever
[05.2004 - 02.2007] CDE120,NDE120,ZZE120,121..UKP..LHD..5F..(SOL,TSP) CHROME PLATED & LEATHER,DK.GRAY,TRIM0#,1#; CDE120,ZZE120,121..UKP..RHD..5F..SOL CHROME PLATED & LEATHER,DK.GRAY,TRIM1# |
33504-02090-B0 |
— | ||
|
33524F
|
33524F
33524-12030 Bracket, Control Lever Housing Support (For Floor Shift)CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT) [08.2004 - 02.2007] NDE120..UKP..5F |
33524-12030 |
US $24.02 |
||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[05.2004 - 02.2007] CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
33557-33010 |
from US $7.20 |
||
|
33530F
|
33530F
33530-02160
Lever Assy, Shift (For Floor Shift)
[05.2004 -] CDE120,NDE120,ZZE120,121..UKP..LHD..5F |
33530-02160 |
— | ||
|
33530H
|
33530H
3352A-05010
Ring, Snap (For Shift Lever)
[05.2004 -] CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
3352A-05010 |
— | ||
|
33534E
|
33534E
33534-12110 Crank, Selecting Bell, No.2SELECTING BELL, NO.2 [08.2004 - 02.2007] NDE120..UKP..5F |
33534-12110 |
US $36.25 |
||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[05.2004 - 02.2007] CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[05.2004 - 02.2007] CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[05.2004 - 02.2007] CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[05.2004 - 02.2007] CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
33558-10030 |
from US $3.68 |
||
|
33608
|
33608
33608-12060 Support Sub-Assy, Selecting BellcrankSELECTING BELLCRANK [08.2004 - 02.2007] NDE120..UKP..5F |
33608-12060 |
US $17.91 |
||
|
33820B
|
33820B
33820-02400
Cable Assy, Transmission Control
[08.2004 -] NDE120..UKP..5F |
33820-02400 |
— | ||
|
90119W0035
|
90119W0035
90119-W0035
Bolt (For Transfer Case)Cover No.2
|
90119-W0035 |
— | ||
| replacement | |||||
|
90119W0035
|
90119W0035
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.94 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.44 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $1.93 |
||
