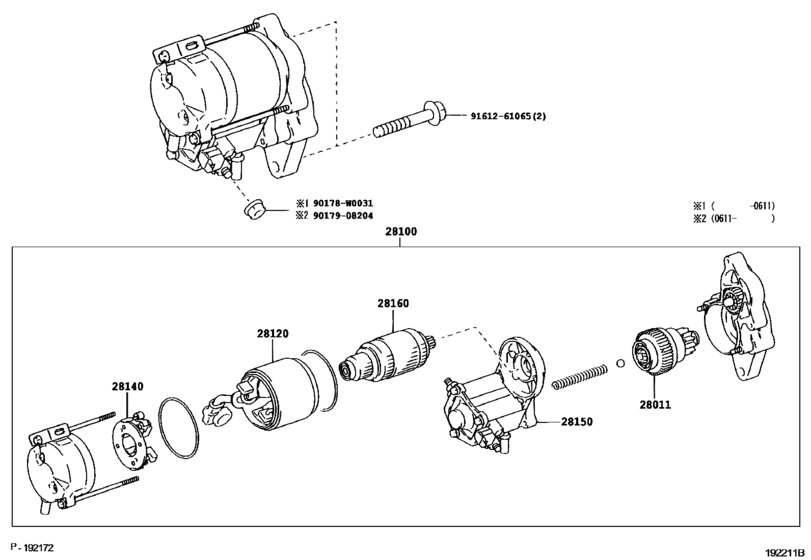

Starter ([08.2004 - ] 12V 1.4KW,2.0KW (0408- )1NDTV..UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TSP
- body
- HB
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-55050 Clutch Sub-Assy, Starter[08.2004 -] 1NDTV..NDE120..UKP 12V 1.4KW |
28011-55050 |
US $286.83 |
||
|
28011
|
28011
28011-55060 Clutch Sub-Assy, Starter[08.2004 -] 1NDTV..NDE120..UKP 12V 2.0KW |
28011-55060 |
US $345.07 |
||
|
28100
|
28100
28100-33070 Starter Assy[08.2004 -] 1NDTV..NDE120..UKP 12V 1.4KW |
28100-33070 |
US $1,046.86 |
||
| replacement | |||||
|
28100
|
28100
28100-33071
Starter Assy
[08.2004 -] 1NDTV..NDE120..UKP 12V 1.4KW |
28100-33071 |
— | ||
|
28100
|
28100
28100-33080 Starter Assy[08.2004 -] 1NDTV..NDE120..UKP 12V 2.0KW |
28100-33080 |
US $1,645.28 |
||
|
28120
|
28120
28120-54380
Yoke Assy, Starter
[08.2004 -] 1NDTV..NDE120..UKP 12V 2.0KW |
28120-54380 |
— | ||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[08.2004 -] 1NDTV..NDE120..UKP 12V 1.4KW |
28120-55050 |
— | ||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[08.2004 -] 1NDTV..NDE120..UKP |
28140-64130 |
— | ||
|
28150
|
28150
28150-33040 Switch Assy, Magnet Starter[08.2004 - 02.2007] 1NDTV..NDE120..UKP 12V 2.0KW |
28150-33040 |
US $283.92 |
||
|
28150
|
28150
28150-46220 Switch Assy, Magnet Starter[08.2004 - 02.2007] 1NDTV..NDE120..UKP 12V 1.4KW |
28150-46220 |
US $215.49 |
||
|
28160
|
28160
28160-54380
Armature Assy, Starter
[08.2004 -] 1NDTV..NDE120..UKP 12V 2.0KW |
28160-54380 |
— | ||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[08.2004 -] 1NDTV..NDE120..UKP 12V 1.4KW |
28160-74070 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
