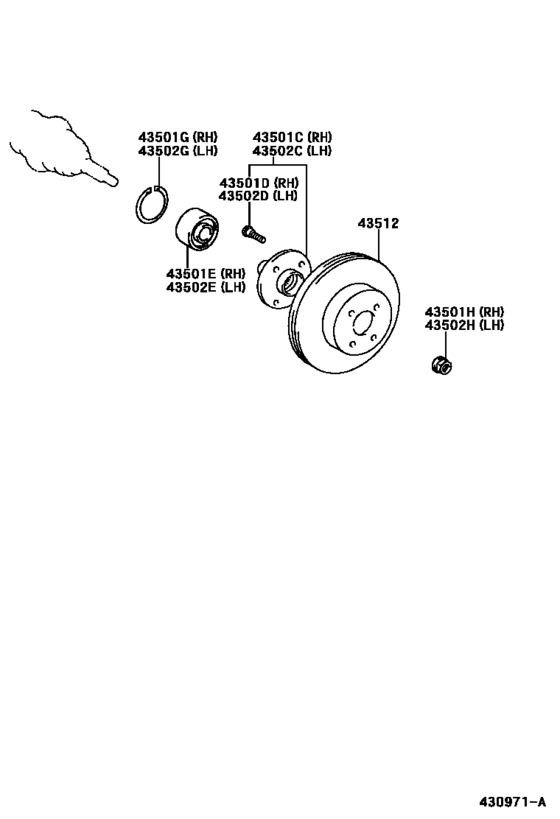

Front Axle Hub ([01.2002 - ] (0201- )UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-02060
Hub Sub-Assy, Front Axle, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
43502-02060 |
— | ||
|
43501D
|
43501D
90942-02049 Bolt, Hub[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90080-36087 Bearing (For Front Axle Hub )[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90080-36087 |
from US $51.87 |
||
|
43501G
|
43501G
90521-79002 Ring, Snap (For Axle Shaft)[06.2004 - 02.2007] CDE120,NDE120,ZZE12#..UKP |
90521-79002 |
from US $2.24 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-02060
Hub Sub-Assy, Front Axle, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
43502-02060 |
— | ||
|
43502D
|
43502D
90942-02049 Bolt, Hub[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90080-36087 Bearing (For Front Axle Hub )[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90080-36087 |
from US $51.87 |
||
|
43502G
|
43502G
90521-79002 Ring, Snap (For Axle Shaft)[06.2004 - 02.2007] CDE120,NDE120,ZZE12#..UKP |
90521-79002 |
from US $2.24 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-02080 Disc, FrontFRONT [06.2004 - 02.2007] CDE120,NDE120..UKP |
43512-02080 |
US $184.91 |
||
| replacement | |||||
|
43512
|
43512
43512-02081
Disc, Front
[06.2004 - 02.2007] CDE120,NDE120..UKP |
43512-02081 |
— | ||
