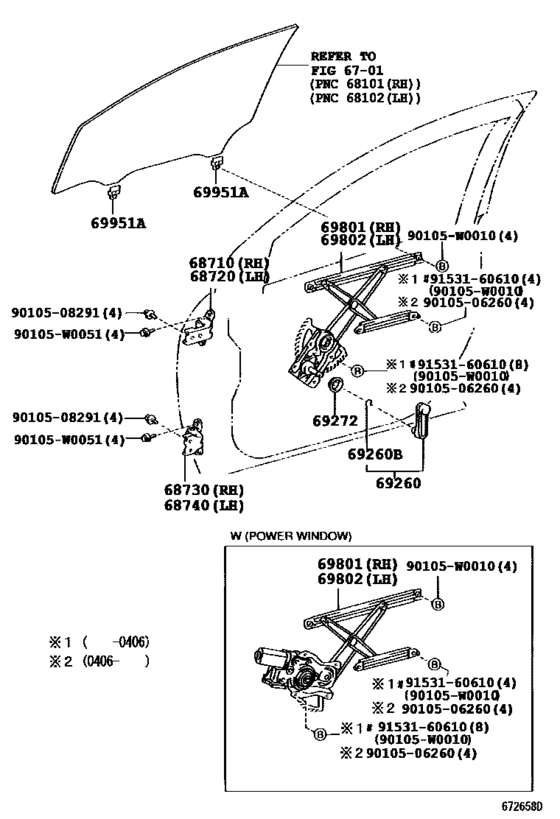

Front Door Window Regulator & Hinge ([01.2002 - ] (0201- )UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-02050
Hinge Assy, Front Door, Upper Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
68710-02050 |
— | ||
|
68720
|
68720
68720-02050
Hinge Assy, Front Door, Upper Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
68720-02050 |
— | ||
|
68730
|
68730
68730-02040
Hinge Assy, Front Door, Lower Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
68730-02040 |
— | ||
|
68740
|
68740
68740-02040
Hinge Assy, Front Door, Lower Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
68740-02040 |
— | ||
|
69801
|
69801
69810-02150
Regulator Sub-Assy, Front Door Window, Rh
[08.2004 -] NDE120..UKP W(POWER WINDOW) |
69810-02150 |
— | ||
|
69802
|
69802
69820-02150
Regulator Sub-Assy, Front Door Window, Lh
[08.2004 -] NDE120..UKP W(POWER WINDOW) |
69820-02150 |
— | ||
|
69951A
|
69951A
69951-16052 Channel, Front Door GlassFRONT DOOR GLASS [06.2004 -] CDE120,NDE120,ZZE12#..UKP |
69951-16052 |
US $6.41 |
||
|
90105W0010
|
90105W0010
90105-W0010 New Genuine Part |
90105-W0010 |
US $1.16 |
||
|
90105W0051
|
90105W0051
90105-W0051
BOLT FLANGE
|
90105-W0051 |
— | ||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.88 |
||
|
9153160610
|
9153160610
91531-60610 New Genuine Part |
91531-60610 |
US $1.76 |
