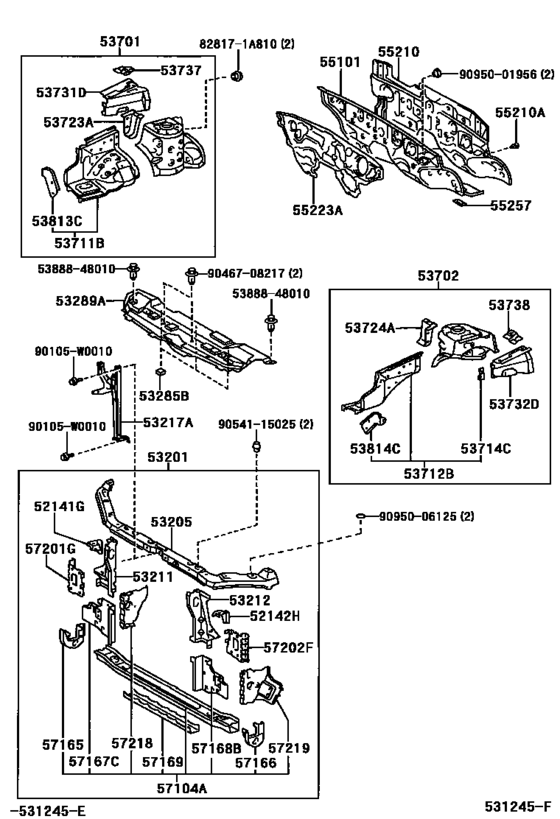

Front Fender Apron & Dash Panel ([01.2002 - ] (0201- )UKP..LHD) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-02080
Stay, Front Bumper, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
52141-02080 |
— | ||
|
52142H
|
52142H
52142-02080
Stay, Front Bumper, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
52142-02080 |
— | ||
|
53201
|
53201
53201-02120
Support Sub-Assy, Radiator
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53201-02120 |
— | ||
|
53205
|
53205
53205-02090
Support Sub-Assy, Radiator, Upper
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53205-02090 |
— | ||
|
53211
|
53211
53211-02090
Support, Radiator, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53211-02090 |
— | ||
|
53212
|
53212
53212-02090
Support, Radiator, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53212-02090 |
— | ||
|
53217A
|
53217A
53208-02080
Brace, Hood Lock Support
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53208-02080 |
— | ||
|
53285B
|
53285B
53155-02020 Seal, Radiator Side Air, No.1[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53155-02020 |
US $7.43 |
||
|
53289A
|
53289A
53289-02010
Cover, Radiator Support Opening
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53289-02010 |
— | ||
|
53701
|
53701
53701-02100
Apron Sub-Assy, Front Fender, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53701-02100 |
— | ||
|
53702
|
53702
53702-02050
Apron Sub-Assy, Front Fender, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53702-02050 |
— | ||
|
53711B
|
53711B
53711-02900
Apron, Front Fender, Front Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53711-02900 |
— | ||
|
53712B
|
53712B
53712-02909
Apron, Front Fender, Front Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53712-02909 |
— | ||
| replacement | |||||
|
53712B
|
53712B
53712-02900
Apron, Front Fender, Front Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53712-02900 |
— | ||
|
53714C
|
53714C
53714-02040
Extension, Front Fender Apron, Front Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53714-02040 |
— | ||
|
53723A
|
53723A
53723-02010
Reinforcement, Front Spring Support, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53723-02010 |
— | ||
|
53724A
|
53724A
53724-02010
Reinforcement, Front Spring Support, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53724-02010 |
— | ||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53731-12160 |
US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-02040
Plate, Front Apron To Cowl Side Member, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53737-02040 |
— | ||
|
53738
|
53738
53738-02030
Plate, Front Apron To Cowl Side Member, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53738-02030 |
— | ||
|
53813C
|
53813C
53813-02020
Extension, Front Fender, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53813-02020 |
— | ||
|
53814C
|
53814C
53814-02010
Extension, Front Fender, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
53814-02010 |
— | ||
|
55101
|
55101
55101-02450
Panel Sub-Assy, Dash
[06.2004 -] CDE120,NDE120,ZZE121..UKP..LHD..WG..5F |
55101-02450 |
— | ||
|
55101
|
55101
55101-02460
Panel Sub-Assy, Dash
[06.2004 -] CDE120,NDE120..UKP..LHD..WG..5F COLD AREA SPEC |
55101-02460 |
— | ||
|
55210
|
55210
55210-02101
Insulator Assy, Dash Panel
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
55210-02101 |
— | ||
|
55210A
|
55210A
90467-11021-01 Piece, Front Bumper[06.2004 -] CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
90467-11021-01 |
US $4.80 |
||
|
55223A
|
55223A
55223-02090
Insulator, Dash Panel, Outer
[06.2004 - 05.2005] CDE120,NDE120,ZZE12#..UKP..LHD |
55223-02090 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-02091
Insulator, Dash Panel, Outer
[06.2004 - 05.2005] CDE120,NDE120,ZZE12#..UKP..LHD |
55223-02091 |
— | ||
|
55223A
|
55223A
55223-02091
Insulator, Dash Panel, Outer
[05.2005 -] CDE120,NDE120,ZZE12#..UKP..LHD |
55223-02091 |
— | ||
|
55257
|
55257
55257-02030
Cover, Dash Panel Opening
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
55257-02030 |
— | ||
|
57104A
|
57104A
57104-02081
Member Sub-Assy, Front Cross
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57104-02081 |
— | ||
|
57165
|
57165
57165-02050
Reinforcement, Front Crossmember, Lower Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57165-02050 |
— | ||
|
57166
|
57166
57166-02040
Reinforcement, Front Crossmember, Lower Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57166-02040 |
— | ||
|
57167C
|
57167C
57167-02050
Gusset, Front Crossmember Side, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57167-02050 |
— | ||
|
57168B
|
57168B
57168-02050
Gusset, Front Crossmember Side, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57168-02050 |
— | ||
|
57169
|
57169
57169-02040
Member, Front Floor, Front Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57169-02040 |
— | ||
|
57201G
|
57201G
57201-02011
Extension Sub-Assy, Front Side Member, Rh
[08.2004 -] CDE120,NDE120,ZZE12#..UKP |
57201-02011 |
— | ||
|
57202F
|
57202F
57202-02011
Extension Sub-Assy, Front Side Member, Lh
[08.2004 -] CDE120,NDE120,ZZE12#..UKP |
57202-02011 |
— | ||
|
57218
|
57218
57218-02041
Gusset, Front Side Member, No.1
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57218-02041 |
— | ||
|
57219
|
57219
57219-02041
Gusset, Front Side Member, No.2
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
57219-02041 |
— | ||
|
90105W0010
|
90105W0010
90105-W0010 New Genuine Part |
90105-W0010 |
US $1.16 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
5388848010
|
5388848010
53888-48010 Spacer, Front Fender |
53888-48010 |
from US $1.83 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.92 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.79 |
||
|
9095001956
|
9095001956
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.60 |
||
|
9095006125
|
9095006125
90950-06125 TAPE SEAL |
90950-06125 |
from US $1.99 |
||
