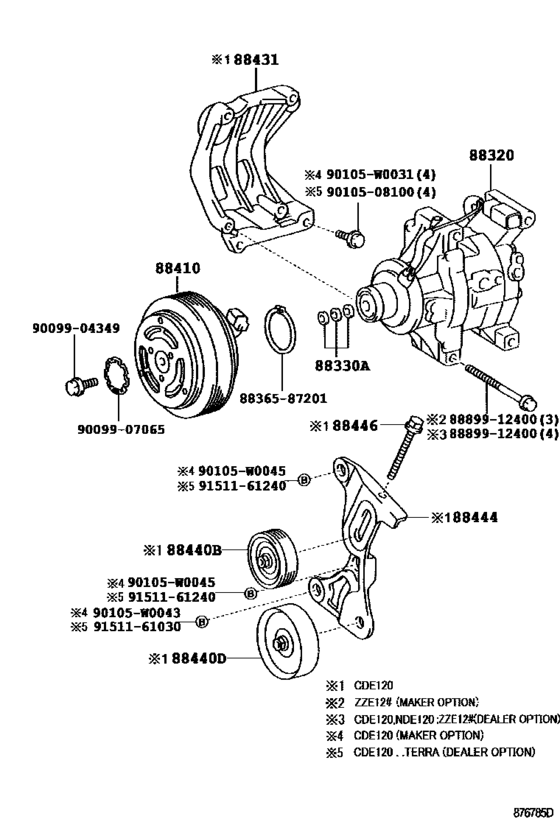

Heating & Air Conditioning - Compressor ([06.2004 - ] (0406- )UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-52420
Compressor Assy, Cooler
[08.2004 -] NDE120..UKP |
88320-52420 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[06.2004 -] NDE120,ZZE12#..UKP; CDE120..UKP MAKER OPTION |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-1A330 Clutch Assy, MagnetMAGNET [08.2004 -] NDE120..UKP |
88410-1A330 |
US $583.86 |
||
|
90105W0031
|
90105W0031
90105-W0031
New Genuine Part
|
90105-W0031 |
— | ||
|
90105W0043
|
90105W0043
90105-W0043
New Genuine Part
|
90105-W0043 |
— | ||
|
90105W0045
|
90105W0045
90105-W0045
New Genuine Part
|
90105-W0045 |
— | ||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
8889912400
|
8889912400
88899-12400
Bolt, Compressor, No.1
|
88899-12400 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.29 |
||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9151161240
|
9151161240
91511-61240
New Genuine Part
|
91511-61240 |
— | ||
| replacement | |||||
|
9151161240
|
9151161240
90091-41202
New Genuine Part
|
90091-41202 |
— | ||
