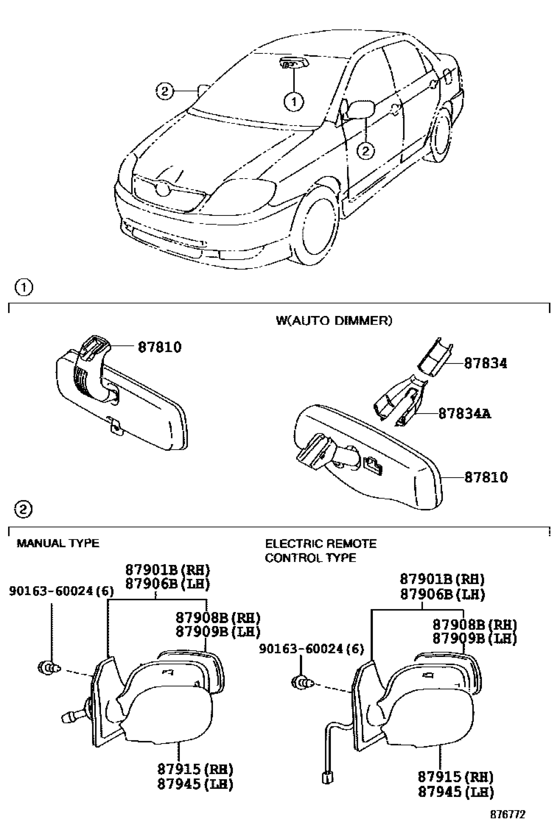

Mirror ([06.2004 - ] (0406- )UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-05021 Mirror Assy, Inner Rear View[07.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA |
87810-05021 |
US $122.30 |
||
|
87901B
|
87901B
87901-02040
Mirror Sub-Assy, Outer Rear View, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD..TERRA |
87901-02040 |
— | ||
|
87901B
|
87901B
87901-02240
Mirror Sub-Assy, Outer Rear View, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87901-02240 |
— | ||
| replacement | |||||
|
87901B
|
87901B
87901-02160
Mirror Sub-Assy, Outer Rear View, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87901-02160 |
— | ||
|
87901B
|
87901B
87901-02250
Mirror Sub-Assy, Outer Rear View, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87901-02250 |
— | ||
| replacement | |||||
|
87901B
|
87901B
87901-02170
Mirror Sub-Assy, Outer Rear View, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87901-02170 |
— | ||
|
87906B
|
87906B
87906-02040
Mirror Sub-Assy, Outer Rear View, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD..TERRA |
87906-02040 |
— | ||
|
87906B
|
87906B
87906-02230
Mirror Sub-Assy, Outer Rear View, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87906-02230 |
— | ||
| replacement | |||||
|
87906B
|
87906B
87906-02150
Mirror Sub-Assy, Outer Rear View, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87906-02150 |
— | ||
|
87906B
|
87906B
87906-02240
Mirror Sub-Assy, Outer Rear View, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87906-02240 |
— | ||
| replacement | |||||
|
87906B
|
87906B
87906-02160
Mirror Sub-Assy, Outer Rear View, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87906-02160 |
— | ||
|
87908B
|
87908B
87908-02370
Mirror Sub-Assy, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD..TERRA |
87908-02370 |
— | ||
|
87908B
|
87908B
87908-02691
Mirror Sub-Assy, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87908-02691 |
— | ||
| replacement | |||||
|
87908B
|
87908B
87908-05280
Mirror Sub-Assy, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87908-05280 |
— | ||
|
87908B
|
87908B
87908-02701
Mirror Sub-Assy, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87908-02701 |
— | ||
| replacement | |||||
|
87908B
|
87908B
87908-05290
Mirror Sub-Assy, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87908-05290 |
— | ||
|
87909B
|
87909B
87909-02370
Mirror Sub-Assy, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD..TERRA |
87909-02370 |
— | ||
|
87909B
|
87909B
87909-02671
Mirror Sub-Assy, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87909-02671 |
— | ||
| replacement | |||||
|
87909B
|
87909B
87909-05280
Mirror Sub-Assy, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR) |
87909-05280 |
— | ||
|
87909B
|
87909B
87909-02681
Mirror Sub-Assy, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87909-02681 |
— | ||
| replacement | |||||
|
87909B
|
87909B
87909-05290
Mirror Sub-Assy, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
87909-05290 |
— | ||
|
87915
|
87915
87915-02905
Cover, Outer Mirror, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP W(ELECTRIC REMOTE CONTOROL MIRROR) |
87915-02905 |
— | ||
| replacement | |||||
|
87915
|
87915
87915-05901 Cover, Outer Mirror, RhOUTER MIRROR, RH [06.2004 -] CDE120,NDE120,ZZE12#..UKP W(ELECTRIC REMOTE CONTOROL MIRROR) |
87915-05901 |
from US $34.96 |
||
|
87915
|
87915
87915-05010
Cover, Outer Mirror, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA |
87915-05010 |
— | ||
|
87945
|
87945
87945-02905
Cover, Outer Mirror, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP W(ELECTRIC REMOTE CONTOROL MIRROR) |
87945-02905 |
— | ||
| replacement | |||||
|
87945
|
87945
87945-05901 Cover, Outer Mirror, LhOUTER MIRROR, LH [06.2004 -] CDE120,NDE120,ZZE12#..UKP W(ELECTRIC REMOTE CONTOROL MIRROR) |
87945-05901 |
from US $35.22 |
||
|
87945
|
87945
87945-05010
Cover, Outer Mirror, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..TERRA |
87945-05010 |
— | ||
|
9016360024
|
9016360024
90163-60024 SCREW HEXAGON |
90163-60024 |
US $0.96 |
||
