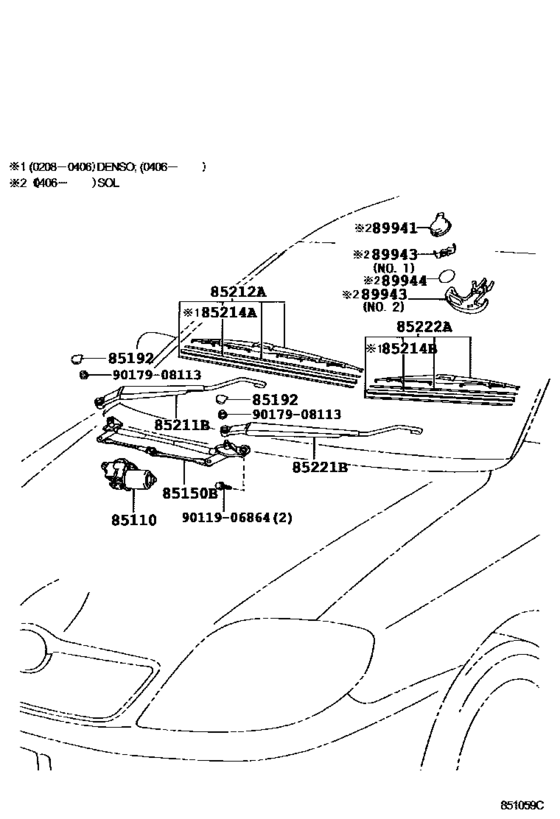

Windshield Wiper ([01.2002 - ] (0201- )UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- NDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-02150
Motor Assy, Windshield Wiper
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85110-02150 |
— | ||
|
85150B
|
85150B
85150-02130
Link Assy, Wiper
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85150-02130 |
— | ||
|
85192
|
85192
85292-02020
Cover, Windshield Wiper Arm
[06.2004 -] CDE120,NDE120,ZZE12#..UKP |
85292-02020 |
— | ||
|
85211B
|
85211B
85211-02160
Arm, Front Wiper, Rh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85211-02160 |
— | ||
|
85212A
|
85212A
85212-02160
Blade, Fr Wiper, Rh
[06.2004 - 10.2006] CDE120,NDE120,ZZE12#..UKP..LHD |
85212-02160 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-02161
Blade, Fr Wiper, Rh
[06.2004 - 10.2006] CDE120,NDE120,ZZE12#..UKP..LHD |
85212-02161 |
— | ||
|
85212A
|
85212A
85212-02161
Blade, Fr Wiper, Rh
[11.2006 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85212-02161 |
— | ||
|
85214A
|
85214A
85214-02210
Rubber, Wiper, Lh
[06.2004 - 10.2006] CDE120,NDE120,ZZE12#..UKP..LHD |
85214-02210 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-02211 Rubber, Wiper, Lh[06.2004 - 10.2006] CDE120,NDE120,ZZE12#..UKP..LHD |
85214-02211 |
US $9.61 |
||
|
85214A
|
85214A
85214-02211 Rubber, Wiper, Lh[11.2006 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85214-02211 |
US $9.61 |
||
|
85214B
|
85214B
85214-05080 Rubber, Wiper, Rh[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85214-05080 |
US $16.57 |
||
|
85221B
|
85221B
85221-02170
Arm, Front Wiper, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85221-02170 |
— | ||
|
85222A
|
85222A
85222-02170
Blade, Fr Wiper, Lh
[06.2004 -] CDE120,NDE120,ZZE12#..UKP..LHD |
85222-02170 |
— | ||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $1.92 |
||
