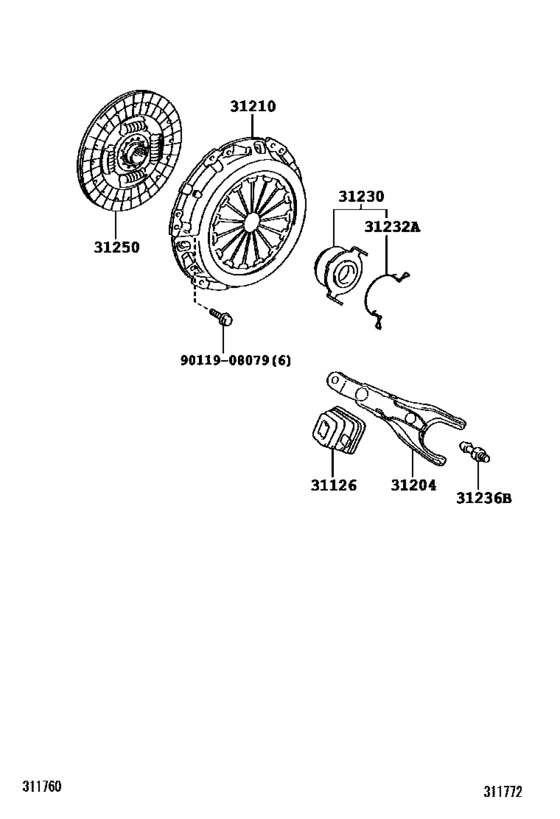

Clutch & Release Fork ([11.2006 - 12.2008] (0611-0812)5F) Diagram Toyota COROLLA
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 12.2008
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[11.2006 - 12.2008] NDE150,ZRE151,ZZE150..5F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-52010 Fork Sub-Assy, Clutch Release[11.2006 - 12.2008] NDE150,ZRE151..5F |
31204-52010 |
from US $21.58 |
||
|
31210
|
31210
31210-12290 Cover Assy, ClutchCLUTCH [11.2006 - 02.2007] NDE150..5F |
31210-12290 |
US $154.34 |
||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [11.2006 - 02.2007] NDE150..5F |
31210-12291 |
from US $150.15 |
||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [03.2007 - 12.2008] NDE150..5F |
31210-12291 |
from US $150.15 |
||
|
31230
|
31230
31230-12180
Bearing Assy, Clutch Release
[11.2006 - 12.2008] NDE150..5F |
31230-12180 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12181 Bearing Assy, Clutch Release[11.2006 - 12.2008] NDE150..5F |
31230-12181 |
from US $35.84 |
||
|
31232A
|
31232A
31232-12080 Clip, Release Bearing Hub[11.2006 - 12.2008] NDE150..5F |
31232-12080 |
US $2.08 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[11.2006 - 12.2008] NDE150,ZRE151,ZZE150 |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-12520
Disc Assy, Clutch
[11.2006 - 12.2008] NDE150..5F |
31250-12520 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
