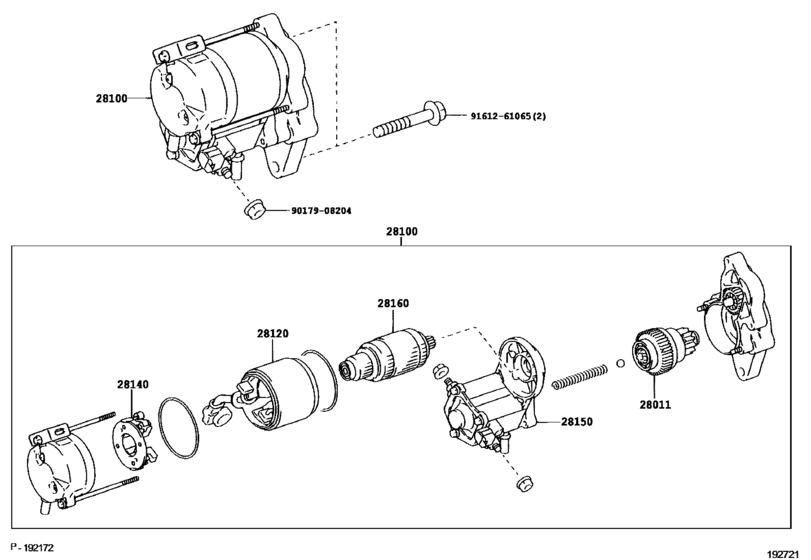

Starter ([11.2006 - 12.2008] 12V 1.4KW,2.0KW (0611-0812)1NDTV) Diagram Toyota COROLLA
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 12.2008
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-55050 Clutch Sub-Assy, Starter[11.2006 - 12.2008] 1NDTV..NDE150 |
28011-55050 |
US $286.83 |
||
|
28011
|
28011
28011-55060 Clutch Sub-Assy, Starter[11.2006 - 12.2008] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28011-55060 |
US $345.07 |
||
|
28100
|
28100
28100-33070 Starter Assy[11.2006 - 12.2008] 1NDTV..NDE150 12V 1.4KW |
28100-33070 |
US $1,046.86 |
||
| replacement | |||||
|
28100
|
28100
28100-33071
Starter Assy
[11.2006 - 12.2008] 1NDTV..NDE150 12V 1.4KW |
28100-33071 |
— | ||
|
28100
|
28100
28100-33080 Starter Assy[11.2006 - 12.2008] 1NDTV..NDE150..LHD 12V 2.0KW,COLD AREA SPEC; 1NDTV..NDE150 12V 2.0KW,SUB COLD AREA SPEC |
28100-33080 |
US $1,645.28 |
||
|
28120
|
28120
28120-54380
Yoke Assy, Starter
[11.2006 - 12.2008] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28120-54380 |
— | ||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[11.2006 - 12.2008] 1NDTV..NDE150 |
28120-55050 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[11.2006 - 12.2008] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[11.2006 - 12.2008] 1NDTV..NDE150 |
28140-64130 |
— | ||
|
28150
|
28150
28150-33040 Switch Assy, Magnet Starter[11.2006 - 12.2008] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28150-33040 |
US $283.92 |
||
|
28150
|
28150
28150-46220 Switch Assy, Magnet Starter[11.2006 - 12.2008] 1NDTV..NDE150 |
28150-46220 |
US $215.49 |
||
|
28160
|
28160
28160-54380 Armature Assy, Starter[11.2006 - 12.2008] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28160-54380 |
US $164.35 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[11.2006 - 12.2008] 1NDTV..NDE150 |
28160-74070 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
