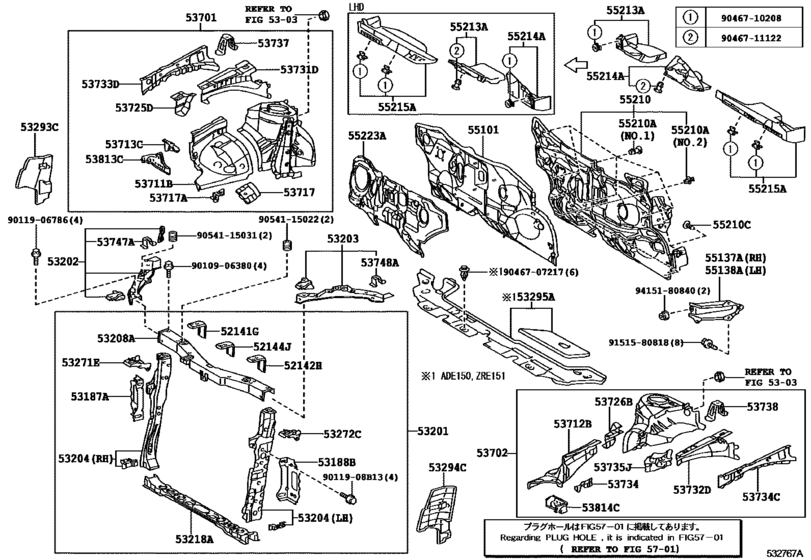

Front Fender Apron & Dash Panel ([02.2008 - ] (0802- )) Diagram Toyota COROLLA
- Year
- 2009 - 2013
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52081-02080
Stay, Front Bumper, Rh
[02.2009 - 07.2010] NDE150..DCRL |
52081-02080 |
— | ||
|
52142H
|
52142H
52082-02080
Stay, Front Bumper, Lh
[02.2009 - 07.2010] NDE150..DCRL |
52082-02080 |
— | ||
|
52144J
|
52144J
52085-02040
Stay, Front Bumper, Center
[02.2009 - 07.2010] NDE150..DCRL |
52085-02040 |
— | ||
|
53187A
|
53187A
53187-12030 Stay, Radiator Support, Rh[02.2009 - 07.2010] NDE150..DCRL |
53187-12030 |
from US $18.79 |
||
|
53188B
|
53188B
53188-12030 Stay, Radiator Support, Lh[02.2009 - 07.2010] NDE150..DCRL |
53188-12030 |
from US $18.79 |
||
|
53201
|
53201
53201-02903
Support Sub-Assy, Radiator
[02.2009 - 07.2010] NDE150..DCRL |
53201-02903 |
— | ||
|
53202
|
53202
53202-12490 Support Sub-Assy, Radiator, RhRADIATOR, RH [02.2009 - 07.2010] NDE150..DCRL |
53202-12490 |
US $30.87 |
||
|
53203
|
53203
53203-12440 Support Sub-Assy, Radiator, LhRADIATOR, LH [02.2009 - 07.2010] NDE150..DCRL |
53203-12440 |
US $30.87 |
||
|
53204
|
53204
53204-12060 Brace Sub-Assy, Radiator Support To Cross Member[02.2009 - 07.2010] NDE150..DCRL LH |
53204-12060 |
from US $73.09 |
||
|
53204
|
53204
53209-12140 Brace Sub-Assy, Radiator Support To Cross Member[02.2009 - 07.2010] NDE150..DCRL RH |
53209-12140 |
US $77.88 |
||
|
53208A
|
53208A
53208-12560 Support Sub-Assy, Hood Lock[02.2009 - 07.2010] NDE150..DCRL |
53208-12560 |
from US $122.76 |
||
|
53218A
|
53218A
53218-12901 Support, Radiator, Lower[02.2009 - 07.2010] NDE150..DCRL |
53218-12901 |
from US $79.20 |
||
|
53271E
|
53271E
53271-12070
Bracket, Headlamp Mounting, Rh
[02.2009 - 07.2010] NDE150..DCRL |
53271-12070 |
— | ||
|
53272C
|
53272C
53272-12040
Bracket, Headlamp Mounting, Lh
[02.2009 - 07.2010] NDE150..DCRL |
53272-12040 |
— | ||
|
53293C
|
53293C
53293-02040
Deflector, Radiator Side, Rh
[02.2009 - 07.2010] NDE150..DCRL |
53293-02040 |
— | ||
|
53293C
|
53293C
53293-02090
Deflector, Radiator Side, Rh
[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
53293-02090 |
— | ||
|
53294C
|
53294C
53294-02040
Deflector, Radiator Side, Lh
[02.2009 - 07.2010] NDE150..DCRL |
53294-02040 |
— | ||
|
53294C
|
53294C
53294-02090
Deflector, Radiator Side, Lh
[06.2010 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
53294-02090 |
— | ||
|
53701
|
53701
53701-02110
Apron Sub-Assy, Front Fender, Rh
[02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
53701-02110 |
— | ||
|
53702
|
53702
53702-02100
Apron Sub-Assy, Front Fender, Lh
[02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
53702-02100 |
— | ||
|
53711B
|
53711B
53711-02070
Apron, Front Fender, Front Rh
[02.2009 - 07.2010] NDE150..DCRL |
53711-02070 |
— | ||
|
53712B
|
53712B
53712-02120
Apron, Front Fender, Front Lh
[02.2009 - 07.2010] NDE150..DCRL |
53712-02120 |
— | ||
|
53713C
|
53713C
53713-12160 Extension Sub-Assy, Front Fender Apron, Front Rh[02.2009 - 07.2010] NDE150..DCRL |
53713-12160 |
US $7.02 |
||
|
53717
|
53717
53717-12070 Plate, Fender Apron, Rh[02.2009 - 07.2010] NDE150..DCRL |
53717-12070 |
US $16.31 |
||
|
53717A
|
53717A
53718-12060 Plate, Fender Apron[02.2009 - 07.2010] NDE150..DCRL |
53718-12060 |
US $4.37 |
||
|
53725D
|
53725D
53725-12040 Reinforcement, Front Spring Support, No.2 Rh[02.2009 - 07.2010] NDE150..DCRL |
53725-12040 |
from US $15.90 |
||
|
53726B
|
53726B
53726-12040 Reinforcement, Front Spring Support, No.2 Lh[02.2009 - 07.2010] NDE150..DCRL |
53726-12040 |
US $14.52 |
||
|
53731D
|
53731D
53731-12170 Member, Front Apron To Cowl Side, Upper Rh[02.2009 - 07.2010] NDE150..DCRL |
53731-12170 |
US $42.81 |
||
|
53732D
|
53732D
53732-12150 Member, Front Apron To Cowl Side, Upper Lh[02.2009 - 07.2010] NDE150..DCRL |
53732-12150 |
US $44.12 |
||
|
53733D
|
53733D
53733-12070 Member, Front Apron To Cowl Side, Lower Front Rh[02.2009 - 07.2010] NDE150..DCRL |
53733-12070 |
US $23.72 |
||
|
53734
|
53734
53736-12070 Patch, Front Fender Apron[02.2009 - 07.2010] NDE150..DCRL |
53736-12070 |
US $6.84 |
||
|
53734C
|
53734C
53734-12070 Member, Front Apron To Cowl Side, Lower Front Lh[02.2009 - 07.2010] NDE150..DCRL |
53734-12070 |
US $23.72 |
||
|
53735J
|
53735J
53735-12070 Patch, Front Fender Apron, No.5[02.2009 - 07.2010] NDE150..DCRL |
53735-12070 |
US $8.01 |
||
|
53737
|
53737
53737-12080
Plate, Front Apron To Cowl Side Member, Rh
[02.2009 - 07.2010] NDE150..DCRL |
53737-12080 |
— | ||
|
53738
|
53738
53737-12080
Plate, Front Apron To Cowl Side Member, Rh
[02.2009 - 07.2010] NDE150..DCRL |
53737-12080 |
— | ||
|
53747A
|
53747A
53747-12030 Extension, Apron Fender Side, RhAPRON FENDER SIDE, RH [02.2009 - 07.2010] NDE150..DCRL |
53747-12030 |
US $3.64 |
||
|
53748A
|
53748A
53748-12040 Extension, Apron Fender Side, LhAPRON FENDER SIDE, LH [02.2009 - 07.2010] NDE150..DCRL |
53748-12040 |
US $3.64 |
||
|
53813C
|
53813C
53813-12110 Extension, Front Fender, RhFRONT FENDER, RH [02.2009 - 07.2010] NDE150..DCRL |
53813-12110 |
US $13.78 |
||
|
53814C
|
53814C
53814-12060 Extension, Front Fender, LhFRONT FENDER, LH [02.2009 - 07.2010] NDE150..DCRL |
53814-12060 |
US $14.36 |
||
|
55101
|
55101
55101-02750
Panel Sub-Assy, Dash
[02.2009 - 07.2010] NDE150..LHD..6F;ADE150,NRE150,ZRE151..LHD..6F..(DCRL,HTWC,HTWVM) |
55101-02750 |
— | ||
|
55137A
|
55137A
55137-02040
Brace, Dash To Frame, Rh
[02.2009 - 07.2010] NDE150..DCRL |
55137-02040 |
— | ||
|
55138A
|
55138A
55138-02030
Brace, Dash To Frame, Lh
[02.2009 - 07.2010] NDE150..DCRL |
55138-02030 |
— | ||
|
55210
|
55210
55210-02210
Insulator Assy, Dash Panel
[02.2009 - 07.2010] NDE150..LHD..DCRL |
55210-02210 |
— | ||
|
55210A
|
55210A
90467-11122 Clip[02.2009 - 07.2010] NDE150..DCRL NO.1:REFER ILLUST. |
90467-11122 |
US $1.24 |
||
|
55210A
|
55210A
90467-11127 Clip[02.2009 - 07.2010] NDE150..DCRL NO.2:REFER ILLUST. |
90467-11127 |
US $1.51 |
||
|
55210C
|
55210C
90467-08186-C0 Clip(For Front Bumper), No.1[02.2009 - 07.2010] NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM BLACK |
90467-08186-C0 |
from US $0.84 |
||
|
55213A
|
55213A
55213-02180
Pad, Dash Panel Silencer
[02.2009 - 07.2010] NDE150..LHD..DCRL |
55213-02180 |
— | ||
|
55214A
|
55214A
55214-02030
Pad, Dash Panel Insulator, No.2
[02.2009 - 07.2010] NDE150..LHD..DCRL |
55214-02030 |
— | ||
|
55215A
|
55215A
55215-02030
Pad, Dash Panel Insulator, No.3
[02.2009 - 07.2010] NDE150..LHD..DCRL |
55215-02030 |
— | ||
|
55223A
|
55223A
55223-02180
Insulator, Dash Panel, Outer
[02.2009 - 07.2010] NDE150..LHD..DCRL |
55223-02180 |
— | ||
|
9011908B13
|
9011908B13
90119-08B13 BOLT WWASHER |
90119-08B13 |
US $1.10 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.69 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.10 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $0.76 |
||
|
9046710208
|
9046710208
90467-10208 Clip |
90467-10208 |
US $1.10 |
||
|
9046711122
|
9046711122
90467-11122 Clip |
90467-11122 |
US $1.24 |
||
|
9054115022
|
9054115022
90541-15022 Cushion, Radiator Support |
90541-15022 |
US $3.72 |
||
|
9054115031
|
9054115031
90541-15031 Cushion, Radiator Support |
90541-15031 |
US $2.75 |
||
|
9151580818
|
9151580818
91515-80818 New Genuine Part |
91515-80818 |
US $1.02 |
||
|
9415180840
|
9415180840
94151-80840 NUT FLANGE |
94151-80840 |
from US $0.72 |
