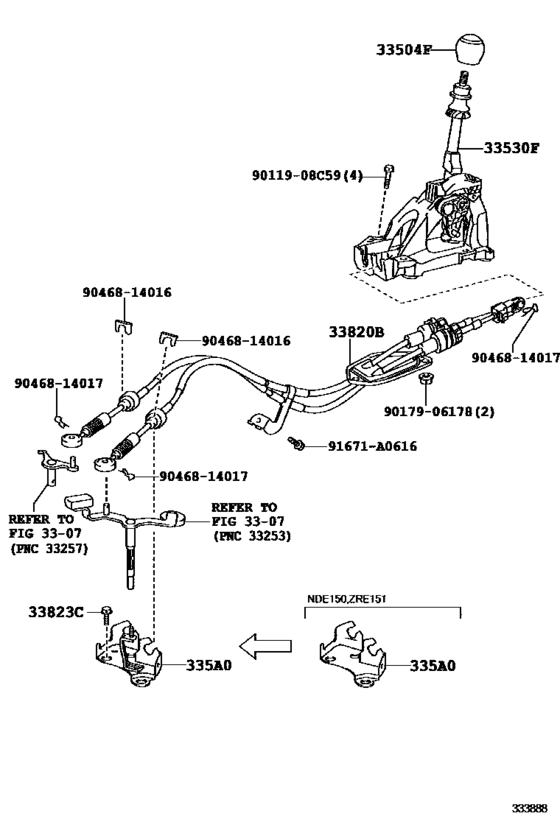

Shift Lever & Retainer ([02.2009 - ] (0902- )NDE150,NRE150,ZRE151..6F) Diagram Toyota COROLLA
- Year
- 2009 - 2013
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
335A0
|
335A0
335A0-0D010
Bracket Assy, Control Cable
[05.2011 - 06.2013] NDE150,ZRE151..6F *202; NDE150..D;NDE150..LHD..6F..N ECO,*202 |
335A0-0D010 |
— | ||
|
335A0
|
335A0
335A0-20010 Bracket Assy, Control CableCONTROL CABLE [02.2009 - 07.2010] NDE150..6F..DCRL *202,*201 |
335A0-20010 |
US $23.06 |
||
|
33504F
|
33504F
33504-02140-B1
Knob Sub-Assy, Shift Lever
[02.2009 - 01.2010] NDE150,NRE150,ZRE151..6F..D DK.GRAY,TRIM1# |
33504-02140-B1 |
— | ||
|
33504F
|
33504F
33504-02141-B1
Knob Sub-Assy, Shift Lever
[02.2010 - 07.2010] NDE150,NRE150,ZRE151..6F..D DK.GRAY,TRIM1# |
33504-02141-B1 |
— | ||
|
33504F
|
33504F
33504-02150-B1
Knob Sub-Assy, Shift Lever
[02.2009 - 01.2010] NDE150..6F..N;ADE150,NRE150,ZRE151..6F..N..(DCRL,HTWC,HTWVM) DK.GRAY,TRIM1#; NDE150,NRE150,ZRE151..6F..D SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1# |
33504-02150-B1 |
— | ||
|
33504F
|
33504F
33504-02151-B1
Knob Sub-Assy, Shift Lever
[02.2010 - 07.2010] NDE150..LHD..6F..N;ADE150,NRE150,ZRE151..6F..N DK.GRAY,TRIM1#; NDE150,NRE150,ZRE151..6F..D SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1# |
33504-02151-B1 |
— | ||
|
33530F
|
33530F
33530-12A61
Lever Assy, Shift (For Floor Shift)
[02.2009 - 07.2010] NDE150..LHD..6F..DCRL |
33530-12A61 |
— | ||
|
33820B
|
33820B
33820-12E70 Cable Assy, Transmission ControlTRANSMISSION CONTROL [02.2009 - 07.2010] NDE150..6F..DCRL |
33820-12E70 |
US $230.63 |
||
|
33823C
|
33823C
90119-08C60 Bolt (For Transmission Control Cable Bracket)[02.2009 - 07.2010] NDE150..6F..DCRL *202,*201 |
90119-08C60 |
US $1.60 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.66 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.94 |
