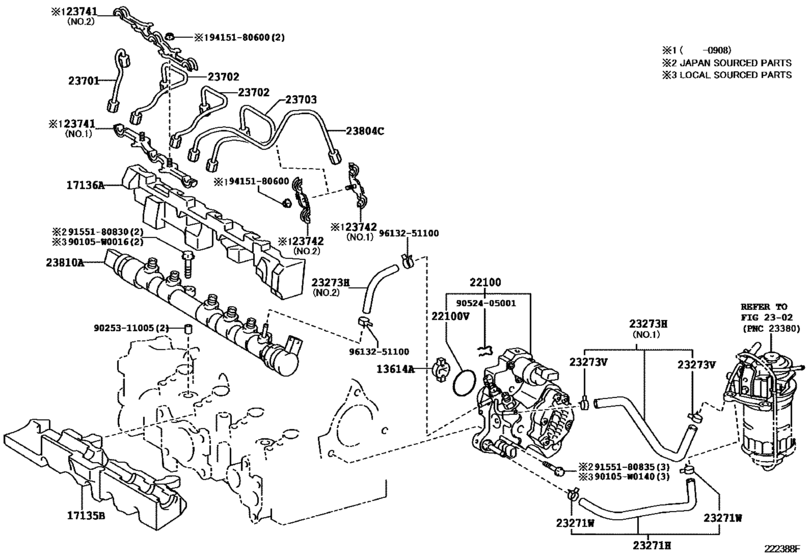

Injection Pump Assembly ([02.2009 - ] (0902- )1NDTV) Diagram Toyota COROLLA
- Year
- 2009 - 2013
- Sales region
- General
- Frame
- NDE150
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13614A
|
13614A
13614-0N010
Coupling, Supply Pump Drive
[08.2010 - 06.2013] 1NDTV..NDE150 (L),*251 |
13614-0N010 |
— | ||
|
13614A
|
13614A
13614-33010 Coupling, Supply Pump Drive[02.2009 - 06.2010] 1NDTV..NDE150 |
13614-33010 |
US $18.05 |
||
|
17135B
|
17135B
17135-0N010
Insulator, Intake Manifold, No.1
[05.2012 - 06.2013] 1NDTV..NDE150 (L),*251 |
17135-0N010 |
— | ||
|
17135B
|
17135B
17135-33010
Insulator, Intake Manifold, No.1
[02.2009 - 04.2010] 1NDTV..NDE150 |
17135-33010 |
— | ||
| replacement | |||||
|
17135B
|
17135B
17135-33012
Insulator, Intake Manifold, No.1
[02.2009 - 04.2010] 1NDTV..NDE150 |
17135-33012 |
— | ||
|
17135B
|
17135B
17135-33011 Insulator, Intake Manifold, No.1INTAKE MANIFOLD, NO.1 [04.2010 - 06.2010] 1NDTV..NDE150 |
17135-33011 |
US $25.19 |
||
| replacement | |||||
|
17135B
|
17135B
17135-33012
Insulator, Intake Manifold, No.1
[04.2010 - 06.2010] 1NDTV..NDE150 |
17135-33012 |
— | ||
|
17136A
|
17136A
17136-0N010
Insulator, Intake Manifold, No.2
[05.2012 - 06.2013] 1NDTV..NDE150 (L),*251 |
17136-0N010 |
— | ||
|
17136A
|
17136A
17136-33010 Insulator, Intake Manifold, No.2INTAKE MANIFOLD, NO.2 [02.2009 - 06.2010] 1NDTV..NDE150 |
17136-33010 |
US $22.86 |
||
|
22100
|
22100
22100-0W010
Pump Assy, Injection Or Supply
[09.2010 - 02.2012] 1NDTV..NDE150 (L),*251 |
22100-0W010 |
— | ||
|
22100
|
22100
22100-33050 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [02.2009 - 06.2010] 1NDTV..NDE150 |
22100-33050 |
US $2,052.96 |
||
|
22100V
|
22100V
96723-35044 Ring, O(For Injection Pump)[02.2009 - 06.2010] 1NDTV..NDE150 |
96723-35044 |
from US $3.02 |
||
|
23271H
|
23271H
23271-0N030
Hose, Fuel, No.1
[06.2009 - 06.2010] 1NDTV..NDE150 |
23271-0N030 |
— | ||
|
23271H
|
23271H
23271-33090
Hose, Fuel, No.1
[02.2009 - 06.2009] 1NDTV..NDE150 |
23271-33090 |
— | ||
|
23271W
|
23271W
96132-51300 Clip(For Ventilation Hose No.2)[02.2009 - 06.2009] 1NDTV..NDE150 |
96132-51300 |
from US $1.92 |
||
|
23273H
|
23273H
23273-0N020
Hose, Fuel, No.2
[12.2011 - 06.2013] 1NDTV..NDE150 *251,(L),NO.2 |
23273-0N020 |
— | ||
|
23273H
|
23273H
23273-0N030
Hose, Fuel, No.2
[06.2009 - 06.2010] 1NDTV..NDE150 NO.1 |
23273-0N030 |
— | ||
|
23273H
|
23273H
23273-33090 Hose, Fuel, No.2FUEL, NO.2 [02.2009 - 06.2010] 1NDTV..NDE150 NO.2 |
23273-33090 |
US $5.24 |
||
|
23273H
|
23273H
23273-33120
Hose, Fuel, No.2
[02.2009 - 06.2009] 1NDTV..NDE150 NO.1 |
23273-33120 |
— | ||
|
23273V
|
23273V
96132-51100 Clip (For Hose)[02.2009 - 06.2009] 1NDTV..NDE150 |
96132-51100 |
from US $1.79 |
||
|
23701
|
23701
23701-33040 Pipe Sub-Assy, Injection, No.1INJECTION, NO.1 [02.2009 - 06.2010] 1NDTV..NDE150 |
23701-33040 |
US $24.17 |
||
|
23702
|
23702
23702-33010 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [02.2009 - 06.2010] 1NDTV..NDE150 |
23702-33010 |
US $24.17 |
||
|
23703
|
23703
23703-33010 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [02.2009 - 06.2010] 1NDTV..NDE150 |
23703-33010 |
US $24.17 |
||
|
23741
|
23741
23741-33030
Clamp, Injection Pipe, No.1
[02.2009 - 08.2009] 1NDTV..NDE150 NO.1 |
23741-33030 |
— | ||
|
23741
|
23741
23741-33040
Clamp, Injection Pipe, No.1
[02.2009 - 08.2009] 1NDTV..NDE150 NO.2 |
23741-33040 |
— | ||
|
23742
|
23742
23742-33030
Clamp, Injection Pipe, No.2
[02.2009 - 08.2009] 1NDTV..NDE150 NO.1 |
23742-33030 |
— | ||
|
23742
|
23742
23742-33040
Clamp, Injection Pipe, No.2
[02.2009 - 08.2009] 1NDTV..NDE150 NO.2 |
23742-33040 |
— | ||
|
23804C
|
23804C
23804-33020 Pipe Sub-Assy, Fuel InletFUEL INLET [02.2009 - 06.2010] 1NDTV..NDE150 |
23804-33020 |
US $32.18 |
||
|
23810A
|
23810A
23810-33030 Rail Assy, CommonCOMMON [02.2009 - 06.2010] 1NDTV..NDE150 |
23810-33030 |
US $516.88 |
||
| replacements | |||||
|
23810A
|
23810A
17135-33012
Insulator, Intake Manifold, No.1
[02.2009 - 06.2010] 1NDTV..NDE150 |
17135-33012 |
— | ||
|
23810A
|
23810A
23810-33031 Rail Assy, Common[02.2009 - 06.2010] 1NDTV..NDE150 |
23810-33031 |
US $503.19 |
||
|
90105W0016
|
90105W0016
90105-W0016
New Genuine Part
|
90105-W0016 |
— | ||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $0.96 |
||
|
9052405001
|
9052405001
90524-05001 New Genuine Part |
90524-05001 |
US $1.02 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.79 |
||
