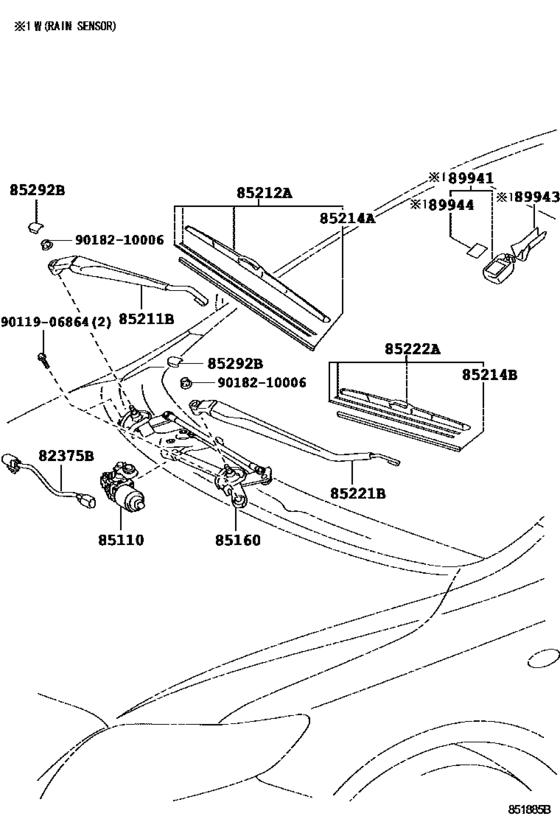

Windshield Wiper ([11.2006 - ] (0611- )RHD) Diagram Toyota COROLLA
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 12.2008
- To
- 02.2010
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-12310
Wire, Wiper Motor
[12.2008 - 05.2009] NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
82375-12310 |
— | ||
| replacement | |||||
|
82375B
|
82375B
82375-12311
Wire, Wiper Motor
[12.2008 - 05.2009] NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
82375-12311 |
— | ||
|
82375B
|
82375B
82375-12311
Wire, Wiper Motor
[06.2009 - 02.2010] ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
82375-12311 |
— | ||
|
85110
|
85110
85110-12A30 Motor Assy, Windshield Wiper[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85110-12A30 |
US $283.92 |
||
|
85160
|
85160
85150-12A40
Link Assy, Windshield Wiper
[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85150-12A40 |
— | ||
|
85211B
|
85211B
85211-12530
Arm, Front Wiper, Rh
[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85211-12530 |
— | ||
|
85212A
|
85212A
85212-12480 Blade, Fr Wiper, Rh[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85212-12480 |
from US $65.21 |
||
|
85214A
|
85214A
85214-68020 Rubber, Wiper, Rh[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85214-68020 |
US $9.83 |
||
| replacement | |||||
|
85214A
|
85214A
85214-52110 Rubber, Wiper, Rh[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85214-52110 |
from US $14.40 |
||
|
85214B
|
85214B
85214-68030 Rubber, Wiper, Lh[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85214-68030 |
from US $7.29 |
||
|
85221B
|
85221B
85221-12470
Arm, Front Wiper, Lh
[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85221-12470 |
— | ||
|
85222A
|
85222A
85222-12860 Blade, Fr Wiper, Lh[12.2008 - 02.2010] ZRE151..RHD..D;ADE150,NDE150..RHD..DCRL |
85222-12860 |
US $22.50 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[12.2008 - 02.2010] ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
85292-13010 |
from US $4 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
from US $1.01 |
||
