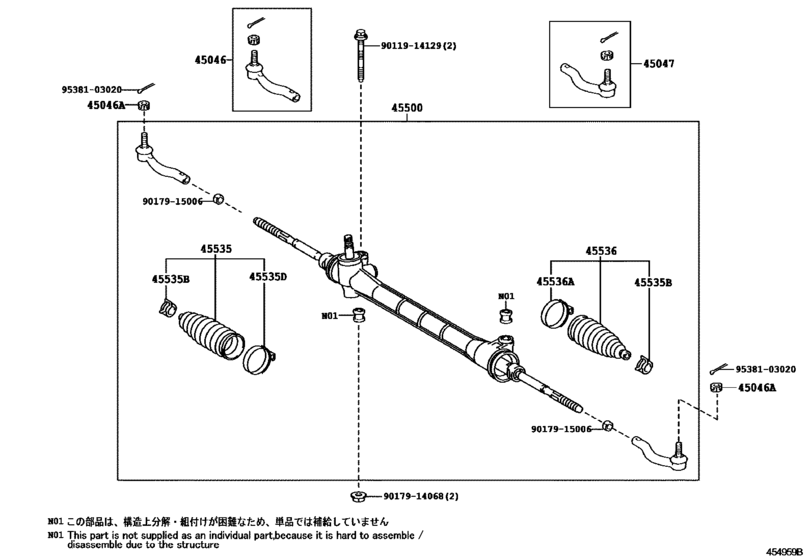

Front Steering Gear & Link ([02.2008 - ] (0802- )RHD) Diagram Toyota COROLLA
- Year
- 2009 - 2013
- Sales region
- Europe
- Frame
- NDE150
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- COROLLA (S.AFRICA)
- From
- 02.2009
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09570 End Sub-Assy, Tie Rod, RhTIE ROD, RH [02.2009 - 07.2010] NDE150..DCRL |
45046-09570 |
from US $46.06 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[02.2009 - 07.2010] NDE150..DCRL |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-09270 End Sub-Assy, Tie Rod, LhTIE ROD, LH [02.2009 - 07.2010] NDE150..DCRL |
45047-09270 |
US $53.88 |
||
|
45500
|
45500
45500-02110
Link Assy, Steering
[02.2009 - 07.2010] NDE150..RHD..DCRL |
45500-02110 |
— | ||
| replacements | |||||
|
45500
|
45500
45046-09570 End Sub-Assy, Tie Rod, RhTIE ROD, RH [02.2009 - 07.2010] NDE150..RHD..DCRL |
45046-09570 |
from US $46.06 |
||
|
45500
|
45500
45047-09270 End Sub-Assy, Tie Rod, LhTIE ROD, LH [02.2009 - 07.2010] NDE150..RHD..DCRL |
45047-09270 |
US $53.88 |
||
|
45500
|
45500
45510-02520
Gear Assy, Steering
[02.2009 - 07.2010] NDE150..RHD..DCRL |
45510-02520 |
— | ||
|
45500
|
45500
90179-15006 Nut[02.2009 - 07.2010] NDE150..RHD..DCRL |
90179-15006 |
from US $1.19 |
||
|
45500
|
45500
45500-02330
Link Assy, Steering
[04.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151..RHD |
45500-02330 |
— | ||
| replacements | |||||
|
45500
|
45500
45046-09570 End Sub-Assy, Tie Rod, RhTIE ROD, RH [04.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151..RHD |
45046-09570 |
from US $46.06 |
||
|
45500
|
45500
45047-09270 End Sub-Assy, Tie Rod, LhTIE ROD, LH [04.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151..RHD |
45047-09270 |
US $53.88 |
||
|
45500
|
45500
45510-02520
Gear Assy, Steering
[04.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151..RHD |
45510-02520 |
— | ||
|
45500
|
45500
90179-15006 Nut[04.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151..RHD |
90179-15006 |
from US $1.19 |
||
|
45535
|
45535
45535-09120 Boot, Steering Rack, No.1STEERING RACK, NO.1 [02.2009 - 07.2010] NDE150..DCRL |
45535-09120 |
US $13.24 |
||
|
45535B
|
45535B
45537-02010 Clip(For Steering Rack Boot)[02.2009 - 07.2010] NDE150..DCRL |
45537-02010 |
US $2.62 |
||
|
45535D
|
45535D
45538-47010 Clamp(For Steering Rack Boot)[02.2009 - 07.2010] NDE150..DCRL |
45538-47010 |
from US $4.32 |
||
|
45536
|
45536
45535-09120 Boot, Steering Rack, No.1STEERING RACK, NO.1 [02.2009 - 07.2010] NDE150..DCRL |
45535-09120 |
US $13.24 |
||
|
45536A
|
45536A
45538-47010 Clamp(For Steering Rack Boot)[02.2009 - 07.2010] NDE150..DCRL |
45538-47010 |
from US $4.32 |
||
|
9011914129
|
9011914129
90119-14129 Bolt, Steering Rack Housing |
90119-14129 |
US $6.88 |
||
|
9017914068
|
9017914068
90179-14068 Nut(For Front Suspension Lower Arm) |
90179-14068 |
from US $1.21 |
||
|
9017915006
|
9017915006
90179-15006 Nut |
90179-15006 |
from US $1.19 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
