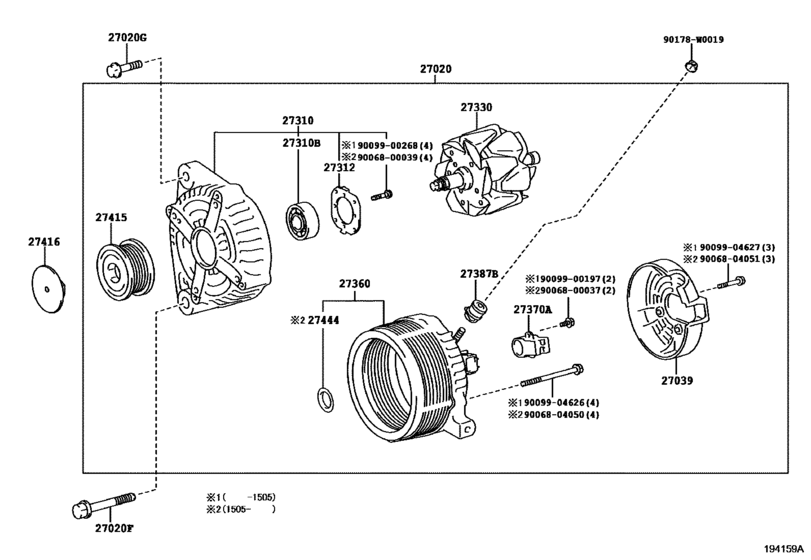

Alternator ([06.2013 - ] 12V 100A (1306- )1NDTV) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0N100
Alternator Assy
[06.2013 - 05.2015] 1NDTV..NDE180 12V 100A |
27060-0N100 |
— | ||
|
27020
|
27020
27060-0N140
Alternator Assy
[05.2015 - 05.2016] 1NDTV..NDE180 12V 100A |
27060-0N140 |
— | ||
|
27020F
|
27020F
90105-W0044
Bolt, No.1(For Alternator)
[06.2013 - 05.2016] 1NDTV..NDE180 |
90105-W0044 |
— | ||
|
27020G
|
27020G
90119-W0238
Bolt, No.2(For Alternator)
[06.2013 - 05.2015] 1NDTV..NDE180 (L) |
90119-W0238 |
— | ||
|
27020G
|
27020G
91552-81050 Bolt, No.2(For Alternator)[05.2015 - 05.2016] 1NDTV..NDE180 |
91552-81050 |
from US $1.48 |
||
|
27020G
|
27020G
91671-00845 Bolt(For Alternator)[06.2013 - 05.2015] 1NDTV..NDE180 (J) |
91671-00845 |
US $1.38 |
||
|
27039
|
27039
27039-0Y150 Cover, Alternator Rear End[06.2013 - 05.2016] 1NDTV..NDE180;1NRFE..NRE180..RHD; 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD COLD AREA SPEC; 1NRFE..NRE180..LHD COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS); 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD SUB COLD |
27039-0Y150 |
US $10.19 |
||
|
27310
|
27310
27310-0N080
Frame Assy, Drive End, Alternator
[06.2013 - 05.2015] 1NDTV..NDE180 |
27310-0N080 |
— | ||
|
27310
|
27310
27310-0N120
Frame Assy, Drive End, Alternator
[05.2015 - 05.2016] 1NDTV..NDE180 |
27310-0N120 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[06.2013 - 05.2015] 1NDTV..NDE180; 1ZRFAE..ZRE181..LHD COLD AREA SPEC; 1NRFE..NRE180..LHD COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
90099-10223 |
from US $10.31 |
||
|
27310B
|
27310B
90099-10231 Bearing(For Alternator Drive End Frame)[05.2015 - 05.2016] 1NDTV..NDE180 |
90099-10231 |
US $19.95 |
||
|
27312
|
27312
27312-0T300
Plate, Retainer
[05.2015 - 05.2016] 1NDTV,1ZRFAE..NDE180,ZRE181 |
27312-0T300 |
— | ||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[06.2013 - 05.2015] 1NDTV..NDE180; 1ZRFAE..ZRE181..LHD COLD AREA SPEC; 1NRFE..NRE180..LHD COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS) |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-0Y150 Rotor Assy, Alternator[06.2013 - 05.2016] 1NDTV..NDE180;1NRFE..NRE180..RHD; 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD COLD AREA SPEC; 1NRFE..NRE180..LHD COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS); 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD SUB COLD |
27330-0Y150 |
US $198.02 |
||
|
27360
|
27360
27360-0N080
Coil Assy, Alternator
[06.2013 - 05.2016] 1NDTV..NDE180 |
27360-0N080 |
— | ||
|
27370A
|
27370A
27370-0Y150
Holder Assy, Alternator Brush
[06.2013 - 05.2016] 1NDTV..NDE180;1NRFE..NRE180..RHD; 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD COLD AREA SPEC; 1NRFE..NRE180..LHD COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS); 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD SUB COLD |
27370-0Y150 |
— | ||
|
27387B
|
27387B
27387-0Y150 Insulator, Terminal[06.2013 - 05.2016] 1NDTV..NDE180;1NRFE..NRE180..RHD; 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD COLD AREA SPEC; 1NRFE..NRE180..LHD COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS); 1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..LHD SUB COLD |
27387-0Y150 |
US $5.24 |
||
|
27415
|
27415
27415-33100
Pulley, Alternator W/clutch
[06.2013 - 05.2016] 1NDTV..NDE180 |
27415-33100 |
— | ||
|
27416
|
27416
27416-27010 Cap, Alternator Pulley[06.2013 - 05.2016] 1NDTV..NDE180 |
27416-27010 |
US $4.80 |
||
|
27444
|
27444
27444-0T300
Packing, Alternator Bearing Cover
[05.2015 - 05.2016] 1NDTV,1ZRFAE..NDE180,ZRE181 |
27444-0T300 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9006800037
|
9006800037
90068-00037
Screw(For Alternator Brush Holder)
|
90068-00037 |
— | ||
|
9006800039
|
9006800039
90068-00039
Screw(For Alternator Drive End Frame)
|
90068-00039 |
— | ||
|
9006804050
|
9006804050
90068-04050
Bolt(For Alternator Coil)
|
90068-04050 |
— | ||
|
9006804051
|
9006804051
90068-04051
Bolt(For Alternator Rear End Cover)
|
90068-04051 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904626
|
9009904626
90099-04626
Bolt(For Alternator Coil)
|
90099-04626 |
— | ||
|
9009904627
|
9009904627
90099-04627
Bolt(For Alternator Rear End Cover)
|
90099-04627 |
— |
