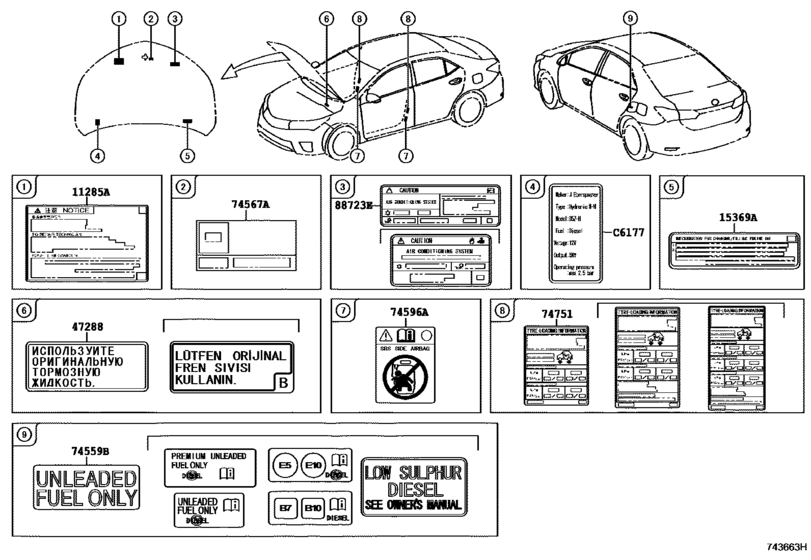

Caution Plate (Exterior & Interior) ([06.2013 - ] ENGINE ROOM,EXTERIOR (1306- )) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11285A
|
11285A
11285-33030 Label, Coolant System NoticeCOOLANT SYSTEM NOTICE [06.2013 - 05.2016] 1N#..NDE180,NRE180 |
11285-33030 |
US $3.20 |
||
|
15369A
|
15369A
15369-0N010 Label, Engine Oil InformationENGINE OIL INFORMATION [06.2013 - 05.2016] 1NDTV..NDE180 (L) |
15369-0N010 |
US $1.89 |
||
|
15369A
|
15369A
15369-33010 Label, Engine Oil InformationENGINE OIL INFORMATION [06.2013 - 05.2016] 1NDTV..NDE180 (J) |
15369-33010 |
US $1.89 |
||
|
47288
|
47288
47288-64010
Label, Brake Fluid Notice
[12.2016 -] NDE180..6FS; ZRE181..LHD..EUR;NDE180,NRE180..LHD..6F..EUR TURKEY SPEC |
47288-64010 |
— | ||
|
74559B
|
74559B
74559-20120 Label, Fuel InformationFUEL INFORMATION [06.2013 - 05.2016] NDE180 |
74559-20120 |
US $1.46 |
||
|
74559B
|
74559B
74559-71020
Label, Fuel Information
[03.2017 -] NDE180 |
74559-71020 |
— | ||
|
74567A
|
74567A
74567-25041 Plate, E.c.e Approved NumberE.C.E APPROVED NUMBER [06.2013 - 05.2015] NDE180..6F |
74567-25041 |
from US $1.41 |
||
|
74567A
|
74567A
74567-52010
Plate, E.c.e Approved Number
[05.2015 - 05.2016] NDE180..6F |
74567-52010 |
— | ||
|
74596A
|
74596A
74596-0F010
Label, Side Air Bag Caution
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#; ZRE18#..HTWC AIR-BAG CTN. LABEL-ARABIC+CHINESE+ENGLISH&SRS AIR BAG-WITH(*DRS & *PAS); NDE180,NRE180,ZRE18#..LHD..(DCRL,HTWC) SRS AIR BAG-WITH(*DRS & *PAS) |
74596-0F010 |
— | ||
|
74751
|
74751
42661-02D10
Label, Tire Pressure Information
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD..(DCRL,HTWC); ZRE181..N..HTWVM TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL); ZRE181..N..HTWVM TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE(AL |
42661-02D10 |
— | ||
|
74751
|
74751
42661-02G90
Label, Tire Pressure Information
[06.2013 - 05.2016] NDE180,NRE180;ZRE181..HTWVM SPARE TIRE-TEMPORARY(T125/70D17) |
42661-02G90 |
— | ||
|
74751
|
74751
42661-02J00
Label, Tire Pressure Information
[06.2013 - 05.2016] ZRE181..HTWVM;NDE180,NRE180..RHD; NDE180,NRE180..LHD TIRE & DISC WHEEL-195/65R15 STEEL&SPARE TIRE-WITHOUT; NDE180,NRE180..LHD SPARE TIRE-WITHOUT(REPAIR KIT ONLY); ZRE181..N..HTWVM;NDE180,NRE180,ZRE181..RHD TIRE & DISC WHEEL-215/45R17 7 |
42661-02J00 |
— | ||
|
74751
|
74751
42661-02L90
Label, Tire Pressure Information
[06.2013 - 09.2013] NDE180..6F TIRE & DISC WHEEL-195/65R15 STEEL, WITH(START&STOP SYSTEM)&SPARE TIRE-WITHOUT |
42661-02L90 |
— | ||
|
74751
|
74751
42661-02M00
Label, Tire Pressure Information
[09.2013 - 05.2015] NDE180..6F TIRE & DISC WHEEL-195/65R15 STEEL, WITH(START&STOP SYSTEM)&SPARE TIRE-TEMPORARY(T1 25/70D17) |
42661-02M00 |
— | ||
|
74751
|
74751
42661-02M10
Label, Tire Pressure Information
[09.2013 - 05.2015] NDE180..LHD..6F TIRE & DISC WHEEL-195/65R15 STEEL, WITH(START&STOP SYSTEM); NDE180..RHD TIRE & DISC WHEEL-195/65R15 STEEL, WITH(START&STOP SYSTEM)&SPARE TIRE-GROUND TIRE( STEEL WHEEL) |
42661-02M10 |
— | ||
|
74751
|
74751
42661-02M60
Label, Tire Pressure Information
[05.2015 - 05.2016] NDE180..6F TIRE & DISC WHEEL-195/65R15 STEEL,6J,W(START&STOP SYSTEM)&SPARE TIRE-TEMPORARY(T12 5/70D17) |
42661-02M60 |
— | ||
|
74751
|
74751
42661-02M70
Label, Tire Pressure Information
[05.2015 - 05.2016] NDE180..RHD TIRE & DISC WHEEL-195/65R15 STEEL,6J,W(START&STOP SYSTEM); NDE180..LHD..6F TIRE & DISC WHEEL-195/65R15 STEEL,6J,W(START&STOP SYSTEM)&SPARE TIRE-WITHOUT(REPAI R KIT ONLY) |
42661-02M70 |
— | ||
|
74751
|
74751
42661-02M80
Label, Tire Pressure Information
[05.2015 - 05.2016] NDE180..LHD..6F TIRE & DISC WHEEL-195/65R15 STEEL,6J,W(START&STOP SYSTEM); NDE180..RHD TIRE & DISC WHEEL-195/65R15 STEEL,6J,W(START&STOP SYSTEM)&SPARE TIRE-GROUND TIRE(S TEEL WHEEL) |
42661-02M80 |
— | ||
|
88723E
|
88723E
88723-12190 Label, Cooler Service Caution[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..N; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; NRE180,ZRE18#..N..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT; ZRE181..N..HTWC NON-NEW MAC SPEC COUN |
88723-12190 |
US $1.46 |
||
|
88723E
|
88723E
88723-12270
Label, Cooler Service Caution
[06.2016 -] NDE180,NRE180..6F..(G,N)..EUR; NDE180..6F..G TURKEY SPEC&LIGHT GRADE; NDE180,NRE180..6F..N..EUR TURKEY SPEC&AIR CONDITIONER-COOLER LESS; NDE180..6F..G NON-NEW MAC SPEC COUNTRY&LIGHT GRADE; NDE180,NRE180..6F..N..EUR NON-NEW MAC SPEC COUNTRY&AIR |
88723-12270 |
— | ||
|
C6177
|
C6177
C6177-05010
Label, Heater Notice
[06.2013 - 05.2016] NDE180..LHD..6F COLD AREA SPEC |
C6177-05010 |
— |
