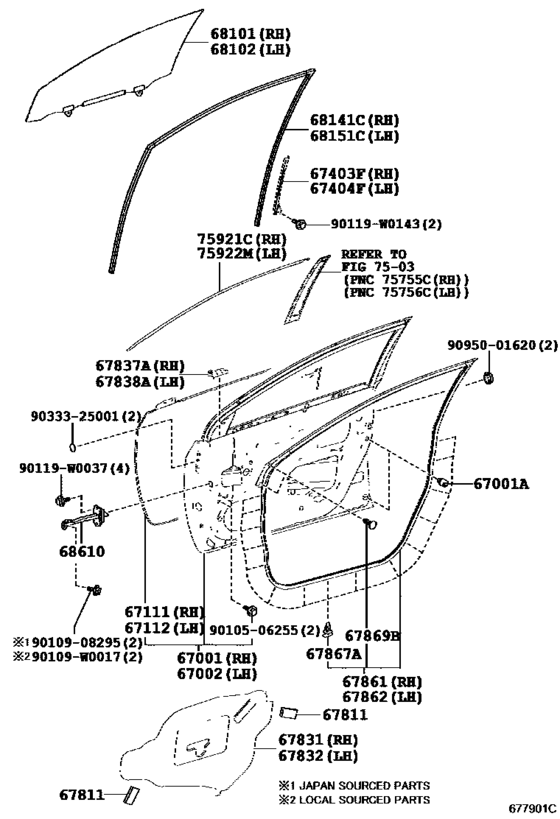

Front Door Panel & Glass ([06.2013 - ] DOOR PANEL (1306- )) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-02390 Panel Sub-Assy, Front Door, Rh[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67001-02390 |
US $679.32 |
||
|
67001A
|
67001A
90541-09124 Cushion, Luggage Compartment Door[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
90541-09124 |
from US $1.60 |
||
|
67002
|
67002
67002-02390
Panel Sub-Assy, Front Door, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67002-02390 |
— | ||
|
67111
|
67111
67111-02230 Panel, Front Door, Outer Rh[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67111-02230 |
US $237.28 |
||
|
67112
|
67112
67112-02230
Panel, Front Door, Outer Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67112-02230 |
— | ||
|
67403F
|
67403F
67403-12320
Frame Sub-Assy, Front Door, Rear Lower Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67403-12320 |
— | ||
|
67404F
|
67404F
67404-12300
Frame Sub-Assy, Front Door, Rear Lower Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67404-12300 |
— | ||
|
67811
|
67811
67811-02300
Pad, Front Door Silencer
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67811-02300 |
— | ||
|
67831
|
67831
67831-02330 Cover, Front Door Service Hole, Rh[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67831-02330 |
US $17.37 |
||
|
67832
|
67832
67832-02330
Cover, Front Door Service Hole, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67832-02330 |
— | ||
|
67837A
|
67837A
67837-02050
Seal, Front Door Vent, Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67837-02050 |
— | ||
|
67838A
|
67838A
67838-02020
Seal, Front Door Vent, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67838-02020 |
— | ||
|
67861
|
67861
67861-02270
Weatherstrip, Front Door, Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67861-02270 |
— | ||
|
67862
|
67862
67862-02270
Weatherstrip, Front Door, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67862-02270 |
— | ||
|
67867A
|
67867A
67867-12150 Clip(For Hood Air Intake Duct Seal)[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67867-12150 |
from US $1.60 |
||
|
67869B
|
67869B
67869-20030 Clip, Door Weatherstrip(For Front Door)[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67869-20030 |
from US $0.82 |
||
|
68101
|
68101
68101-02430
Glass Sub-Assy, Front Door, Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68101-02430 |
— | ||
|
68102
|
68102
68102-02430
Glass Sub-Assy, Front Door, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68102-02430 |
— | ||
|
68141C
|
68141C
68141-02310
Run, Front Door Glass, Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68141-02310 |
— | ||
|
68151C
|
68151C
68151-02300
Run, Front Door Glass, Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68151-02300 |
— | ||
|
68610
|
68610
68610-02240
Check Assy, Front Door
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68610-02240 |
— | ||
| replacement | |||||
|
68610
|
68610
68610-02241
Check Assy, Front Door
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68610-02241 |
— | ||
|
68610
|
68610
68610-02241
Check Assy, Front Door
[09.2016 - 03.2017] NDE180,NRE180,ZRE18# |
68610-02241 |
— | ||
|
68610
|
68610
68610-02242
Check Assy, Front Door
[04.2017 -] NDE180,NRE180,ZRE18# |
68610-02242 |
— | ||
|
75921C
|
75921C
75921-02160
Tape, Black Out, No.1 Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
75921-02160 |
— | ||
|
75922M
|
75922M
75922-02160
Tape, Black Out, No.1 Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
75922-02160 |
— | ||
|
90109W0017
|
90109W0017
90109-W0017 New Genuine Part |
90109-W0017 |
US $0.73 |
||
|
90119W0037
|
90119W0037
90119-W0037
Bolt, W/washer
|
90119-W0037 |
— | ||
|
90119W0143
|
90119W0143
90119-W0143
New Genuine Part
|
90119-W0143 |
— | ||
|
9010506255
|
9010506255
90105-06255 BOLT FLANGE |
90105-06255 |
US $0.73 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.90 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
