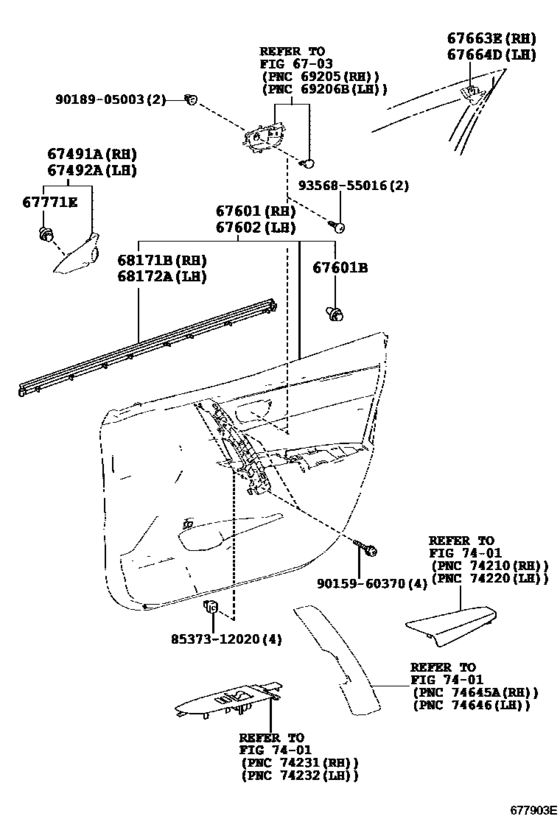

Front Door Panel & Glass ([06.2013 - ] DOOR TRIM (1306- )) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-02430
Garnish, Front Door Lower Frame Bracket, Rh
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD LIGHT GRADE&AUDIO-RADIOLESS & SPEAKERLESS; ZRE181..CVT..N..HTWVM AUDIO-EXTRA & CD & USB & 4SPEAKER |
67491-02430 |
— | ||
|
67491A
|
67491A
67491-02431
Garnish, Front Door Lower Frame Bracket, Rh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD LIGHT GRADE&AUDIO-RADIOLESS & SPEAKERLESS; ZRE181..CVT..N..HTWVM AUDIO-EXTRA & CD & USB & 4SPEAKER |
67491-02431 |
— | ||
|
67491A
|
67491A
67491-02440
Garnish, Front Door Lower Frame Bracket, Rh
[06.2014 - 05.2015] ZRE181..6F..D..HTWVM;NDE180,NRE180..LHD..D AUDIO-EXTRA & CD & *BT & USB & 6SPEAKER |
67491-02440 |
— | ||
|
67491A
|
67491A
67491-02441
Garnish, Front Door Lower Frame Bracket, Rh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD; ZRE181..6F..D..HTWVM;NDE180,NRE180..LHD..D AUDIO-EXTRA & CD & *BT & USB & 6SPEAKER |
67491-02441 |
— | ||
|
67492A
|
67492A
67492-02430
Garnish, Front Door Lower Frame Bracket, Lh
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD LIGHT GRADE&AUDIO-RADIOLESS & SPEAKERLESS; ZRE181..CVT..N..HTWVM AUDIO-EXTRA & CD & USB & 4SPEAKER |
67492-02430 |
— | ||
|
67492A
|
67492A
67492-02431
Garnish, Front Door Lower Frame Bracket, Lh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D; NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD LIGHT GRADE&AUDIO-RADIOLESS & SPEAKERLESS; ZRE181..CVT..N..HTWVM AUDIO-EXTRA & CD & USB & 4SPEAKER |
67492-02431 |
— | ||
|
67492A
|
67492A
67492-02440
Garnish, Front Door Lower Frame Bracket, Lh
[06.2014 - 05.2015] ZRE181..6F..D..HTWVM;NDE180,NRE180..LHD..D AUDIO-EXTRA & CD & *BT & USB & 6SPEAKER |
67492-02440 |
— | ||
|
67492A
|
67492A
67492-02441
Garnish, Front Door Lower Frame Bracket, Lh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD; ZRE181..6F..D..HTWVM;NDE180,NRE180..LHD..D AUDIO-EXTRA & CD & *BT & USB & 6SPEAKER |
67492-02441 |
— | ||
|
67601
|
67601
67610-02R50-20
Board Sub-Assy, Front Door Trim, Rh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D EU BLACK/EU BLACK,TRIM2#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,EU BLACK /EU BLACK,TRIM2#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,EU B |
67610-02R50-20 |
— | ||
|
67601
|
67601
67610-02R50-21
Board Sub-Assy, Front Door Trim, Rh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D EU BLACK/IVORY,TRIM0#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,EU BLACK /IVORY,TRIM0#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,EU BLACK/I |
67610-02R50-21 |
— | ||
|
67601
|
67601
67610-02R50-26
Board Sub-Assy, Front Door Trim, Rh
[06.2016 -] NDE180,NRE180,ZRE181..LHD..D EU BLK/EU BLK/EU BLK,TRIM2#; NDE180,NRE180,ZRE181..N..EUR DOOR TRIM ORNAMENT-WITHOUT,EU BLK/EU BLK/EU BLK,TRIM2# |
67610-02R50-26 |
— | ||
|
67601
|
67601
67610-02R50-27
Board Sub-Assy, Front Door Trim, Rh
[06.2016 -] NDE180,NRE180,ZRE181..LHD..D EU BLK/FLAXEN/EU BLK,TRIM0#; NDE180,NRE180,ZRE181..N..EUR DOOR TRIM ORNAMENT-WITHOUT,EU BLK/FLAXEN/EU BLK,TRIM0# |
67610-02R50-27 |
— | ||
|
67601
|
67601
67610-02R50-C6
Board Sub-Assy, Front Door Trim, Rh
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D BLACK/IVORY,TRIM0#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,BLACK/IV ORY,TRIM0#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,BLACK/IVORY,TRIM |
67610-02R50-C6 |
— | ||
|
67601
|
67601
67610-02R50-C7
Board Sub-Assy, Front Door Trim, Rh
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D BLACK/BLACK,TRIM2#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,BLACK/BL ACK,TRIM2#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,BLACK/BLACK,TRIM |
67610-02R50-C7 |
— | ||
|
67601B
|
67601B
67773-0E020 Clip, Rear Window Side Garnish[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67773-0E020 |
US $1.60 |
||
|
67602
|
67602
67620-02R40-20
Board Sub-Assy, Front Door Trim, Lh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D EU BLACK/EU BLACK,TRIM2#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,EU BLACK /EU BLACK,TRIM2#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,EU B |
67620-02R40-20 |
— | ||
|
67602
|
67602
67620-02R40-21
Board Sub-Assy, Front Door Trim, Lh
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D EU BLACK/IVORY,TRIM0#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,EU BLACK /IVORY,TRIM0#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,EU BLACK/I |
67620-02R40-21 |
— | ||
|
67602
|
67602
67620-02R40-26
Board Sub-Assy, Front Door Trim, Lh
[06.2016 -] NDE180,NRE180,ZRE181..LHD..D EU BLK/EU BLK/EU BLK,TRIM2#; NDE180,NRE180,ZRE181..N..EUR DOOR TRIM ORNAMENT-WITHOUT,EU BLK/EU BLK/EU BLK,TRIM2# |
67620-02R40-26 |
— | ||
|
67602
|
67602
67620-02R40-27
Board Sub-Assy, Front Door Trim, Lh
[06.2016 -] NDE180,NRE180,ZRE181..LHD..D EU BLK/FLAXEN/EU BLK,TRIM0#; NDE180,NRE180,ZRE181..N..EUR DOOR TRIM ORNAMENT-WITHOUT,EU BLK/FLAXEN/EU BLK,TRIM0# |
67620-02R40-27 |
— | ||
|
67602
|
67602
67620-02R40-C6
Board Sub-Assy, Front Door Trim, Lh
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D BLACK/IVORY,TRIM0#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,BLACK/IV ORY,TRIM0#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,BLACK/IVORY,TRIM |
67620-02R40-C6 |
— | ||
|
67602
|
67602
67620-02R40-C7
Board Sub-Assy, Front Door Trim, Lh
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D BLACK/BLACK,TRIM2#; NDE180,NRE180,ZRE18#..N POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&DOOR TRIM ORNAMENT-WITHOUT,BLACK/BL ACK,TRIM2#; NDE180,NRE180,ZRE18#..N DOOR TRIM ORNAMENT-WITHOUT,BLACK/BLACK,TRIM |
67620-02R40-C7 |
— | ||
|
67663E
|
67663E
67663-48010 Garnish, Door Frame, Upper Rh[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67663-48010 |
US $2.88 |
||
|
67664D
|
67664D
67664-48010 Garnish, Door Frame, Upper Lh[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67664-48010 |
from US $2.20 |
||
|
67771E
|
67771E
67771-12060 Retainer, Door Trim[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
67771-12060 |
US $1.60 |
||
|
68171B
|
68171B
68171-02260
Weatherstrip, Front Door Glass, Inner Rh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68171-02260 |
— | ||
|
68172A
|
68172A
68172-02250
Weatherstrip, Front Door Glass, Inner Lh
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
68172-02250 |
— | ||
|
8537312020
|
8537312020
85373-12020 Hose, Windshield Washer (from Joint To Nozzle) |
85373-12020 |
US $3.20 |
||
|
9015960370
|
9015960370
90159-60370 SCREW WWASHER |
90159-60370 |
US $1.12 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
