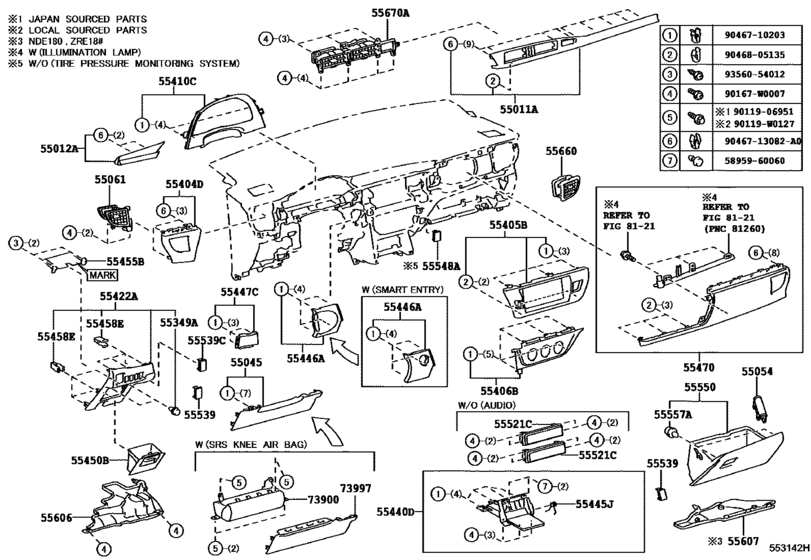

Instrument Panel & Glove Compartment ([06.2013 - 05.2016] (1306-1605)LHD) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- NDE180
- grade
- D
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55011A
|
55011A
55011-02040-B0
Garnish Sub-Assy, Instrument Panel, No.1
[06.2013 - 04.2015] NDE180,NRE180,ZRE18#..LHD MD.SILVER,TRIM0#,2# |
55011-02040-B0 |
— | ||
|
55011A
|
55011A
55011-02041-B0
Garnish Sub-Assy, Instrument Panel, No.1
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD MD.SILVER,TRIM0#,2# |
55011-02041-B0 |
— | ||
|
55012A
|
55012A
55012-02050-B0
Garnish Sub-Assy, Instrument Panel, No.2
[06.2013 - 04.2015] NDE180,NRE180,ZRE18#..LHD MD.SILVER,TRIM0#,2# |
55012-02050-B0 |
— | ||
|
55012A
|
55012A
55012-02051-B0
Garnish Sub-Assy, Instrument Panel, No.2
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD MD.SILVER,TRIM0#,2# |
55012-02051-B0 |
— | ||
|
55045
|
55045
55045-02320-C0
Panel Sub-Assy, Instrument Panel Finish, Lower
[06.2013 - 05.2015] NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM0#,2#; NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM0#,2#; NDE180..LHD..6F;NRE180,ZRE18#..LHD..H |
55045-02320-C0 |
— | ||
| replacement | |||||
|
55045
|
55045
55045-02320-C1
Panel Sub-Assy, Instrument Panel Finish, Lower
[06.2013 - 05.2015] NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM0#,2#; NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM0#,2#; NDE180..LHD..6F;NRE180,ZRE18#..LHD..H |
55045-02320-C1 |
— | ||
|
55045
|
55045
55045-02320-C1
Panel Sub-Assy, Instrument Panel Finish, Lower
[05.2015 - 05.2016] NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),EU BLACK,TRIM0#,2#; NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE),EU BLACK,TRIM0#,2#; NDE180..LHD..6F;NRE180,ZRE18#.. |
55045-02320-C1 |
— | ||
|
55054
|
55054
55054-35010 Stopper Sub-Assy, Glove Compartment Door[06.2013 - 03.2015] NDE180,NRE180,ZRE18# |
55054-35010 |
US $15.52 |
||
|
55054
|
55054
55054-47010 Stopper Sub-Assy, Glove Compartment Door[04.2015 - 05.2016] NDE180,NRE180,ZRE18# |
55054-47010 |
US $15.96 |
||
|
55061
|
55061
55061-02300-A0
Register Sub-Assy, Instrument Panel, No.1
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D IVORY,TRIM0# |
55061-02300-A0 |
— | ||
|
55061
|
55061
55061-02300-C0
Register Sub-Assy, Instrument Panel, No.1
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D BLACK,TRIM2# |
55061-02300-C0 |
— | ||
|
55061
|
55061
55061-02300-C1
Register Sub-Assy, Instrument Panel, No.1
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D EU BLACK,TRIM2# |
55061-02300-C1 |
— | ||
|
55349A
|
55349A
58959-60060 Cushion, Instrument Panel[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
58959-60060 |
from US $1.38 |
||
|
55404D
|
55404D
55404-02360-A0
Panel Sub-Assy, Instrument Cluster Finish
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD IVORY,TRIM0# |
55404-02360-A0 |
— | ||
|
55404D
|
55404D
55404-02360-C0
Panel Sub-Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM2# |
55404-02360-C0 |
— | ||
| replacement | |||||
|
55404D
|
55404D
55404-02360-C1
Panel Sub-Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM2# |
55404-02360-C1 |
— | ||
|
55404D
|
55404D
55404-02360-C1
Panel Sub-Assy, Instrument Cluster Finish
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM2# |
55404-02360-C1 |
— | ||
|
55404D
|
55404D
55404-02520-A0
Panel Sub-Assy, Instrument Cluster Finish
[06.2016 -] NDE180,NRE180,ZRE18#..LHD FLAXEN/EU BLACK,TRIM0# |
55404-02520-A0 |
— | ||
|
55404D
|
55404D
55404-02520-C0
Panel Sub-Assy, Instrument Cluster Finish
[06.2016 -] NDE180,NRE180,ZRE18#..LHD EU BLACK/EU BLACK,TRIM2# |
55404-02520-C0 |
— | ||
|
55405B
|
55405B
55405-02531-C2
Panel Sub-Assy, Instrument Cluster Finish, Center
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D AUDIO-RADIOLESS 4SPEAKER,BLACK METALLC,TRIM0#,2#; NDE180,NRE180,ZRE18#..N AUDIO-RADIOLESS 6SPEAKER,BLACK METALLC,TRIM0#,2#; NDE180,NRE180,ZRE18#..LHD AUDIO-RADIOLESS & SPEAKERLESS,BLACK METALLC,TRIM0#,2# |
55405-02531-C2 |
— | ||
|
55405B
|
55405B
55405-02540-C2
Panel Sub-Assy, Instrument Cluster Finish, Center
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD BLACK METALLC,TRIM0#,2# |
55405-02540-C2 |
— | ||
|
55405B
|
55405B
55406-02640
Panel Sub-Assy, Instrument Cluster Finish, Center
[06.2016 -] NDE180,NRE180,ZRE18#..LHD |
55406-02640 |
— | ||
|
55406B
|
55406B
55406-02330
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[06.2016 -] NDE180..LHD..6F..(D,N);NRE180,ZRE18#..LHD..(D,N); NDE180..6FS;NDE180..6F..G;ZRE181..G..EUR AIR CONDITIONER-COOLER LESS |
55406-02330 |
— | ||
|
55406B
|
55406B
55406-02480-C0
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..N AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..N AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM0#,2# |
55406-02480-C0 |
— | ||
|
55406B
|
55406B
55406-02480-C1
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..N AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),EU BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..N AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK,TRIM0#,2# |
55406-02480-C1 |
— | ||
|
55410C
|
55410C
55410-02160
Panel Assy, Instrument Cluster Finish
[06.2016 -] NDE180,NRE180,ZRE18#..LHD |
55410-02160 |
— | ||
|
55410C
|
55410C
55410-02260-C0
Panel Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55410-02260-C0 |
— | ||
| replacement | |||||
|
55410C
|
55410C
55410-02260-C1
Panel Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55410-02260-C1 |
— | ||
|
55410C
|
55410C
55410-02260-C1
Panel Assy, Instrument Cluster Finish
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
55410-02260-C1 |
— | ||
|
55422A
|
55422A
55422-02290-C0
Panel, Instrument Cluster Finish, Lower
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55422-02290-C0 |
— | ||
| replacement | |||||
|
55422A
|
55422A
55422-02290-C1
Panel, Instrument Cluster Finish, Lower
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55422-02290-C1 |
— | ||
|
55422A
|
55422A
55422-02290-C1
Panel, Instrument Cluster Finish, Lower
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
55422-02290-C1 |
— | ||
|
55440D
|
55440D
55440-02440-C0
Box Assy, Instrument Panel
[06.2016 -] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
55440-02440-C0 |
— | ||
|
55440D
|
55440D
55440-02710-C0
Box Assy, Instrument Panel
[06.2013 - 04.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55440-02710-C0 |
— | ||
| replacement | |||||
|
55440D
|
55440D
55440-02710-C1
Box Assy, Instrument Panel
[06.2013 - 04.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55440-02710-C1 |
— | ||
|
55440D
|
55440D
55440-02711-C1
Box Assy, Instrument Panel
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
55440-02711-C1 |
— | ||
|
55445J
|
55445J
55445-02200
Spring, Instrument Panel Box
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
55445-02200 |
— | ||
|
55445J
|
55445J
55445-02330
Spring, Instrument Panel Box
[06.2016 -] NDE180,NRE180,ZRE18#..LHD |
55445-02330 |
— | ||
|
55446A
|
55446A
55446-02380-C0
Base, Switch Hole, No.1
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55446-02380-C0 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-02380-C1
Base, Switch Hole, No.1
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55446-02380-C1 |
— | ||
|
55446A
|
55446A
55446-02380-C1
Base, Switch Hole, No.1
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
55446-02380-C1 |
— | ||
|
55447C
|
55447C
55447-02210-C0
Base, Switch Hole, No.2
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55447-02210-C0 |
— | ||
|
55447C
|
55447C
55447-02210-C1
Base, Switch Hole, No.2
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
55447-02210-C1 |
— | ||
|
55450B
|
55450B
55450-02130-C0
Box Assy, Coin
[06.2013 - 05.2015] NDE180,NRE180,ZRE18# BLACK,TRIM0#,2# |
55450-02130-C0 |
— | ||
| replacement | |||||
|
55450B
|
55450B
55450-02131-C1
Box Assy, Coin
[06.2013 - 05.2015] NDE180,NRE180,ZRE18# BLACK,TRIM0#,2# |
55450-02131-C1 |
— | ||
|
55450B
|
55450B
55450-02130-C1
Box Assy, Coin
[05.2015 - 07.2015] NDE180,NRE180,ZRE18# EU BLACK,TRIM0#,2# |
55450-02130-C1 |
— | ||
| replacement | |||||
|
55450B
|
55450B
55450-02131-C1
Box Assy, Coin
[05.2015 - 07.2015] NDE180,NRE180,ZRE18# EU BLACK,TRIM0#,2# |
55450-02131-C1 |
— | ||
|
55450B
|
55450B
55450-02131-C1
Box Assy, Coin
[08.2015 - 05.2016] NDE180,NRE180,ZRE18# EU BLACK,TRIM0#,2# |
55450-02131-C1 |
— | ||
|
55455B
|
55455B
55455-02160
Coin Box
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
55455-02160 |
— | ||
|
55455B
|
55455B
55455-02161
Coin Box
[01.2017 -] NDE180,NRE180,ZRE18# MARK=55455-02161 |
55455-02161 |
— | ||
|
55458E
|
55458E
90467-10203 Direct[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
90467-10203 |
from US $0.64 |
||
|
55470
|
55470
55470-02330-A0
Garnish Assy, Instrument Cluster Finish Panel
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD IVORY,TRIM0# |
55470-02330-A0 |
— | ||
|
55470
|
55470
55470-02330-C0
Garnish Assy, Instrument Cluster Finish Panel
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM2# |
55470-02330-C0 |
— | ||
|
55470
|
55470
55470-02330-C1
Garnish Assy, Instrument Cluster Finish Panel
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM2# |
55470-02330-C1 |
— | ||
|
55521C
|
55521C
55521-05030
Cover, Stereo Opening
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D AUDIO-RADIOLESS 4SPEAKER; NDE180,NRE180,ZRE18#..N;NDE180,NRE180,ZRE181..RHD AUDIO-RADIOLESS 6SPEAKER; NDE180,NRE180,ZRE18# AUDIO-RADIOLESS & SPEAKERLESS |
55521-05030 |
— | ||
|
55539
|
55539
55539-02100-C0
Cover, Spare Switch Hole
[06.2013 - 05.2015] NDE180,NRE180,ZRE18# BLACK,TRIM0#,2#; ZRE182 VSC-WITH(W/CUT OFF SWITCH),BLACK,TRIM0#,2#; NDE180,ZRE182..N;NRE180,ZRE181..LHD SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..N CLEARANCE & BACK SONAR-WI |
55539-02100-C0 |
— | ||
|
55539
|
55539
55539-02100-C1
Cover, Spare Switch Hole
[05.2015 - 05.2016] NDE180,NRE180,ZRE18# EU BLACK,TRIM0#,2#; NDE180,ZRE182..N;NRE180,ZRE181..LHD SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),EU BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..N CLEARANCE & BACK SONAR-WITH & WITH(*IPA),EU BLACK,TRIM0#,2#; NDE180,NR |
55539-02100-C1 |
— | ||
|
55539C
|
55539C
55539-02100-C0
Cover, Spare Switch Hole
[06.2013 - 05.2015] NDE180..LHD COLD AREA SPEC,BLACK,TRIM0#,2#; ZRE18#..HTWC COLD AREA SPEC&WINDSHIELD DEICER-WITH,BLACK,TRIM0#,2# |
55539-02100-C0 |
— | ||
|
55539C
|
55539C
55539-02100-C1
Cover, Spare Switch Hole
[05.2015 - 05.2016] NDE180..LHD COLD AREA SPEC,EU BLACK,TRIM0#,2#; ZRE18#..HTWC COLD AREA SPEC&WINDSHIELD DEICER-WITH,EU BLACK,TRIM0#,2# |
55539-02100-C1 |
— | ||
|
55548A
|
55548A
55548-02640-C0
Cover, Instrument Panel Hole
[06.2013 - 05.2015] ZRE182 BLACK,TRIM0#,2#; NRE180..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),BLACK,TRIM0#,2#; NRE180..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),BLACK,TRIM0#,2#; NDE180,ZRE181..LHD..(DCR |
55548-02640-C0 |
— | ||
|
55548A
|
55548A
55548-02640-C1
Cover, Instrument Panel Hole
[05.2015 - 05.2016] ZRE182 EU BLACK,TRIM0#,2#; ZRE181..HTWC RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS),EU BLACK,TRIM0#,2#; ZRE181..HTWC;NDE180..LHD..6F NON-NEW MAC SPEC COUNTRY,EU BLACK,TRIM0#,2#; NRE180..LHD NON-NEW MAC SPEC COUNTRY&EXHAUST EMISSION CONTROL-EU |
55548-02640-C1 |
— | ||
|
55550
|
55550
55550-02361-C0
Door Assy, Glove Compartment
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55550-02361-C0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-02361-C1
Door Assy, Glove Compartment
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
55550-02361-C1 |
— | ||
|
55550
|
55550
55550-02361-C1
Door Assy, Glove Compartment
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
55550-02361-C1 |
— | ||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
55557-60050 |
from US $0.82 |
||
|
55606
|
55606
55606-02160
Cover Sub-Assy, Instrument Panel Under, No.1
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD |
55606-02160 |
— | ||
|
55607
|
55607
55607-02080
Cover Sub-Assy, Instrument Panel Under, No.2
[06.2013 - 05.2016] NDE180,ZRE181..LHD..(DCRL,HTWVM); NRE180,ZRE18#..LHD..HTWC COLD AREA SPEC; NRE180,ZRE18#..LHD..HTWC SUB COLD AREA SPEC |
55607-02080 |
— | ||
|
55660
|
55660
55660-02210-A0
Register Assy, Instrument Panel, No.2
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D IVORY,TRIM0# |
55660-02210-A0 |
— | ||
|
55660
|
55660
55660-02210-C0
Register Assy, Instrument Panel, No.2
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD..D BLACK,TRIM2# |
55660-02210-C0 |
— | ||
|
55660
|
55660
55660-02210-C1
Register Assy, Instrument Panel, No.2
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D EU BLACK,TRIM2# |
55660-02210-C1 |
— | ||
|
55660
|
55660
55680-12330-C0
Register Assy, Instrument Panel, No.2
[06.2016 -] NDE180,NRE180,ZRE181..LHD..D BLACK,TRIM0#,2#; NDE180,NRE180,ZRE181..RHD REGISTER-RESIN KNOB,BLACK,TRIM0#,2# |
55680-12330-C0 |
— | ||
|
55670A
|
55670A
55670-02390
Register Assy, Instrument Panel, Center
[06.2013 - 05.2016] NDE180,NRE180,ZRE18#..LHD..D |
55670-02390 |
— | ||
|
55670A
|
55670A
55670-02580-C0
Register Assy, Instrument Panel, Center
[06.2016 -] NDE180,NRE180,ZRE181..LHD..D EU BLACK,TRIM0#,2# |
55670-02580-C0 |
— | ||
|
73900
|
73900
73900-02140
Air Bag Assy, Instrument Panel, Lower No.1
[06.2013 - 05.2016] NDE180,NRE180,ZRE18# |
73900-02140 |
— | ||
|
73997
|
73997
73997-02050-C0
Door, Instrument Panel Air Bag, Lower No.1
[06.2013 - 05.2015] NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
73997-02050-C0 |
— | ||
|
73997
|
73997
73997-02050-C1
Door, Instrument Panel Air Bag, Lower No.1
[05.2015 - 05.2016] NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
73997-02050-C1 |
— | ||
|
90119W0127
|
90119W0127
90119-W0127 New Genuine Part |
90119-W0127 |
US $1.02 |
||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
5895960060
|
5895960060
58959-60060 Cushion, Instrument Panel |
58959-60060 |
from US $1.38 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.84 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046713082A0
|
9046713082A0
90467-13082-A0 Clip, Instrument Panel |
90467-13082-A0 |
US $1.28 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
