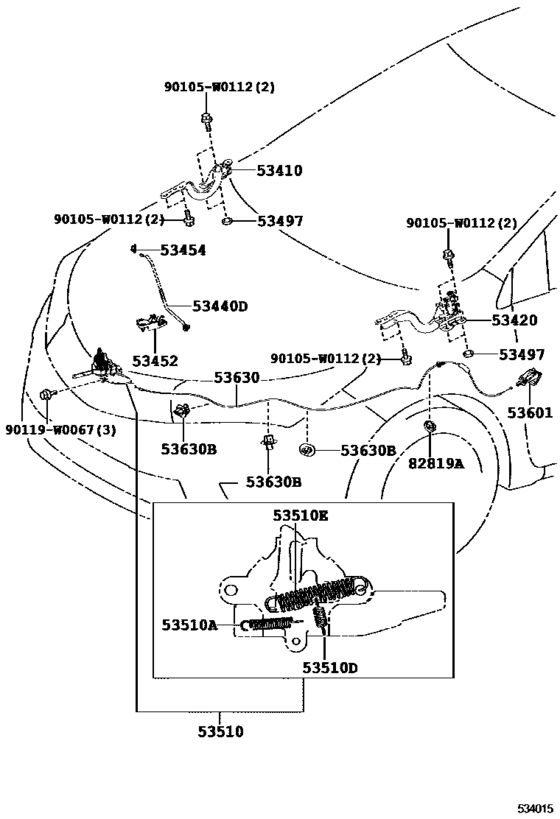

Hood Lock & Hinge ([06.2013 - ] (1306- )LHD) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- TUP
- DESTINATION
- GEN
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-02330 Hinge Assy, Hood, Rh[06.2013 - 05.2016] NDE180..TUP |
53410-02330 |
US $29.87 |
||
|
53420
|
53420
53420-02320 Hinge Assy, Hood, Lh[06.2013 - 05.2016] NDE180..TUP |
53420-02320 |
US $29.58 |
||
|
53440D
|
53440D
53440-02200
Support Assy, Hood
[06.2013 - 05.2016] NDE180..TUP |
53440-02200 |
— | ||
|
53452
|
53452
53452-02160 Holder, Hood Stay[06.2013 - 05.2016] NDE180..TUP |
53452-02160 |
US $24.22 |
||
|
53454
|
53454
53454-12030 Clip, Hood Support RodHOOD SUPPORT ROD [06.2013 - 05.2016] NDE180..TUP |
53454-12030 |
US $1.44 |
||
|
53497
|
53497
53497-05010 Pad, Hood Hinge, No.1[06.2013 - 05.2016] NDE180..TUP T=1.0 |
53497-05010 |
US $1.02 |
||
|
53510
|
53510
53510-02560 Lock Assy, Hood[06.2013 - 05.2016] NDE180..TUP |
53510-02560 |
US $45.42 |
||
|
53510A
|
53510A
90080-50398
Spring, Tension(For Hood Lock)
[06.2013 - 05.2016] NDE180..TUP WD=0.9,CW=20.75 |
90080-50398 |
— | ||
|
53510D
|
53510D
90506-W0004
Spring, Tension(For Hood Lock)
[06.2013 - 05.2016] NDE180..TUP WD=1.0,CW=15.5 |
90506-W0004 |
— | ||
|
53510E
|
53510E
90506-W0007
Spring, Tension(For Hood Lock)
[06.2013 - 05.2016] NDE180..TUP WD=1.8,CW=13 |
90506-W0007 |
— | ||
|
53601
|
53601
53601-05030-C0
Lever Sub-Assy, Hood Lock Control
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
53601-05030-C0 |
— | ||
|
53601
|
53601
53601-05030-C1 Lever Sub-Assy, Hood Lock Control[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
53601-05030-C1 |
US $18.93 |
||
|
53630
|
53630
53630-02410
Cable Assy, Hood Lock Control
[06.2014 - 05.2016] NDE180..TUP |
53630-02410 |
— | ||
|
53630
|
53630
53630-12700
Cable Assy, Hood Lock Control
[06.2013 - 05.2014] NDE180,ZRE18#..GEN |
53630-12700 |
— | ||
|
53630B
|
53630B
90469-06005 Clamp(For Hood Lock Control Cable)[06.2013 - 05.2016] NDE180..TUP |
90469-06005 |
from US $1.28 |
||
|
82819A
|
82819A
82817-1A810 Grommet(For Front Fender Apron)[06.2013 - 05.2016] NDE180..TUP |
82817-1A810 |
US $3.52 |
||
|
90105W0112
|
90105W0112
90105-W0112
BOLT FLANGE
|
90105-W0112 |
— | ||
|
90119W0067
|
90119W0067
90119-W0067 New Genuine Part |
90119-W0067 |
US $0.73 |
