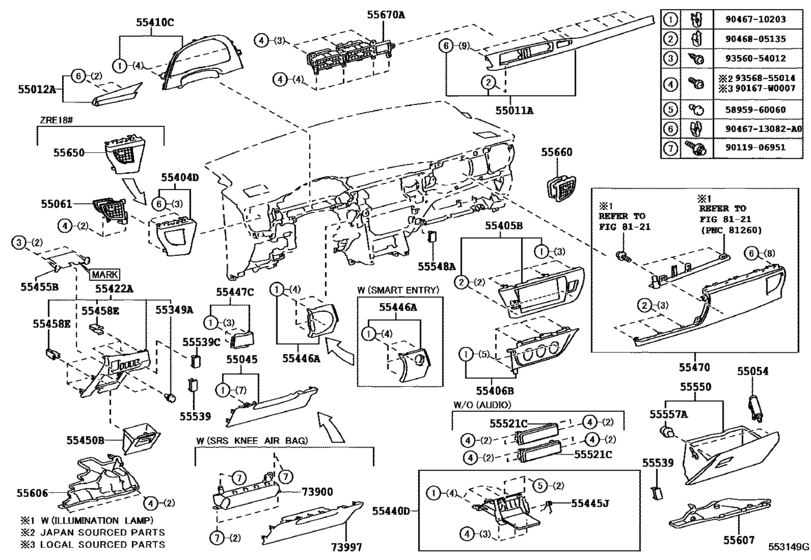

Instrument Panel & Glove Compartment ([06.2013 - 05.2016] (1306-1605)TUP ; (1306-1701)GEN..SAP) Diagram Toyota COROLLA
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- TUP
- DESTINATION
- GEN
- Model
- COROLLA
- From
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55011A
|
55011A
55011-02040-B0
Garnish Sub-Assy, Instrument Panel, No.1
[06.2013 - 04.2015] NDE180..TUP MD.SILVER,TRIM0#,2# |
55011-02040-B0 |
— | ||
|
55011A
|
55011A
55011-02041-B0
Garnish Sub-Assy, Instrument Panel, No.1
[05.2015 - 05.2016] NDE180..TUP MD.SILVER,TRIM0#,2# |
55011-02041-B0 |
— | ||
|
55012A
|
55012A
55012-02050-B0
Garnish Sub-Assy, Instrument Panel, No.2
[06.2013 - 04.2015] NDE180..TUP MD.SILVER,TRIM0#,2# |
55012-02050-B0 |
— | ||
|
55012A
|
55012A
55012-02051-B0
Garnish Sub-Assy, Instrument Panel, No.2
[05.2015 - 05.2016] NDE180..TUP MD.SILVER,TRIM0#,2# |
55012-02051-B0 |
— | ||
|
55045
|
55045
55045-02320-C0
Panel Sub-Assy, Instrument Panel Finish, Lower
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55045-02320-C0 |
— | ||
| replacement | |||||
|
55045
|
55045
55045-02320-C1
Panel Sub-Assy, Instrument Panel Finish, Lower
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55045-02320-C1 |
— | ||
|
55045
|
55045
55045-02320-C1
Panel Sub-Assy, Instrument Panel Finish, Lower
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55045-02320-C1 |
— | ||
|
55054
|
55054
55054-35010 Stopper Sub-Assy, Glove Compartment Door[06.2013 - 03.2015] NDE180..TUP |
55054-35010 |
US $15.52 |
||
|
55054
|
55054
55054-47010 Stopper Sub-Assy, Glove Compartment Door[04.2015 - 05.2016] NDE180..TUP |
55054-47010 |
from US $15.96 |
||
|
55061
|
55061
55061-02300-A0
Register Sub-Assy, Instrument Panel, No.1
[06.2013 - 05.2016] NDE180..D..TUP IVORY,TRIM0# |
55061-02300-A0 |
— | ||
|
55061
|
55061
55061-02300-C0
Register Sub-Assy, Instrument Panel, No.1
[06.2013 - 05.2015] NDE180..D..TUP BLACK,TRIM2# |
55061-02300-C0 |
— | ||
|
55061
|
55061
55061-02300-C1
Register Sub-Assy, Instrument Panel, No.1
[05.2015 - 05.2016] NDE180..D..TUP EU BLACK,TRIM2# |
55061-02300-C1 |
— | ||
|
55349A
|
55349A
58959-60060 Cushion, Instrument Panel[06.2013 - 01.2017] NDE180;NRE180,ZRE18#..SAP |
58959-60060 |
from US $1.44 |
||
|
55404D
|
55404D
55404-02360-A0
Panel Sub-Assy, Instrument Cluster Finish
[06.2013 - 05.2016] NDE180..TUP IVORY,TRIM0# |
55404-02360-A0 |
— | ||
|
55404D
|
55404D
55404-02360-C0
Panel Sub-Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM2# |
55404-02360-C0 |
— | ||
| replacement | |||||
|
55404D
|
55404D
55404-02360-C1
Panel Sub-Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM2# |
55404-02360-C1 |
— | ||
|
55404D
|
55404D
55404-02360-C1
Panel Sub-Assy, Instrument Cluster Finish
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM2# |
55404-02360-C1 |
— | ||
|
55404D
|
55404D
55404-02520-A0
Panel Sub-Assy, Instrument Cluster Finish
[06.2016 -] ZRE181..6F..TUP;ZRE181..LHD..CVT..N;ZRE181..CVT..D..TUP;NDE180,NRE180,ZRE182..TUP FLAXEN/EU BLACK,TRIM0#; NRE180,ZRE18#..N..GEN..TUP INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,FLAXEN/EU BLACK,TRIM0# |
55404-02520-A0 |
— | ||
|
55404D
|
55404D
55404-02520-C0
Panel Sub-Assy, Instrument Cluster Finish
[06.2016 -] NDE180,NRE180,ZRE18#..LHD EU BLACK/EU BLACK,TRIM2#; NRE180,ZRE18#..N..GEN..TUP INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,EU BLACK/EU BLACK,TRIM2# |
55404-02520-C0 |
— | ||
|
55405B
|
55405B
55405-02531-C2
Panel Sub-Assy, Instrument Cluster Finish, Center
[06.2013 - 05.2016] NDE180..D..TUP AUDIO-RADIOLESS 4SPEAKER,BLACK METALLC,TRIM0#,2#; NDE180..N..TUP AUDIO-RADIOLESS 6SPEAKER,BLACK METALLC,TRIM0#,2# |
55405-02531-C2 |
— | ||
|
55405B
|
55405B
55405-02540-C2
Panel Sub-Assy, Instrument Cluster Finish, Center
[06.2013 - 05.2016] NDE180..TUP BLACK METALLC,TRIM0#,2# |
55405-02540-C2 |
— | ||
|
55405B
|
55405B
55406-02640
Panel Sub-Assy, Instrument Cluster Finish, Center
[06.2016 -] NDE180,NRE180,ZRE18#..LHD |
55406-02640 |
— | ||
|
55406B
|
55406B
55406-02330
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[06.2016 -] NDE180,NRE180,ZRE18#..LHD |
55406-02330 |
— | ||
|
55406B
|
55406B
55406-02480-C0
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2#; NDE180..TUP AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),BLACK,TRIM0#,2#; NDE180..N..TUP AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM0#,2# |
55406-02480-C0 |
— | ||
|
55406B
|
55406B
55406-02480-C1
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2#; NDE180..TUP AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),EU BLACK,TRIM0#,2#; NDE180..N..TUP AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK,TRIM0#,2# |
55406-02480-C1 |
— | ||
|
55410C
|
55410C
55410-02160
Panel Assy, Instrument Cluster Finish
[06.2016 -] NDE180,NRE180,ZRE18#..TUP |
55410-02160 |
— | ||
|
55410C
|
55410C
55410-02260-C0
Panel Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55410-02260-C0 |
— | ||
| replacement | |||||
|
55410C
|
55410C
55410-02260-C1
Panel Assy, Instrument Cluster Finish
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55410-02260-C1 |
— | ||
|
55410C
|
55410C
55410-02260-C1
Panel Assy, Instrument Cluster Finish
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55410-02260-C1 |
— | ||
|
55422A
|
55422A
55422-02290-C0
Panel, Instrument Cluster Finish, Lower
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55422-02290-C0 |
— | ||
| replacement | |||||
|
55422A
|
55422A
55422-02290-C1
Panel, Instrument Cluster Finish, Lower
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55422-02290-C1 |
— | ||
|
55422A
|
55422A
55422-02290-C1
Panel, Instrument Cluster Finish, Lower
[05.2015 - 01.2017] ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2#; NDE180..TUP;ZRE181..CVT..N..GEN..SAP EU BLACK,TRIM0#,2# |
55422-02290-C1 |
— | ||
|
55440D
|
55440D
55440-02440-C0
Box Assy, Instrument Panel
[06.2016 -] ZRE181..6F..TUP;ZRE181..LHD..CVT..N;ZRE181..CVT..D..TUP;NDE180,NRE180,ZRE182..TUP EU BLACK,TRIM0#,2# |
55440-02440-C0 |
— | ||
|
55440D
|
55440D
55440-02710-C0
Box Assy, Instrument Panel
[06.2013 - 04.2015] NDE180..TUP BLACK,TRIM0#,2# |
55440-02710-C0 |
— | ||
| replacement | |||||
|
55440D
|
55440D
55440-02710-C1
Box Assy, Instrument Panel
[06.2013 - 04.2015] NDE180..TUP BLACK,TRIM0#,2# |
55440-02710-C1 |
— | ||
|
55440D
|
55440D
55440-02711-C1
Box Assy, Instrument Panel
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55440-02711-C1 |
— | ||
|
55445J
|
55445J
55445-02200
Spring, Instrument Panel Box
[06.2013 - 05.2016] NDE180..TUP |
55445-02200 |
— | ||
|
55445J
|
55445J
55445-02330
Spring, Instrument Panel Box
[06.2016 -] NDE180,NRE180,ZRE18#..LHD |
55445-02330 |
— | ||
|
55446A
|
55446A
55446-02380-C0
Base, Switch Hole, No.1
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55446-02380-C0 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-02380-C1
Base, Switch Hole, No.1
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55446-02380-C1 |
— | ||
|
55446A
|
55446A
55446-02380-C1
Base, Switch Hole, No.1
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55446-02380-C1 |
— | ||
|
55447C
|
55447C
55447-02210-C0
Base, Switch Hole, No.2
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55447-02210-C0 |
— | ||
|
55447C
|
55447C
55447-02210-C1
Base, Switch Hole, No.2
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55447-02210-C1 |
— | ||
|
55450B
|
55450B
55450-02130-C0
Box Assy, Coin
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55450-02130-C0 |
— | ||
| replacement | |||||
|
55450B
|
55450B
55450-02131-C1
Box Assy, Coin
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55450-02131-C1 |
— | ||
|
55450B
|
55450B
55450-02130-C1
Box Assy, Coin
[05.2015 - 07.2015] NDE180..TUP EU BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..SAP EU BLACK,TRIM2# |
55450-02130-C1 |
— | ||
| replacement | |||||
|
55450B
|
55450B
55450-02131-C1
Box Assy, Coin
[05.2015 - 07.2015] NDE180..TUP EU BLACK,TRIM0#,2#; NDE180,NRE180,ZRE18#..SAP EU BLACK,TRIM2# |
55450-02131-C1 |
— | ||
|
55450B
|
55450B
55450-02131-C1
Box Assy, Coin
[08.2015 - 01.2017] ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP EU BLACK,TRIM2#; NDE180..TUP;ZRE181..CVT..N..GEN..SAP EU BLACK,TRIM0#,2# |
55450-02131-C1 |
— | ||
|
55455B
|
55455B
55455-02160
Coin Box
[06.2013 - 11.2016] NDE180;NRE180,ZRE18#..SAP MARK=55455-02160 |
55455-02160 |
— | ||
|
55455B
|
55455B
55455-02161
Coin Box
[01.2017 -] NDE180,NRE180,ZRE18#..SAP; NDE180,NRE180,ZRE18#..TUP MARK=55455-02161 |
55455-02161 |
— | ||
|
55458E
|
55458E
90467-10203 Direct[06.2013 - 01.2017] NDE180..TUP;ZRE18#..GEN..SAP |
90467-10203 |
from US $0.64 |
||
|
55470
|
55470
55470-02330-A0
Garnish Assy, Instrument Cluster Finish Panel
[06.2013 - 05.2016] NDE180..TUP IVORY,TRIM0# |
55470-02330-A0 |
— | ||
|
55470
|
55470
55470-02330-C0
Garnish Assy, Instrument Cluster Finish Panel
[06.2013 - 05.2015] NDE180,ZRE18#..GEN BLACK,TRIM2# |
55470-02330-C0 |
— | ||
|
55470
|
55470
55470-02330-C1
Garnish Assy, Instrument Cluster Finish Panel
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM2# |
55470-02330-C1 |
— | ||
|
55521C
|
55521C
55521-05030
Cover, Stereo Opening
[06.2013 - 05.2016] NDE180..D..TUP AUDIO-RADIOLESS 4SPEAKER; NDE180..N..TUP AUDIO-RADIOLESS 6SPEAKER |
55521-05030 |
— | ||
|
55539
|
55539
55539-02100-C0
Cover, Spare Switch Hole
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55539-02100-C0 |
— | ||
|
55539
|
55539
55539-02100-C1
Cover, Spare Switch Hole
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55539-02100-C1 |
— | ||
|
55539C
|
55539C
55539-02100-C0
Cover, Spare Switch Hole
[06.2013 - 05.2015] NDE180..TUP MOROCCO SPEC,BLACK,TRIM0#,2# |
55539-02100-C0 |
— | ||
|
55539C
|
55539C
55539-02100-C1
Cover, Spare Switch Hole
[05.2015 - 05.2016] NDE180..TUP MOROCCO SPEC,EU BLACK,TRIM0#,2# |
55539-02100-C1 |
— | ||
|
55548A
|
55548A
55548-02640-C0
Cover, Instrument Panel Hole
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55548-02640-C0 |
— | ||
|
55548A
|
55548A
55548-02640-C1
Cover, Instrument Panel Hole
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55548-02640-C1 |
— | ||
|
55550
|
55550
55550-02361-C0
Door Assy, Glove Compartment
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55550-02361-C0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-02361-C1
Door Assy, Glove Compartment
[06.2013 - 05.2015] NDE180..TUP BLACK,TRIM0#,2# |
55550-02361-C1 |
— | ||
|
55550
|
55550
55550-02361-C1
Door Assy, Glove Compartment
[05.2015 - 05.2016] NDE180..TUP EU BLACK,TRIM0#,2# |
55550-02361-C1 |
— | ||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [06.2013 - 05.2016] NDE180..TUP |
55557-60050 |
from US $0.82 |
||
|
55606
|
55606
55606-02160
Cover Sub-Assy, Instrument Panel Under, No.1
[06.2013 - 05.2016] NDE180..TUP |
55606-02160 |
— | ||
|
55607
|
55607
55607-02080
Cover Sub-Assy, Instrument Panel Under, No.2
[06.2013 - 05.2016] NDE180..TUP |
55607-02080 |
— | ||
|
55660
|
55660
55660-02210-A0
Register Assy, Instrument Panel, No.2
[06.2013 - 05.2015] NDE180..D..TUP IVORY,TRIM0# |
55660-02210-A0 |
— | ||
|
55660
|
55660
55660-02210-C0
Register Assy, Instrument Panel, No.2
[06.2013 - 05.2015] ZRE18#..GEN;NDE180..D..TUP BLACK,TRIM2# |
55660-02210-C0 |
— | ||
|
55660
|
55660
55660-02210-C1
Register Assy, Instrument Panel, No.2
[05.2015 - 05.2016] NDE180..D..TUP EU BLACK,TRIM2# |
55660-02210-C1 |
— | ||
|
55660
|
55660
55680-12330-C0
Register Assy, Instrument Panel, No.2
[06.2016 -] ZRE181..CVT..N..GEN..SAP;NDE180,NRE180,ZRE18#..D..TUP BLACK,TRIM0#,2# |
55680-12330-C0 |
— | ||
|
55670A
|
55670A
55670-02390
Register Assy, Instrument Panel, Center
[06.2013 - 05.2016] NDE180..D..TUP |
55670-02390 |
— | ||
|
55670A
|
55670A
55670-02580-C0
Register Assy, Instrument Panel, Center
[06.2016 -] ZRE181..CVT..N..GEN..SAP;NDE180,NRE180,ZRE18#..D..TUP EU BLACK,TRIM0#,2# |
55670-02580-C0 |
— | ||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
5895960060
|
5895960060
58959-60060 Cushion, Instrument Panel |
58959-60060 |
from US $1.44 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046713082A0
|
9046713082A0
90467-13082-A0 Clip, Instrument Panel |
90467-13082-A0 |
from US $1.07 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
