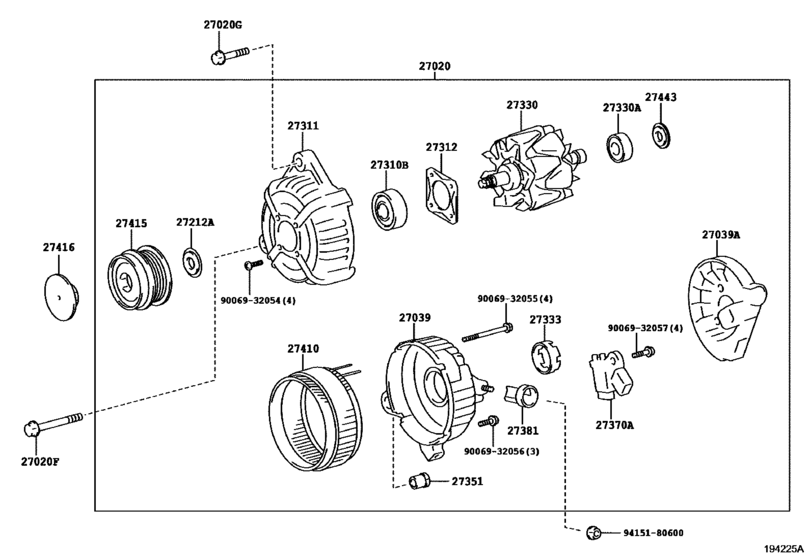

Alternator ([01.2014 - ] 12V 110A (1401- )1NDTV..SAP) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0N120
Alternator Assy
[01.2014 - 01.2017] 1NDTV..NDE180..SAP 12V 110A |
27060-0N120 |
— | ||
|
27020F
|
27020F
90105-W0044
Bolt, No.1(For Alternator)
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
90105-W0044 |
— | ||
|
27020G
|
27020G
90119-W0238
Bolt, No.2(For Alternator)
[06.2013 - 01.2017] 1N#..NDE180,NRE180..SAP (L) |
90119-W0238 |
— | ||
|
27020G
|
27020G
91671-00845 Bolt(For Alternator)[06.2013 - 01.2017] 1N#..NDE180,NRE180..SAP (J) |
91671-00845 |
US $1.38 |
||
|
27039
|
27039
27039-0N100
Cover, Alternator Rear End
[01.2014 - 01.2017] 1NDTV..NDE180..SAP |
27039-0N100 |
— | ||
|
27039A
|
27039A
27041-0Y160
Cover, Alternator Rear End, No.2
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
27041-0Y160 |
— | ||
|
27212A
|
27212A
90069-55035
Ring, Space
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
90069-55035 |
— | ||
|
27310B
|
27310B
90069-40005
Bearing(For Alternator Drive End Frame)
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
90069-40005 |
— | ||
|
27311
|
27311
27311-0N100
Frame, Alternator Drive End
[01.2014 - 01.2017] 1NDTV..NDE180..SAP |
27311-0N100 |
— | ||
|
27312
|
27312
27312-0Y160
Plate, Retainer
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
27312-0Y160 |
— | ||
|
27330
|
27330
27330-0N100
Rotor Assy, Alternator
[01.2014 - 01.2017] 1NDTV..NDE180..SAP |
27330-0N100 |
— | ||
|
27330A
|
27330A
90069-40006
Bearing(For Alternator Rotor)
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
90069-40006 |
— | ||
|
27333
|
27333
27333-0Y160
Collar, Space(For Alternator Rotor)
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
27333-0Y160 |
— | ||
|
27351
|
27351
90069-41002
Bush(For Alternator Rectifier End Frame)
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
90069-41002 |
— | ||
|
27370A
|
27370A
27700-0Y060
Holder Assy, Alternator Brush
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
27700-0Y060 |
— | ||
|
27381
|
27381
27381-0Y160
Support, Terminal, Alternator
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
27381-0Y160 |
— | ||
|
27410
|
27410
27410-0N100
Stator Assy, Alternator
[01.2014 - 01.2017] 1NDTV..NDE180..SAP |
27410-0N100 |
— | ||
|
27415
|
27415
27415-33110
Pulley, Alternator W/clutch
[01.2014 - 01.2017] 1NDTV..NDE180..SAP |
27415-33110 |
— | ||
|
27416
|
27416
27416-33010
Cap, Alternator Pulley
[01.2014 - 01.2017] 1NDTV..NDE180..SAP |
27416-33010 |
— | ||
|
27443
|
27443
27443-0Y160
Cover, Alternator Bearing
[01.2014 - 01.2017] 1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP |
27443-0Y160 |
— | ||
|
9006932054
|
9006932054
90069-32054
New Genuine Part
|
90069-32054 |
— | ||
|
9006932055
|
9006932055
90069-32055
New Genuine Part
|
90069-32055 |
— | ||
|
9006932056
|
9006932056
90069-32056
New Genuine Part
|
90069-32056 |
— | ||
|
9006932057
|
9006932057
90069-32057
New Genuine Part
|
90069-32057 |
— | ||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
