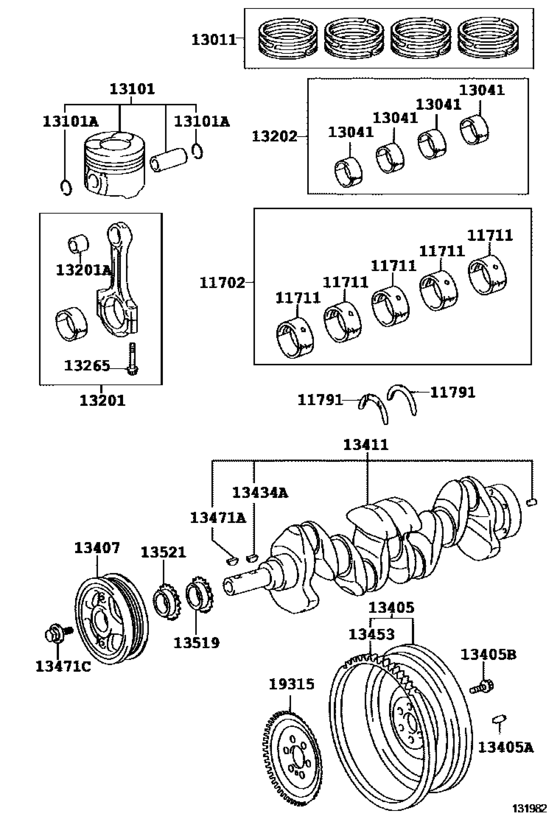

Crankshaft & Piston ([06.2013 - ] (1306- )1NDTV) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21031
Bearing Set, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 U/S 0.25 |
11704-21031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[06.2013 - 09.2014] 1NDTV..NDE180 U/S 0.25 |
11704-21032 |
US $173.26 |
||
|
11702
|
11702
11704-33060 Bearing Set, Crankshaft[09.2014 - 01.2017] 1NDTV..NDE180..SAP U/S 0.25 |
11704-33060 |
US $157.25 |
||
|
11711
|
11711
11701-0N020-01
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK 1,(L),REFER R/M |
11701-0N020-01 |
— | ||
|
11711
|
11711
11701-0N020-02
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK 2,(L),REFER R/M |
11701-0N020-02 |
— | ||
|
11711
|
11711
11701-0N020-03
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK 3,(L),REFER R/M |
11701-0N020-03 |
— | ||
|
11711
|
11711
11701-0N020-04
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK 4,(L),REFER R/M |
11701-0N020-04 |
— | ||
|
11711
|
11711
11701-0N021-01
Bearing, Crankshaft
[09.2014 - 01.2017] 1NDTV..NDE180 MARK 1,(L),REFER R/M |
11701-0N021-01 |
— | ||
|
11711
|
11711
11701-0N021-02
Bearing, Crankshaft
[09.2014 - 01.2017] 1NDTV..NDE180 MARK 2,(L),REFER R/M |
11701-0N021-02 |
— | ||
|
11711
|
11711
11701-0N021-03
Bearing, Crankshaft
[09.2014 - 01.2017] 1NDTV..NDE180 MARK 3,(L),REFER R/M |
11701-0N021-03 |
— | ||
|
11711
|
11711
11701-0N021-04
Bearing, Crankshaft
[09.2014 - 01.2017] 1NDTV..NDE180 MARK 4,(L),REFER R/M |
11701-0N021-04 |
— | ||
|
11711
|
11711
11701-21031-01
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK1,(J),REFER R/M |
11701-21031-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[06.2013 - 09.2014] 1NDTV..NDE180 MARK1,(J),REFER R/M |
11701-21032-01 |
from US $17.22 |
||
|
11711
|
11711
11701-21031-02
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK2,(J),REFER R/M |
11701-21031-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[06.2013 - 09.2014] 1NDTV..NDE180 MARK2,(J),REFER R/M |
11701-21032-02 |
from US $15.83 |
||
|
11711
|
11711
11701-21031-03
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK3,(J),REFER R/M |
11701-21031-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[06.2013 - 09.2014] 1NDTV..NDE180 MARK3,(J),REFER R/M |
11701-21032-03 |
from US $17.36 |
||
|
11711
|
11711
11701-21031-04
Bearing, Crankshaft
[06.2013 - 09.2014] 1NDTV..NDE180 MARK4,(J),REFER R/M |
11701-21031-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[06.2013 - 09.2014] 1NDTV..NDE180 MARK4,(J),REFER R/M |
11701-21032-04 |
US $47.27 |
||
|
11711
|
11711
11701-33060-01 Bearing, Crankshaft[09.2014 - 01.2017] 1NDTV..NDE180 MARK1,(J),REFER R/M |
11701-33060-01 |
US $26.35 |
||
|
11711
|
11711
11701-33060-02 Bearing, Crankshaft[09.2014 - 01.2017] 1NDTV..NDE180 MARK2,(J),REFER R/M |
11701-33060-02 |
US $26.35 |
||
|
11711
|
11711
11701-33060-03 Bearing, Crankshaft[09.2014 - 01.2017] 1NDTV..NDE180 MARK3,(J),REFER R/M |
11701-33060-03 |
US $26.35 |
||
|
11711
|
11711
11701-33060-04 Bearing, Crankshaft[09.2014 - 01.2017] 1NDTV..NDE180 MARK4,(J),REFER R/M |
11701-33060-04 |
US $26.35 |
||
|
11791
|
11791
11791-33030 Washer, Crankshaft Thrust, Upper[06.2013 - 01.2017] 1NDTV..NDE180 STD |
11791-33030 |
from US $17.94 |
||
|
11791
|
11791
11792-33030 Washer, Crankshaft Thrust, Upper[06.2013 - 01.2017] 1NDTV..NDE180 O/S 0.125 |
11792-33030 |
US $23.44 |
||
|
11791
|
11791
11793-33030 Washer, Crankshaft Thrust, Upper[06.2013 - 01.2017] 1NDTV..NDE180 O/S 0.25 |
11793-33030 |
US $23.44 |
||
|
13011
|
13011
13011-33054 Ring Set, Piston[07.2013 - 01.2017] 1NDTV..NDE180..SAP STD |
13011-33054 |
US $144.14 |
||
|
13041
|
13041
13041-33041-01 Bearing, Connecting Rod[06.2013 - 01.2017] 1NDTV..NDE180 MARK1,REFER REPAIR MANUAL |
13041-33041-01 |
US $17.47 |
||
|
13041
|
13041
13041-33041-02 Bearing, Connecting Rod[06.2013 - 01.2017] 1NDTV..NDE180 MARK2,REFER REPAIR MANUAL |
13041-33041-02 |
from US $10.34 |
||
|
13041
|
13041
13041-33041-03 Bearing, Connecting Rod[06.2013 - 01.2017] 1NDTV..NDE180 MARK3,REFER REPAIR MANUAL |
13041-33041-03 |
US $16.16 |
||
|
13101
|
13101
13101-0N072-A0
Piston Sub-Assy, W/pin
[07.2013 - 01.2017] 1NDTV..NDE180..SAP STD,MARK A,REFER REPAIR MANUAL |
13101-0N072-A0 |
— | ||
|
13101
|
13101
13101-0N072-B0 Piston Sub-Assy, W/pin[07.2013 - 01.2017] 1NDTV..NDE180..SAP STD,MARK B,REFER REPAIR MANUAL |
13101-0N072-B0 |
US $88.82 |
||
|
13101
|
13101
13101-0N072-C0 Piston Sub-Assy, W/pin[07.2013 - 01.2017] 1NDTV..NDE180..SAP STD,MARK C,REFER REPAIR MANUAL |
13101-0N072-C0 |
US $88.82 |
||
|
13101A
|
13101A
90080-52139 Ring, Hole Snap(For Piston Pin)[07.2013 - 01.2017] 1NDTV..NDE180..SAP |
90080-52139 |
US $1.16 |
||
|
13201
|
13201
13201-09B50
Rod Sub-Assy, Connecting
[05.2014 - 06.2016] 1NDTV..NDE180..SAP (L) |
13201-09B50 |
— | ||
|
13201
|
13201
13201-39055 Rod Sub-Assy, Connecting[06.2013 - 05.2014] 1NDTV..NDE180 |
13201-39055 |
US $117.94 |
||
|
13201A
|
13201A
90999-73147 Bush(For Connecting Rod Small End)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
90999-73147 |
US $2.62 |
||
|
13202
|
13202
13204-33041 Bearing Set, Connecting Rod[06.2013 - 01.2017] 1NDTV..NDE180..SAP U/S 0.25 |
13204-33041 |
from US $51.40 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[06.2013 - 01.2017] 1N#..NDE180,NRE180..SAP |
13265-21020 |
from US $3.30 |
||
|
13405
|
13405
13405-0N020
Flywheel Sub-Assy
[06.2013 - 01.2017] 1NDTV..NDE180..SAP (L) |
13405-0N020 |
— | ||
|
13405
|
13405
13405-33030 Flywheel Sub-Assy[06.2013 - 01.2017] 1NDTV..NDE180..SAP (J) |
13405-33030 |
US $461.55 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[06.2013 - 01.2017] 1N#..NDE180,NRE180..SAP L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90913-01024 Bolt, Flywheel Setting[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
90913-01024 |
US $1.76 |
||
|
13407
|
13407
13407-0N020
Damper Sub-Assy, Crankshaft
[07.2015 - 01.2017] 1NDTV..NDE180..SAP (L) |
13407-0N020 |
— | ||
|
13407
|
13407
13407-33050
Damper Sub-Assy, Crankshaft
[06.2013 - 07.2015] 1NDTV..NDE180 |
13407-33050 |
— | ||
|
13411
|
13411
13401-33020 Crankshaft[06.2013 - 09.2014] 1NDTV..NDE180 |
13401-33020 |
US $997.36 |
||
| replacement | |||||
|
13411
|
13411
13401-33021 Crankshaft[06.2013 - 09.2014] 1NDTV..NDE180 |
13401-33021 |
US $905.63 |
||
|
13411
|
13411
13401-33021 Crankshaft[09.2014 - 01.2017] 1NDTV..NDE180..SAP |
13401-33021 |
US $905.63 |
||
|
13434A
|
13434A
95161-30416 Pin, Straight(For Crankshaft)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
95161-30416 |
from US $1.48 |
||
|
13453
|
13453
13453-0N020
Gear, Flywheel Ring
[06.2013 - 01.2017] 1NDTV..NDE180..SAP (L) |
13453-0N020 |
— | ||
|
13453
|
13453
13453-55010
Gear, Flywheel Ring
[06.2013 - 01.2017] 1NDTV..NDE180..SAP (J) |
13453-55010 |
— | ||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
95161-30416 |
from US $1.48 |
||
|
13471C
|
13471C
90119-16004 Bolt(For Crankshaft Pulley Set)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
90119-16004 |
from US $5.56 |
||
|
13519
|
13519
13519-33010
Gear, Oil Pump Drive
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
13519-33010 |
— | ||
|
13521
|
13521
13521-33030 Gear Or Sprocket, Crankshaft TimingCRANKSHAFT TIMING [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
13521-33030 |
US $19.57 |
||
|
19315
|
19315
19315-33021 Plate, Crank Angle Sensor, No.1[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
19315-33021 |
US $29.27 |
||
