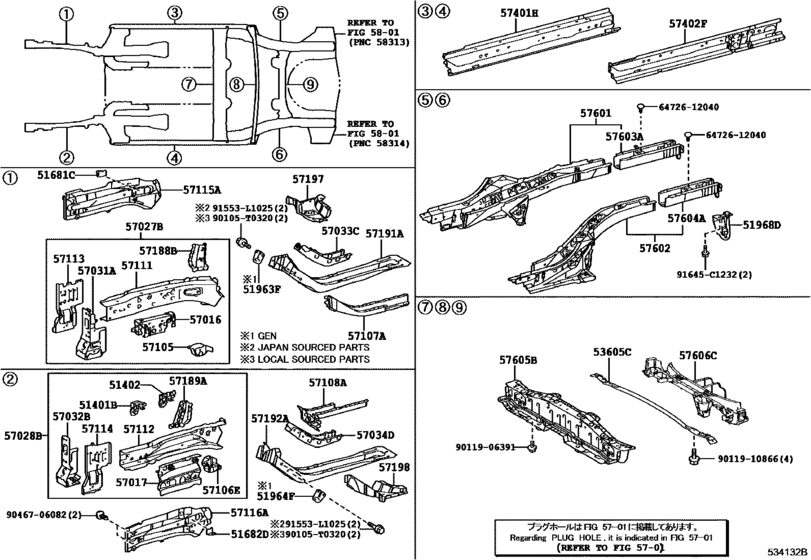

Floor Side Member ([01.2014 - ] (1401- )SAP) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401B
|
51401B
51401-12020 Bracket Sub-Assy, Engine Front Mounting[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
51401-12020 |
US $22.57 |
||
|
51402
|
51402
51402-12020 Bracket Sub-Assy, Engine Front Mounting, Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
51402-12020 |
US $23.44 |
||
|
51681C
|
51681C
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
51681-12080 |
US $8.01 |
||
|
51682D
|
51682D
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
51682-12080 |
US $8.01 |
||
|
51968D
|
51968D
51968-02100
Hook, Transport, Rear Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
51968-02100 |
— | ||
|
53605C
|
53605C
53605-12021 Brace Sub-Assy, Rear Floor Side Member[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53605-12021 |
US $117.06 |
||
|
57016
|
57016
57016-12110 Reinforcement Sub-Assy, Front Side Member, Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57016-12110 |
US $44.69 |
||
|
57017
|
57017
57017-12070 Reinforcement Sub-Assy, Front Side Member, Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57017-12070 |
US $41.34 |
||
|
57027B
|
57027B
57027-02040
Member Sub-Assy, Front Side, Inner Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57027-02040 |
— | ||
|
57028B
|
57028B
57028-02030
Member Sub-Assy, Front Side, Inner Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57028-02030 |
— | ||
|
57031A
|
57031A
57031-12010 Reinforce Sub-Assy, Front Side Member, No.2 Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57031-12010 |
US $96.20 |
||
|
57032B
|
57032B
57032-12010 Reinforcement Sub-Assy, Front Side Member, No.2 Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57032-12010 |
from US $102.12 |
||
|
57033C
|
57033C
57033-12010 Reinforce Sub-Assy, Front Side Member, No.3 Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57033-12010 |
US $55.47 |
||
|
57034D
|
57034D
57034-12010 Reinforce Sub-Assy, Front Side Menber, No.3 Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57034-12010 |
US $55.47 |
||
|
57105
|
57105
57105-12160 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57105-12160 |
US $31.30 |
||
|
57106E
|
57106E
57106-12150 Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57106-12150 |
US $33.20 |
||
|
57107A
|
57107A
57107-12120 Plate Sub-Assy, Front Side Member, No.2 Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57107-12120 |
US $58.97 |
||
|
57108A
|
57108A
57108-12140 Plate Sub-Assy, Front Side Member, No.2 Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57108-12140 |
US $59.11 |
||
|
57111
|
57111
57111-02120
Member, Front Side, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57111-02120 |
— | ||
|
57112
|
57112
57112-02110
Member, Front Side, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57112-02110 |
— | ||
|
57113
|
57113
57113-02080
Extension, Front Side Member, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57113-02080 |
— | ||
|
57114
|
57114
57114-02080
Extension, Front Side Member, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57114-02080 |
— | ||
|
57115A
|
57115A
57115-02050
Plate, Front Side Member, Outer Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57115-02050 |
— | ||
|
57116A
|
57116A
57116-02050
Plate, Front Side Member, Outer Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57116-02050 |
— | ||
|
57188B
|
57188B
57188-12030 Gusset, Front Side Member To Spring Support, Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57188-12030 |
US $19.36 |
||
|
57189A
|
57189A
57189-12010 Gusset, Front Side Member To Spring Support, Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57189-12010 |
US $21.99 |
||
|
57191A
|
57191A
57191-02110
Member, Front Side, Inner Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57191-02110 |
— | ||
|
57192A
|
57192A
57192-02110
Member, Front Side, Inner Rear Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57192-02110 |
— | ||
|
57197
|
57197
57197-12040 Box, Torque, Front Rh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57197-12040 |
US $50.38 |
||
|
57198
|
57198
57198-12040 Box, Torque, Front Lh[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57198-12040 |
US $50.38 |
||
|
57401H
|
57401H
57401-02240
Member Sub-Assy, Floor Side, Inner Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57401-02240 |
— | ||
|
57402F
|
57402F
57402-02240
Member Sub-Assy, Floor Side, Inner Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57402-02240 |
— | ||
|
57601
|
57601
57601-02929
Member Sub-Assy, Rear Floor Side, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57601-02929 |
— | ||
|
57602
|
57602
57602-02928
Member Sub-Assy, Rear Floor Side, Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57602-02928 |
— | ||
|
57603A
|
57603A
57603-02070
Member, Rear Floor Side, Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57603-02070 |
— | ||
|
57604A
|
57604A
57604-02040
Member, Rear Floor Side, Rear Lh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57604-02040 |
— | ||
|
57605B
|
57605B
57605-02140
Member Sub-Assy, Rear Floor Cross, No.1
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57605-02140 |
— | ||
|
57606C
|
57606C
57606-02100
Member Sub-Assy, Rear Floor Cross, No.2
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
57606-02100 |
— | ||
|
90105T0320
|
90105T0320
90105-T0320
New Genuine Part
|
90105-T0320 |
— | ||
|
91553L1025
|
91553L1025
91553-L1025 New Genuine Part |
91553-L1025 |
US $1.31 |
||
|
91645C1232
|
91645C1232
91645-C1232 New Genuine Part |
91645-C1232 |
US $2.56 |
||
|
6472612040
|
6472612040
64726-12040 Clip, Luggage Trim, RearLUGGAGE TRIM, REAR |
64726-12040 |
US $1.16 |
||
|
9011906391
|
9011906391
90119-06391 Bolt, W/Washer |
90119-06391 |
US $1.60 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.99 |
||
|
9046706082
|
9046706082
90467-06082 New Genuine Part |
90467-06082 |
US $1.44 |
