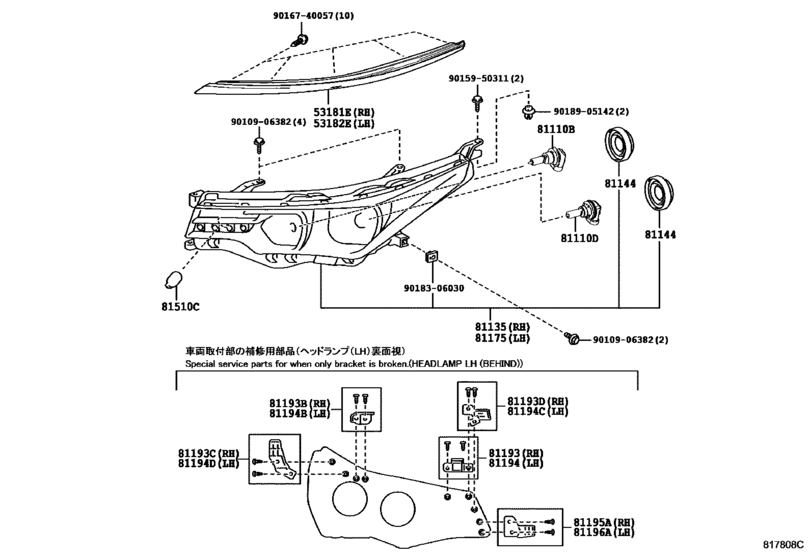

Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1606- )TUP ; (1701- )SAP) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53181E
|
53181E
53181-02010 Cover, Headlamp, Rh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53181-02010 |
US $86.37 |
||
|
53182E
|
53182E
53182-02010 Cover, Headlamp, Lh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
53182-02010 |
US $92.16 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $16.34 |
||
|
81110D
|
81110D
90981-13075 Bulb(For Headlamp, No.1)[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP 12V 55W,HALOGEN |
90981-13075 |
from US $17.86 |
||
|
81135
|
81135
81130-02L40
Unit Assy, Headlamp, Rh
[01.2017 -] NDE180,NRE180,ZRE18#..SA |
81130-02L40 |
— | ||
|
81144
|
81144
90075-65006 Cover, Headlamp Back, No.1[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
90075-65006 |
from US $5.19 |
||
|
81175
|
81175
81170-02L40
Unit Assy, Headlamp, Lh
[01.2017 -] NDE180,NRE180,ZRE18#..SA |
81170-02L40 |
— | ||
|
81193
|
81193
81193-02110
Retainer, Headlamp Protector, Upper Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81193-02110 |
— | ||
|
81193
|
81193
81193-02270
Retainer, Headlamp Protector, Upper Rh
[06.2016 -] NDE180,NRE180,ZRE18# |
81193-02270 |
— | ||
|
81193B
|
81193B
81193-02100
Retainer, Headlamp Protector, Upper Rh No.2
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81193-02100 |
— | ||
|
81193B
|
81193B
81193-02260
Retainer, Headlamp Protector, Upper Rh No.2
[06.2016 -] NDE180,NRE180,ZRE18# |
81193-02260 |
— | ||
|
81193C
|
81193C
81193-02090
Retainer, Rh Headlamp Protector, Upper Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81193-02090 |
— | ||
|
81193C
|
81193C
81193-02250
Retainer, Rh Headlamp Protector, Upper Rh
[06.2016 -] NDE180,NRE180,ZRE18# |
81193-02250 |
— | ||
|
81193D
|
81193D
81193-02120
Retainer, Rh Headlamp Protector, Upper Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81193-02120 |
— | ||
|
81193D
|
81193D
81193-02280
Retainer, Rh Headlamp Protector, Upper Lh
[06.2016 -] NDE180,NRE180,ZRE18# |
81193-02280 |
— | ||
|
81194
|
81194
81194-02110
Retainer, Headlamp Protector, Upper Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81194-02110 |
— | ||
|
81194
|
81194
81194-02270
Retainer, Headlamp Protector, Upper Lh
[06.2016 -] NDE180,NRE180,ZRE18# |
81194-02270 |
— | ||
|
81194B
|
81194B
81194-02100
Retainer, Headlamp Protector, Upper Lh No.2
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81194-02100 |
— | ||
|
81194B
|
81194B
81194-02260
Retainer, Headlamp Protector, Upper Lh No.2
[06.2016 -] NDE180,NRE180,ZRE18# |
81194-02260 |
— | ||
|
81194C
|
81194C
81194-02120
Retainer, Lh Headlamp Protector, Upper Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81194-02120 |
— | ||
|
81194C
|
81194C
81194-02280
Retainer, Lh Headlamp Protector, Upper Rh
[06.2016 -] NDE180,NRE180,ZRE18# |
81194-02280 |
— | ||
|
81194D
|
81194D
81194-02090
Retainer, Lh Headlamp Protector, Upper Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81194-02090 |
— | ||
|
81194D
|
81194D
81194-02250
Retainer, Lh Headlamp Protector, Upper Lh
[06.2016 -] NDE180,NRE180,ZRE18# |
81194-02250 |
— | ||
|
81195A
|
81195A
81193-02130
Retainer, Headlamp Protector, Lower Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81193-02130 |
— | ||
|
81195A
|
81195A
81193-02290
Retainer, Headlamp Protector, Lower Rh
[06.2016 -] NDE180,NRE180,ZRE18# |
81193-02290 |
— | ||
|
81196A
|
81196A
81194-02130
Retainer, Headlamp Protector, Lower Lh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
81194-02130 |
— | ||
|
81196A
|
81196A
81194-02290
Retainer, Headlamp Protector, Lower Lh
[06.2016 -] NDE180,NRE180,ZRE18# |
81194-02290 |
— | ||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP 12V 21W,AMBER |
90981-15021 |
from US $3.51 |
||
|
9010906382
|
9010906382
90109-06382 BOLT |
90109-06382 |
from US $0.54 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9016740057
|
9016740057
90167-40057 SCREW, PAN TAPPING |
90167-40057 |
from US $0.96 |
||
|
9018306030
|
9018306030
90183-06030 NUT SPRING |
90183-06030 |
from US $0.78 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
