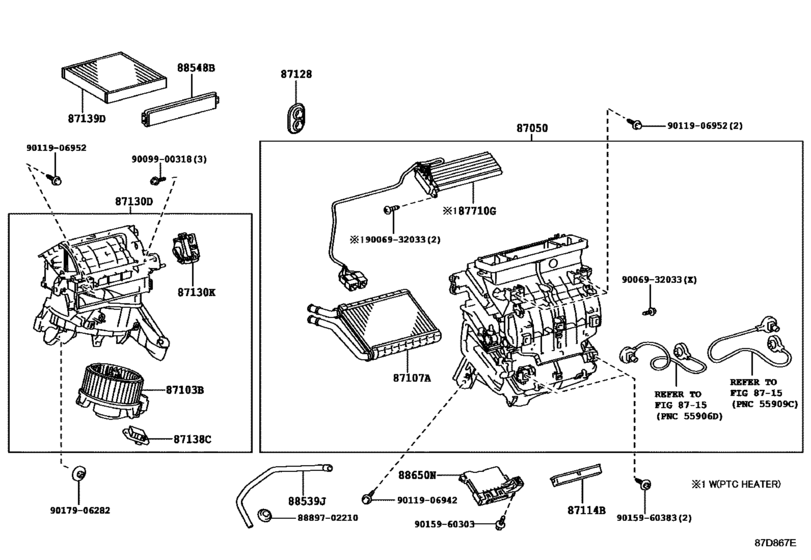

Heating & Air Conditioning - Cooler Unit ([01.2014 - ] MANUAL HEATER (1401- )SA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-02E00
Radiator Assy, Air Conditioner
[01.2014 - 01.2017] NDE180..SAP |
87050-02E00 |
— | ||
|
87050
|
87050
87050-02E10
Radiator Assy, Air Conditioner
[01.2014 - 01.2017] NDE180..D..SAP AIR CONDITIONER-WITHOUT |
87050-02E10 |
— | ||
|
87103B
|
87103B
87103-02460
Motor Sub-Assy, Blower W/fan
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
87103-02460 |
— | ||
|
87107A
|
87107A
87107-02210
Unit Sub-Assy, Heater Radiator
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87107-02210 |
— | ||
|
87114B
|
87114B
87114-0K010
Cover, Heater
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87114-0K010 |
— | ||
|
87128
|
87128
87128-02140
Grommet, Heater
[10.2016 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
87128-02140 |
— | ||
|
87128
|
87128
87128-42010
Grommet (For Heater Pipe)
[01.2014 - 09.2016] NDE180,NRE180,ZRE18#..SAP |
87128-42010 |
— | ||
|
87130D
|
87130D
87130-02402
Blower Assy
[01.2014 - 01.2017] NDE180..SAP |
87130-02402 |
— | ||
|
87130K
|
87130K
87106-02350
Servo Sub-Assy, Damper(For Recirculation)
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
87106-02350 |
— | ||
|
87138C
|
87138C
87138-0K090 Resistor, BlowerBLOWER [01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
87138-0K090 |
from US $16.26 |
||
|
87139D
|
87139D
87139-50100 Clean Air Filter (Charcoal type)[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP *DPF |
87139-50100 |
from US $60.80 |
||
|
87139D
|
87139D
87139-52040 Filter, Clean Air[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP POLLEN FILTER |
87139-52040 |
from US $30.40 |
||
|
87710G
|
87710G
87710-0K040
Quick Heater Assy
[01.2014 - 01.2017] NDE180..SAP |
87710-0K040 |
— | ||
|
88539J
|
88539J
88539-02280
Hose, Drain Cooler
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
88539-02280 |
— | ||
|
88548B
|
88548B
88548-02080
Case, Air Filter
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
88548-02080 |
— | ||
|
88650N
|
88650N
88650-02B50
Amplifier Assy, Air Conditioner
[01.2014 - 01.2017] NDE180..D..SAP AIR CONDITIONER-WITHOUT |
88650-02B50 |
— | ||
|
88650N
|
88650N
88650-02E20
Amplifier Assy, Air Conditioner
[06.2013 - 01.2017] NDE180..SAP |
88650-02E20 |
— | ||
|
88650N
|
88650N
88650-02F40
Amplifier Assy, Air Conditioner
[06.2016 - 11.2017] NDE180;NRE180..N..TUP; NRE180..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER |
88650-02F40 |
— | ||
|
9006932033
|
9006932033
90069-32033
New Genuine Part
|
90069-32033 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
