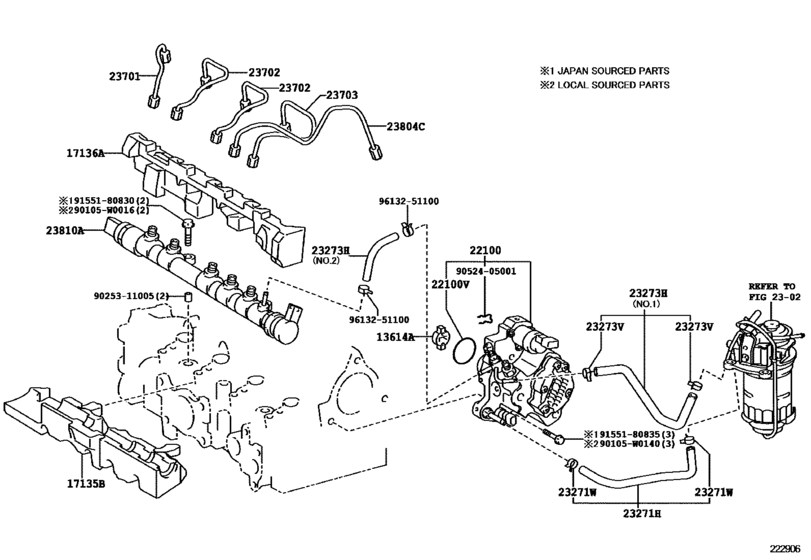

Injection Pump Assembly ([06.2013 - ] (1306- )1NDTV) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13614A
|
13614A
13614-0N010
Coupling, Supply Pump Drive
[06.2013 - 01.2017] 1NDTV..NDE180..SAP (L) |
13614-0N010 |
— | ||
|
13614A
|
13614A
13614-33010 Coupling, Supply Pump Drive[06.2013 - 01.2017] 1NDTV..NDE180..SAP (J) |
13614-33010 |
US $18.05 |
||
|
17135B
|
17135B
17135-0N010
Insulator, Intake Manifold, No.1
[06.2013 - 10.2015] 1NDTV..NDE180 (L) |
17135-0N010 |
— | ||
|
17135B
|
17135B
17135-0N011
Insulator, Intake Manifold, No.1
[10.2015 - 01.2017] 1NDTV..NDE180..SAP (L) |
17135-0N011 |
— | ||
|
17135B
|
17135B
17135-33011 Insulator, Intake Manifold, No.1INTAKE MANIFOLD, NO.1 [06.2013 - 10.2015] 1NDTV..NDE180 (J) |
17135-33011 |
US $25.19 |
||
| replacement | |||||
|
17135B
|
17135B
17135-33012
Insulator, Intake Manifold, No.1
[06.2013 - 10.2015] 1NDTV..NDE180 (J) |
17135-33012 |
— | ||
|
17135B
|
17135B
17135-33012
Insulator, Intake Manifold, No.1
[10.2015 - 01.2017] 1NDTV..NDE180..SAP (J) |
17135-33012 |
— | ||
|
17136A
|
17136A
17136-0N010
Insulator, Intake Manifold, No.2
[06.2013 - 01.2017] 1NDTV..NDE180..SAP (L) |
17136-0N010 |
— | ||
|
17136A
|
17136A
17136-33010 Insulator, Intake Manifold, No.2INTAKE MANIFOLD, NO.2 [06.2013 - 01.2017] 1NDTV..NDE180..SAP (J) |
17136-33010 |
US $22.86 |
||
|
22100
|
22100
22100-0W010
Pump Assy, Injection Or Supply
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
22100-0W010 |
— | ||
|
22100V
|
22100V
96723-35044 Ring, O(For Injection Pump)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
96723-35044 |
from US $3.02 |
||
|
23271H
|
23271H
23271-0N030
Hose, Fuel, No.1
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
23271-0N030 |
— | ||
|
23271W
|
23271W
96132-51300 Clip(For Ventilation Hose No.2)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
96132-51300 |
from US $1.56 |
||
|
23273H
|
23273H
23273-0N020
Hose, Fuel, No.2
[06.2013 - 01.2017] 1NDTV..NDE180..SAP (L),NO.2:SEE ILLUST |
23273-0N020 |
— | ||
|
23273H
|
23273H
23273-0N030
Hose, Fuel, No.2
[06.2013 - 01.2017] 1NDTV..NDE180..SAP NO.1:REFER ILLUST. |
23273-0N030 |
— | ||
|
23273H
|
23273H
23273-33090 Hose, Fuel, No.2FUEL, NO.2 [06.2013 - 01.2017] 1NDTV..NDE180..SAP (J),NO.2:SEE ILLUST |
23273-33090 |
US $5.24 |
||
|
23273V
|
23273V
96132-51100 Clip (For Hose)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
96132-51100 |
from US $1.92 |
||
|
23701
|
23701
23701-33040 Pipe Sub-Assy, Injection, No.1INJECTION, NO.1 [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
23701-33040 |
US $24.17 |
||
|
23702
|
23702
23702-33010 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
23702-33010 |
US $24.17 |
||
|
23703
|
23703
23703-33010 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
23703-33010 |
US $24.17 |
||
|
23804C
|
23804C
23804-33020 Pipe Sub-Assy, Fuel InletFUEL INLET [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
23804-33020 |
US $32.18 |
||
|
23810A
|
23810A
23810-33030 Rail Assy, CommonCOMMON [06.2013 - 10.2015] 1NDTV..NDE180 |
23810-33030 |
US $516.88 |
||
| replacements | |||||
|
23810A
|
23810A
17135-33012
Insulator, Intake Manifold, No.1
[06.2013 - 10.2015] 1NDTV..NDE180 |
17135-33012 |
— | ||
|
23810A
|
23810A
23810-33031 Rail Assy, Common[06.2013 - 10.2015] 1NDTV..NDE180 |
23810-33031 |
US $503.19 |
||
|
23810A
|
23810A
23810-33031 Rail Assy, Common[10.2015 - 01.2017] 1NDTV..NDE180..SAP |
23810-33031 |
US $503.19 |
||
|
90105W0016
|
90105W0016
90105-W0016
New Genuine Part
|
90105-W0016 |
— | ||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $0.96 |
||
|
9052405001
|
9052405001
90524-05001 New Genuine Part |
90524-05001 |
US $1.02 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
