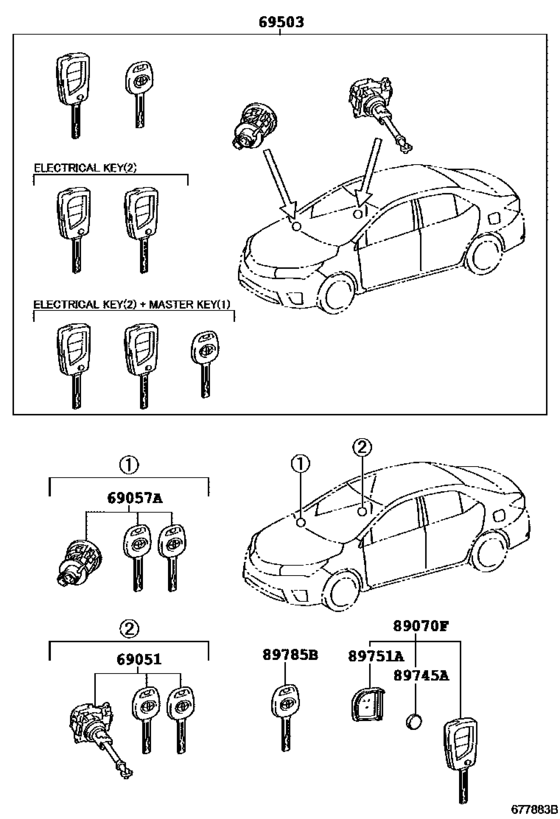

Lock Cylinder Set ([01.2014 - ] WITHOUT(SMART KEY) (1401- )SA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-02260
Cylinder & Key Set, Door Lock, Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
69051-02260 |
— | ||
|
69057A
|
69057A
69057-02680
Cylinder & Key Set, Ignition Switch Lock
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
69057-02680 |
— | ||
|
69503
|
69503
89704-02640
Cylinder Set, Lock
[01.2014 - 01.2017] NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK) |
89704-02640 |
— | ||
|
69503
|
69503
89704-02660
Cylinder Set, Lock
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA; NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM); NDE180,NRE180,ZRE18#..N..SA W/O(DESTINATION PACKAGE)&WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM); NDE180,NRE180,ZRE18#..N..SA EXCEPT SOU |
89704-02660 |
— | ||
|
89070F
|
89070F
89070-02830
Transmitter Assy, Door Control (Cut Key)
[01.2014 - 01.2017] NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK); ZRE18#..N..GEN..SAP WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AIR CONDITIONER-AUTO AIR CONDITIONER&S RS AIR BAG-WITH(*DRS & *PAS & SIDE |
89070-02830 |
— | ||
|
89745A
|
89745A
89745-0H010
Battery, Transmitter
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP CR2016; NDE180,NRE180,ZRE18#..N..SAP WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
89745-0H010 |
— | ||
|
89751A
|
89751A
89751-05020
Cover, Transmitter Housing
[01.2014 - 01.2017] NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK); ZRE18#..N..GEN..SAP WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AIR CONDITIONER-AUTO AIR CONDITIONER&S RS AIR BAG-WITH(*DRS & *PAS & SIDE |
89751-05020 |
— | ||
|
89785B
|
89785B
89785-02300
Transmitter, Transponder Key Master
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC; NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK) |
89785-02300 |
— |
