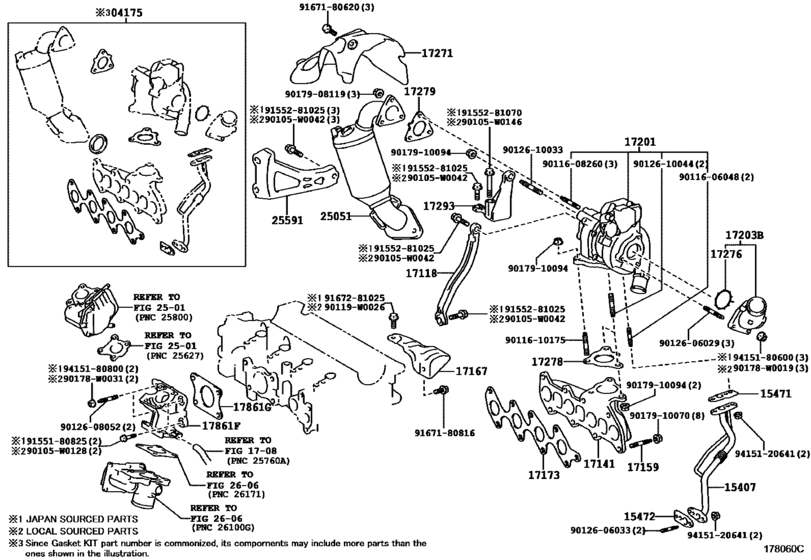

Manifold ([06.2013 - ] (1306- )1NDTV) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-33070 Gasket Kit, TurbochargerTURBOCHARGER [06.2013 - 09.2014] 1NDTV..NDE180 |
04175-33070 |
US $62.32 |
||
| replacement | |||||
|
04175
|
04175
04175-33071 Gasket Kit, Turbocharger[06.2013 - 09.2014] 1NDTV..NDE180 |
04175-33071 |
US $56.64 |
||
|
04175
|
04175
04175-33071 Gasket Kit, Turbocharger[09.2014 - 01.2017] 1NDTV..NDE180..SAP |
04175-33071 |
US $56.64 |
||
|
15407
|
15407
15407-0N010
Pipe Sub-Assy, Turbo Oil Inlet
[04.2015 - 01.2017] 1NDTV..NDE180..SAP (L) |
15407-0N010 |
— | ||
|
15407
|
15407
15407-33021 Pipe Sub-Assy, Turbo Oil Inlet[06.2013 - 04.2015] 1NDTV..NDE180 |
15407-33021 |
US $42.95 |
||
|
15471
|
15471
15471-0N010
Gasket, Turbo Oil Inlet
[04.2015 - 01.2017] 1NDTV..NDE180..SAP |
15471-0N010 |
— | ||
|
15471
|
15471
15471-33010 Gasket, Turbo Oil InletTURBO OIL INLET [06.2013 - 04.2015] 1NDTV..NDE180 |
15471-33010 |
US $5.82 |
||
|
15472
|
15472
15472-33020 Gasket, Turbo Oil Outlet, No.1TURBO OIL OUTLET, NO.1 [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
15472-33020 |
US $4.02 |
||
|
17118
|
17118
17118-33040 Stay, ManifoldMANIFOLD [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
17118-33040 |
US $44.84 |
||
|
17141
|
17141
17141-33050 Manifold, ExhaustEXHAUST [06.2013 - 04.2015] 1NDTV..NDE180 |
17141-33050 |
US $163.07 |
||
| replacement | |||||
|
17141
|
17141
17141-33080 Manifold, Exhaust[06.2013 - 04.2015] 1NDTV..NDE180 |
17141-33080 |
US $147.06 |
||
|
17141
|
17141
17141-33080 Manifold, Exhaust[04.2015 - 01.2017] 1NDTV..NDE180..SAP |
17141-33080 |
US $147.06 |
||
|
17159
|
17159
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh)[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
90126-10033 |
from US $4.82 |
||
|
17167
|
17167
17167-33030
Insulator, Exhaust Manifold Heat, No.1
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
17167-33030 |
— | ||
|
17173
|
17173
17173-33030 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [06.2013 - 08.2014] 1NDTV..NDE180 |
17173-33030 |
US $15.72 |
||
| replacement | |||||
|
17173
|
17173
17173-33031 Gasket, Exhaust Manifold To Head[06.2013 - 08.2014] 1NDTV..NDE180 |
17173-33031 |
US $15.20 |
||
|
17173
|
17173
17173-33031 Gasket, Exhaust Manifold To Head[09.2014 - 01.2017] 1NDTV..NDE180..SAP |
17173-33031 |
US $15.20 |
||
|
17201
|
17201
17201-0N042 Turbocharger Sub-Assy[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
17201-0N042 |
US $1,722.74 |
||
|
17203B
|
17203B
17203-0N010
Elbow Sub-Assy, Compressor Inlet
[04.2015 - 01.2017] 1NDTV..NDE180..SAP (L) |
17203-0N010 |
— | ||
|
17203B
|
17203B
17203-33010 Elbow Sub-Assy, Compressor InletCOMPRESSOR INLET [06.2013 - 04.2015] 1NDTV..NDE180 |
17203-33010 |
US $32.61 |
||
|
17271
|
17271
17271-33060
Insulator, Turbo, No.1
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
17271-33060 |
— | ||
|
17276
|
17276
17276-33010
Gasket, Compressor Inlet
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
17276-33010 |
— | ||
|
17278
|
17278
17278-33010 Gasket, Turbo To Exhaust ManifoldTURBO TO EXHAUST MANIFOLD [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
17278-33010 |
US $6.12 |
||
|
17279
|
17279
17279-27020 Gasket, Turbine Outlet ElbowTURBINE OUTLET ELBOW [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
17279-27020 |
US $5.36 |
||
|
17293
|
17293
17293-0N010
Stay, Turbocharger
[04.2014 - 01.2017] 1NDTV..NDE180..SAP (L) |
17293-0N010 |
— | ||
|
17293
|
17293
17293-33010 Stay, TurbochargerTURBOCHARGER [06.2013 - 04.2014] 1NDTV..NDE180 |
17293-33010 |
US $44.84 |
||
|
17861F
|
17861F
17861-0N010
Connector, Intake Air
[04.2015 - 01.2017] 1NDTV..NDE180..SAP (L) |
17861-0N010 |
— | ||
|
17861F
|
17861F
17861-33080 Connector, Intake Air[06.2013 - 04.2015] 1NDTV..NDE180 |
17861-33080 |
US $74.26 |
||
|
17861G
|
17861G
26171-33050 Gasket, Intake Air ConnectorINTAKE AIR CONNECTOR [06.2013 - 01.2017] 1NDTV..NDE180..SAP |
26171-33050 |
US $8.04 |
||
|
25051
|
25051
25051-33060
Converter Sub-Assy, Exhaust Manifold
[06.2013 - 01.2017] 1NDTV..NDE180..SAP *114=TOYOTA/*207/Y |
25051-33060 |
— | ||
|
25591
|
25591
25591-33030
Bracket, Manifold Support
[06.2013 - 01.2017] 1NDTV..NDE180..SAP |
25591-33030 |
— | ||
|
90105W0042
|
90105W0042
90105-W0042
New Genuine Part
|
90105-W0042 |
— | ||
|
90105W0128
|
90105W0128
90105-W0128
New Genuine Part
|
90105-W0128 |
— | ||
|
90105W0146
|
90105W0146
90105-W0146
Bolt, No.2(For Alternator)
|
90105-W0146 |
— | ||
|
90119W0026
|
90119W0026
90119-W0026
New Genuine Part
|
90119-W0026 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.84 |
||
|
9011608260
|
9011608260
90116-08260 Bolt, Stud(For Turbine Housing) |
90116-08260 |
US $1.60 |
||
|
9011610175
|
9011610175
90116-10175 Bolt, Stud(For Turbine Housing) |
90116-10175 |
US $2.40 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.68 |
||
| replacement | |||||
|
9012606029
|
9012606029
90126-A0014 Bolt, Stud(For Oil Strainer) |
90126-A0014 |
US $1.77 |
||
|
9012606033
|
9012606033
90126-06033 New Genuine Part |
90126-06033 |
US $0.73 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.82 |
||
|
9012610033
|
9012610033
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10033 |
from US $4.82 |
||
|
9012610044
|
9012610044
90126-10044 New Genuine Part |
90126-10044 |
US $1.60 |
||
|
9017908119
|
9017908119
90179-08119 NUT |
90179-08119 |
US $1.44 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.93 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.60 |
||
|
9155281070
|
9155281070
91552-81070 Bolt(For Alternator) |
91552-81070 |
from US $1.33 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $0.96 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.17 |
||
|
9415120641
|
9415120641
94151-20641 New Genuine Part |
94151-20641 |
US $1.44 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
