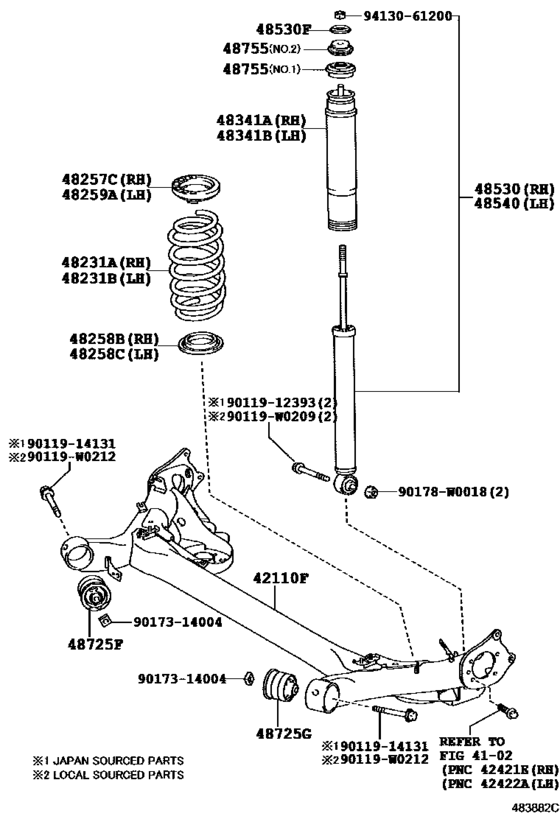

Rear Spring & Shock Absorber ([06.2013 - ] (1306- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42101-02300
Beam Assy, Rear Axle
[01.2017 -] NDE180,NRE180,ZRE18#..SAP |
42101-02300 |
— | ||
|
42110F
|
42110F
42101-02490
Beam Assy, Rear Axle
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
42101-02490 |
— | ||
|
48231A
|
48231A
48231-02D50
Spring, Coil, Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48231-02D50 |
— | ||
|
48231A
|
48231A
48231-02D60
Spring, Coil, Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP ROUGH ROAD AREA SPEC |
48231-02D60 |
— | ||
|
48231B
|
48231B
48231-02D50
Spring, Coil, Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48231-02D50 |
— | ||
|
48231B
|
48231B
48231-02D60
Spring, Coil, Rear Rh
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP ROUGH ROAD AREA SPEC |
48231-02D60 |
— | ||
|
48257C
|
48257C
48257-0D010
Insulator, Rear Coil Spring, Upper Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48257-0D010 |
— | ||
|
48258B
|
48258B
48258-0D050
Insulator, Rear Coil Spring, Lower Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48258-0D050 |
— | ||
|
48258C
|
48258C
48258-0D050
Insulator, Rear Coil Spring, Lower Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48258-0D050 |
— | ||
|
48259A
|
48259A
48257-0D010
Insulator, Rear Coil Spring, Upper Rh
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48257-0D010 |
— | ||
|
48341A
|
48341A
48341-02080 Bumper, Rear Spring, No.1 RhREAR SPRING, NO.1 RH [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48341-02080 |
US $21.69 |
||
|
48341B
|
48341B
48341-02080 Bumper, Rear Spring, No.1 RhREAR SPRING, NO.1 RH [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48341-02080 |
US $21.69 |
||
|
48530
|
48530
48530-09W70
Absorber Assy, Shock, Rear Rh
[06.2013 - 12.2014] NDE180,NRE180,ZRE18# MARK 48530-02A70,ROUGH ROAD AREA SPEC |
48530-09W70 |
— | ||
| replacement | |||||
|
48530
|
48530
48530-09W72
Absorber Assy, Shock, Rear Rh
[06.2013 - 12.2014] NDE180,NRE180,ZRE18# MARK 48530-02A70,ROUGH ROAD AREA SPEC |
48530-09W72 |
— | ||
|
48530
|
48530
48530-09W71
Absorber Assy, Shock, Rear Rh
[12.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP MARK 48530-02F50,ROUGH ROAD AREA SPEC |
48530-09W71 |
— | ||
|
48530
|
48530
48530-09Y20 Absorber Assy, Shock, Rear Rh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP MARK 48530-02B90 |
48530-09Y20 |
US $88.32 |
||
|
48530F
|
48530F
90948-02159 Retainer, Cushion, No.1(For Front Shock Absorber)[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
90948-02159 |
from US $4.16 |
||
|
48540
|
48540
48530-09W70
Absorber Assy, Shock, Rear Rh
[06.2013 - 12.2014] NDE180,NRE180,ZRE18# MARK 48530-02A70,ROUGH ROAD AREA SPEC |
48530-09W70 |
— | ||
| replacement | |||||
|
48540
|
48540
48530-09W72
Absorber Assy, Shock, Rear Rh
[06.2013 - 12.2014] NDE180,NRE180,ZRE18# MARK 48530-02A70,ROUGH ROAD AREA SPEC |
48530-09W72 |
— | ||
|
48540
|
48540
48530-09W71
Absorber Assy, Shock, Rear Rh
[12.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP MARK 48530-02F50,ROUGH ROAD AREA SPEC |
48530-09W71 |
— | ||
|
48540
|
48540
48530-09Y20 Absorber Assy, Shock, Rear Rh[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP MARK 48530-02B90 |
48530-09Y20 |
US $88.32 |
||
|
48725F
|
48725F
48725-02200 Bush, Rear Axle Carrier, RhREAR AXLE CARRIER, RH [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48725-02200 |
US $66.89 |
||
|
48725G
|
48725G
48725-02200 Bush, Rear Axle Carrier, RhREAR AXLE CARRIER, RH [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
48725-02200 |
US $66.89 |
||
|
48755
|
48755
48755-02121
Support, Rear Suspension
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP NO.1 |
48755-02121 |
— | ||
|
48755
|
48755
48755-02131
Support, Rear Suspension
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP NO.2 |
48755-02131 |
— | ||
|
90119W0209
|
90119W0209
90119-W0209
New Genuine Part
|
90119-W0209 |
— | ||
|
90119W0212
|
90119W0212
90119-W0212
New Genuine Part
|
90119-W0212 |
— | ||
|
90178W0018
|
90178W0018
90178-W0018
New Genuine Part
|
90178-W0018 |
— | ||
|
9011912393
|
9011912393
90119-12393 BOLT WWASHER |
90119-12393 |
US $4.32 |
||
|
9011914131
|
9011914131
90119-14131 BOLT WWASHER |
90119-14131 |
US $6.88 |
||
|
9017314004
|
9017314004
90173-14004 NUTSQUARE |
90173-14004 |
US $1.76 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
