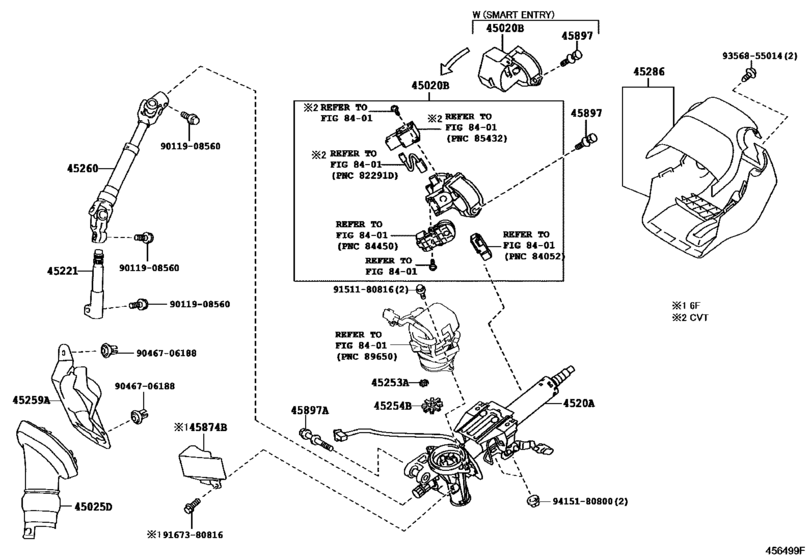

Steering Column & Shaft ([01.2014 - ] (1401- )SA) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4520A
|
4520A
4520A-02140
Column Sub-Assy, Electric Power Steering
[01.2014 - 03.2014] NDE180,NRE180,ZRE18#..SA |
4520A-02140 |
— | ||
| replacement | |||||
|
4520A
|
4520A
4520A-02143
Column Sub-Assy, Electric Power Steering
[01.2014 - 03.2014] NDE180,NRE180,ZRE18#..SA |
4520A-02143 |
— | ||
|
4520A
|
4520A
4520A-02141
Column Sub-Assy, Electric Power Steering
[04.2014 - 11.2014] NDE180,NRE180,ZRE18#..SA |
4520A-02141 |
— | ||
| replacement | |||||
|
4520A
|
4520A
4520A-02143
Column Sub-Assy, Electric Power Steering
[04.2014 - 11.2014] NDE180,NRE180,ZRE18#..SA |
4520A-02143 |
— | ||
|
4520A
|
4520A
4520A-02142
Column Sub-Assy, Electric Power Steering
[12.2014 - 08.2015] NDE180,NRE180,ZRE18#..SA |
4520A-02142 |
— | ||
| replacement | |||||
|
4520A
|
4520A
4520A-02143
Column Sub-Assy, Electric Power Steering
[12.2014 - 08.2015] NDE180,NRE180,ZRE18#..SA |
4520A-02143 |
— | ||
|
4520A
|
4520A
4520A-02143
Column Sub-Assy, Electric Power Steering
[09.2015 - 01.2017] NDE180,NRE180,ZRE18#..SA |
4520A-02143 |
— | ||
|
45020B
|
45020B
45020-02480
Actuator Assy, Steering Lock
[06.2013 - 04.2016] NDE180,NRE180,ZRE18#..6F..SAP |
45020-02480 |
— | ||
| replacement | |||||
|
45020B
|
45020B
45020-02760
Actuator Assy, Steering Lock
[06.2013 - 04.2016] NDE180,NRE180,ZRE18#..6F..SAP |
45020-02760 |
— | ||
|
45020B
|
45020B
45020-02760
Actuator Assy, Steering Lock
[05.2016 - 01.2017] NDE180,NRE180,ZRE18#..6F..SAP |
45020-02760 |
— | ||
|
45025D
|
45025D
45025-02080 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
45025-02080 |
US $38.88 |
||
|
45221
|
45221
45221-02100
Shaft, Steering Intermediate
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
45221-02100 |
— | ||
|
45253A
|
45253A
45253-28130 Spacer, Electric Power Steering Motor ShaftELECTRIC POWER STEERING MOTOR SHAFT [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
45253-28130 |
from US $1.60 |
||
|
45254B
|
45254B
45254-28040 Damper, Electric Power Steering Motor ShaftELECTRIC POWER STEERING MOTOR SHAFT [06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
45254-28040 |
from US $3.05 |
||
|
45259A
|
45259A
45259-02070 Sheet, Column Hole Cover SilencerCOLUMN HOLE COVER SILENCER [01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SA |
45259-02070 |
US $11.79 |
||
|
45260
|
45260
45260-02160
Shaft Assy, Steering Intermediate, No.2
[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
45260-02160 |
— | ||
|
45286
|
45286
45286-02946-C0
Cover, Steering Column
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
45286-02946-C0 |
— | ||
|
45874B
|
45874B
45874-02040
Protector, Steering Column, No.1
[01.2014 - 01.2017] NDE180,NRE180,ZRE18#..6F..SA |
45874-02040 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[01.2014 - 04.2016] NDE180,NRE180,ZRE18#..SAP |
45897-12020 |
from US $3.36 |
||
|
45897
|
45897
45897-12050 Bolt, Steering Lock SetSTEERING LOCK SET [05.2016 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
45897-12050 |
US $3.04 |
||
|
45897A
|
45897A
90119-10981 Bolt, Tilt Steering Pawl Set[06.2013 - 01.2017] NDE180,NRE180,ZRE18#..SAP |
90119-10981 |
from US $1.64 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.56 |
||
|
9151180816
|
9151180816
91511-80816 BOLTFLANGE |
91511-80816 |
US $1.44 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
