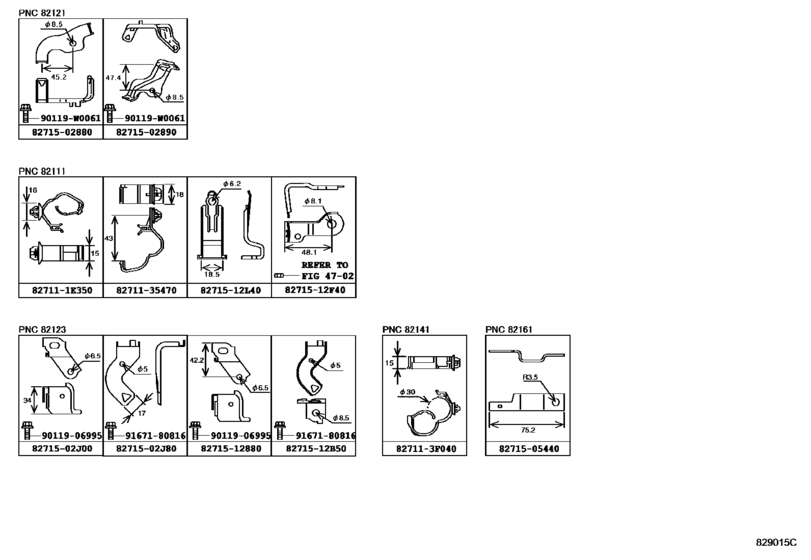

Wiring & Clamp ([06.2013 - ] CLAMP & BRACKET (1306- )) Diagram Toyota COROLLA
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- NDE180
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- PRODUCT
- SAP
- DESTINATION
- SA
- Model
- COROLLA
- From
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
90119W0061
|
90119W0061
90119-W0061 New Genuine Part |
90119-W0061 |
US $1.02 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
US $2.88 |
||
| replacement | |||||
|
827111E350
|
827111E350
82711-06050 Clamp, Door Scuff Plate, No.2 |
82711-06050 |
US $6.47 |
||
|
827113F040
|
827113F040
82711-3F040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3F040 |
from US $2.57 |
||
|
8271502J00
|
8271502J00
82715-02J00
Bracket,wiring Harness Clamp
|
82715-02J00 |
— | ||
|
8271502J80
|
8271502J80
82715-02J80
Bracket,wiring Harness Clamp
|
82715-02J80 |
— | ||
|
8271512B50
|
8271512B50
82715-12B50
Bracket,wiring Harness Clamp
|
82715-12B50 |
— | ||
|
8271512F40
|
8271512F40
82715-12F40
Bracket,wiring Harness Clamp
|
82715-12F40 |
— | ||
|
8271512L40
|
8271512L40
82715-12L40
Bracket,wiring Harness Clamp
|
82715-12L40 |
— | ||
|
8271135470
|
8271135470
82711-35470 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35470 |
US $3.52 |
||
|
8271502880
|
8271502880
82715-02880
Bracket,wiring Harness Clamp
|
82715-02880 |
— | ||
|
8271502890
|
8271502890
82715-02890
Bracket,wiring Harness Clamp
|
82715-02890 |
— | ||
|
8271505440
|
8271505440
82715-05440 Bracket, Wire Harness ClampWIRE HARNESS CLAMP |
82715-05440 |
US $2.62 |
||
|
8271512880
|
8271512880
82715-12880 Bracket,wiring Harness Clamp |
82715-12880 |
US $3.93 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $0.96 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.88 |
||
