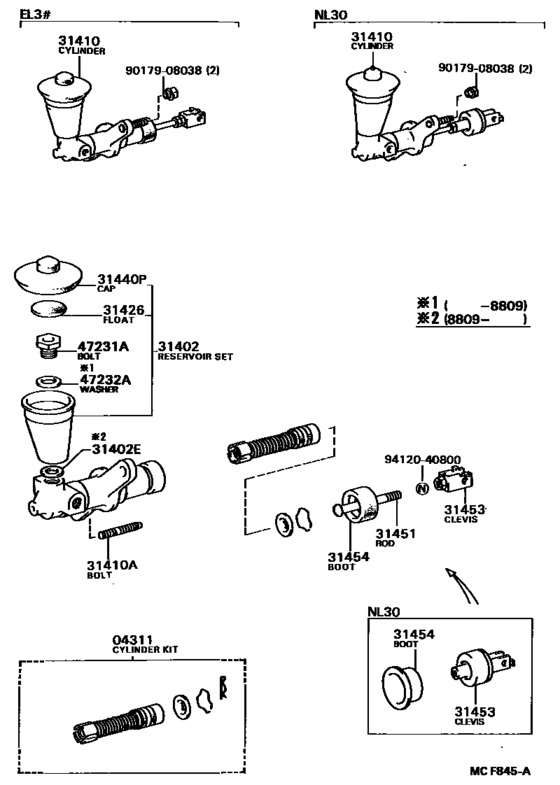

Clutch Master Cylinder ([05.1988 - ] (8805- )MTM) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- NL30
- grade
- GL
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-22050 Cylinder Kit, Clutch Master[05.1988 - 11.1988] EL3#,NL30..MTM |
04311-22050 |
from US $34.81 |
||
|
31402
|
31402
31402-30060 Reservoir Sub-Assy, Clutch Master Cylinder[05.1988 - 09.1988] EL3#,NL30..MTM |
31402-30060 |
US $26.21 |
||
| replacements | |||||
|
31402
|
31402
31402-30061
Reservoir Sub-Assy, Clutch Master Cylinder
[05.1988 - 09.1988] EL3#,NL30..MTM |
31402-30061 |
— | ||
|
31402
|
31402
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[05.1988 - 09.1988] EL3#,NL30..MTM |
47231-20010 |
US $4.08 |
||
|
31402
|
31402
31402-30061
Reservoir Sub-Assy, Clutch Master Cylinder
[09.1988 - 09.1990] EL3#,NL30..MTM |
31402-30061 |
— | ||
|
31402E
|
31402E
90562-18151
Ring(For Clutch Master Cylinder Reservoir)
[09.1988 - 09.1990] EL3#,NL30..MTM |
90562-18151 |
— | ||
|
31410
|
31410
31410-16022 Cylinder Assy, Clutch Master[05.1988 - 08.1988] NL30..5F |
31410-16022 |
US $170.35 |
||
| replacement | |||||
|
31410
|
31410
31410-16023 Cylinder Assy, Clutch Master[05.1988 - 08.1988] NL30..5F |
31410-16023 |
US $171.81 |
||
|
31410
|
31410
31410-16023 Cylinder Assy, Clutch Master[08.1988 - 09.1990] NL30..5F |
31410-16023 |
US $171.81 |
||
|
31410A
|
31410A
90116-08146 Bolt(For Clutch Master Cylinder Setting)[05.1988 - 09.1990] EL3#,NL30..MTM |
90116-08146 |
US $1.40 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[05.1988 - 09.1990] EL3#,NL30..MTM |
31426-30011 |
— | ||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[05.1988 - 09.1990] EL3#,NL30..MTM |
47230-20040 |
from US $9.36 |
||
|
31451
|
31451
31451-22070 Rod, Clutch Master Cylinder Push[05.1988 - 09.1990] NL30..5F |
31451-22070 |
US $126.06 |
||
|
31453
|
31453
31404-16011 Clevis, Clutch Master Cylinder Push Rod[05.1988 - 04.1989] NL30..5F |
31404-16011 |
US $46.45 |
||
| replacement | |||||
|
31453
|
31453
31404-35030 Clevis, Clutch Master Cylinder Push Rod[05.1988 - 04.1989] NL30..5F |
31404-35030 |
US $37.56 |
||
|
31453
|
31453
31404-16012 Clevis, Clutch Master Cylinder Push Rod[04.1989 - 09.1990] NL30..5F |
31404-16012 |
US $46.01 |
||
| replacement | |||||
|
31453
|
31453
31404-35030 Clevis, Clutch Master Cylinder Push Rod[04.1989 - 09.1990] NL30..5F |
31404-35030 |
US $37.56 |
||
|
31454
|
31454
31454-24010 Boot, Clutch Master Cylinder[05.1988 - 09.1990] NL30..5F |
31454-24010 |
US $3.32 |
||
|
47231A
|
47231A
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[09.1988 - 09.1990] EL3#,NL30..MTM |
47231-20010 |
US $4.08 |
||
|
47231A
|
47231A
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[05.1988 - 09.1988] EL3#,NL30..MTM |
47231-30010 |
US $4.48 |
||
|
47232A
|
47232A
47232-30010 Washer, Reservoir Set Bolt[05.1988 - 09.1988] EL3#,NL30..MTM |
47232-30010 |
US $3.52 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
