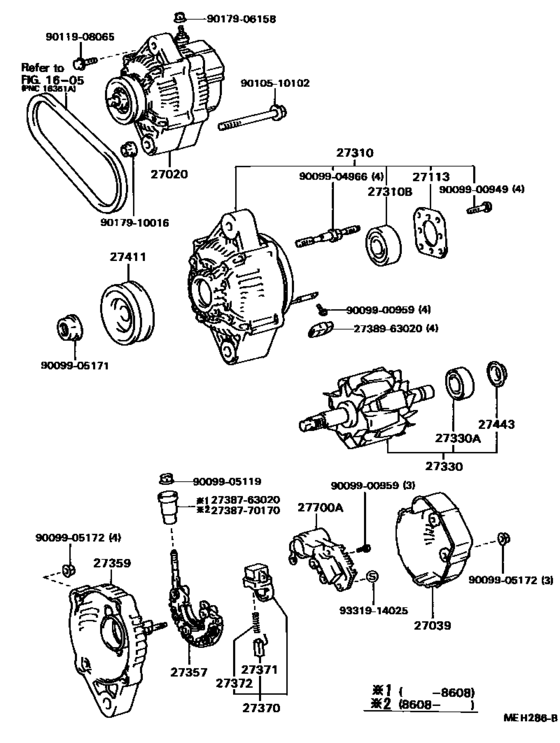

Alternator ([05.1986 - ] (8605- )1NT) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-55010
Alternator Assy
[05.1986 - 08.1986] 1NT..NL30 １２Ｖ ６０Ａ,12V 60A |
27060-55010 |
— | ||
|
27020
|
27020
27060-55011 Alternator Assy[08.1986 - 05.1988] 1NT..NL30 １２Ｖ ６０Ａ,12V 60A |
27060-55011 |
US $1,368.64 |
||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27039-15171 |
— | ||
|
27113
|
27113
27312-72100 Plate, Bearing Retainer, Alternator[05.1986 - 02.1988] 3E#,1NT..EL31,NL30 12V 55A,60A |
27312-72100 |
US $3.92 |
||
|
27310
|
27310
27310-16011
Frame Assy, Drive End, Alternator
[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27310-16011 |
— | ||
|
27310B
|
27310B
90099-10159
Bearing(For Alternator Drive End Frame)
[05.1986 - 02.1988] 3E#,1NT..EL31,NL30 12V 55A,60A |
90099-10159 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[05.1986 - 02.1988] 3E#,1NT..EL31,NL30 12V 55A,60A |
90099-10199 |
from US $19.39 |
||
|
27330
|
27330
27330-72100
Rotor Assy, Alternator
[05.1986 - 09.1987] 1NT..NL30 12V 60A |
27330-72100 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[05.1986 - 09.1987] 1NT..NL30 12V 60A |
27330-72101 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[09.1987 - 05.1988] 1NT..NL30 12V 60A |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[05.1986 - 05.1988] 3E#,1NT..EL31,NL30 12V 55A,60A |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-16011
Frame, Alternator Rectifier End
[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27359-16011 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16012
Frame, Alternator Rectifier End
[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27359-16012 |
— | ||
|
27359
|
27359
27384-16380
Washer
[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27384-16380 |
— | ||
|
27370
|
27370
27370-16011
Holder Assy, Alternator Brush
[05.1986 - 05.1988] 2E,3E#,1NT..EL3#,NL30 12V 45A,55A,60A,70A |
27370-16011 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[05.1986 - 05.1988] 2E,3E#,1NT..EL3#,NL30 12V 45A,55A,60A,70A |
27370-58320 |
from US $17.53 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[05.1986 - 05.1988] 2E,3E#,1NT..EL3#,NL30 12V 45A,55A,60A,70A |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[05.1986 - 05.1988] 2E,3E#,1NT..EL3#,NL30 12V 45A,55A,60A,70A |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[05.1986 - 05.1988] 2E,3E#,1NT..EL3#,NL30 12V 45A,55A,60A,70A |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[05.1986 - 05.1988] 2E,3E#,1NT..EL3#,NL30 12V 45A,55A,60A,70A |
27372-87501 |
— | ||
|
27411
|
27411
27411-55010
Pulley, Alternator
[05.1986 - 05.1988] 1NT..NL30 12V 60A |
27411-55010 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[05.1986 - 05.1988] 2E,3E#,1NT..EL3#,NL30 12V 45A,55A,60A |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[05.1986 - 02.1988] 3E#,1NT..EL31,NL30 12V 55A,60A |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[05.1986 - 02.1988] 3E#,1NT..EL31,NL30 12V 55A,60A |
27700-70030 |
US $263.54 |
||
|
2738763020
|
2738763020
27387-63020
Insulator, Terminal
|
27387-63020 |
— | ||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510102
|
9010510102
90105-10102 BOLT |
90105-10102 |
US $4.02 |
||
|
9011908065
|
9011908065
90119-08065 New Genuine Part |
90119-08065 |
US $1.89 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
